16.2.1 Local Info
On this page you can see all ports' configuration and system information.
Choose the menu LLDP→Device Info→Local Info to load the following page.

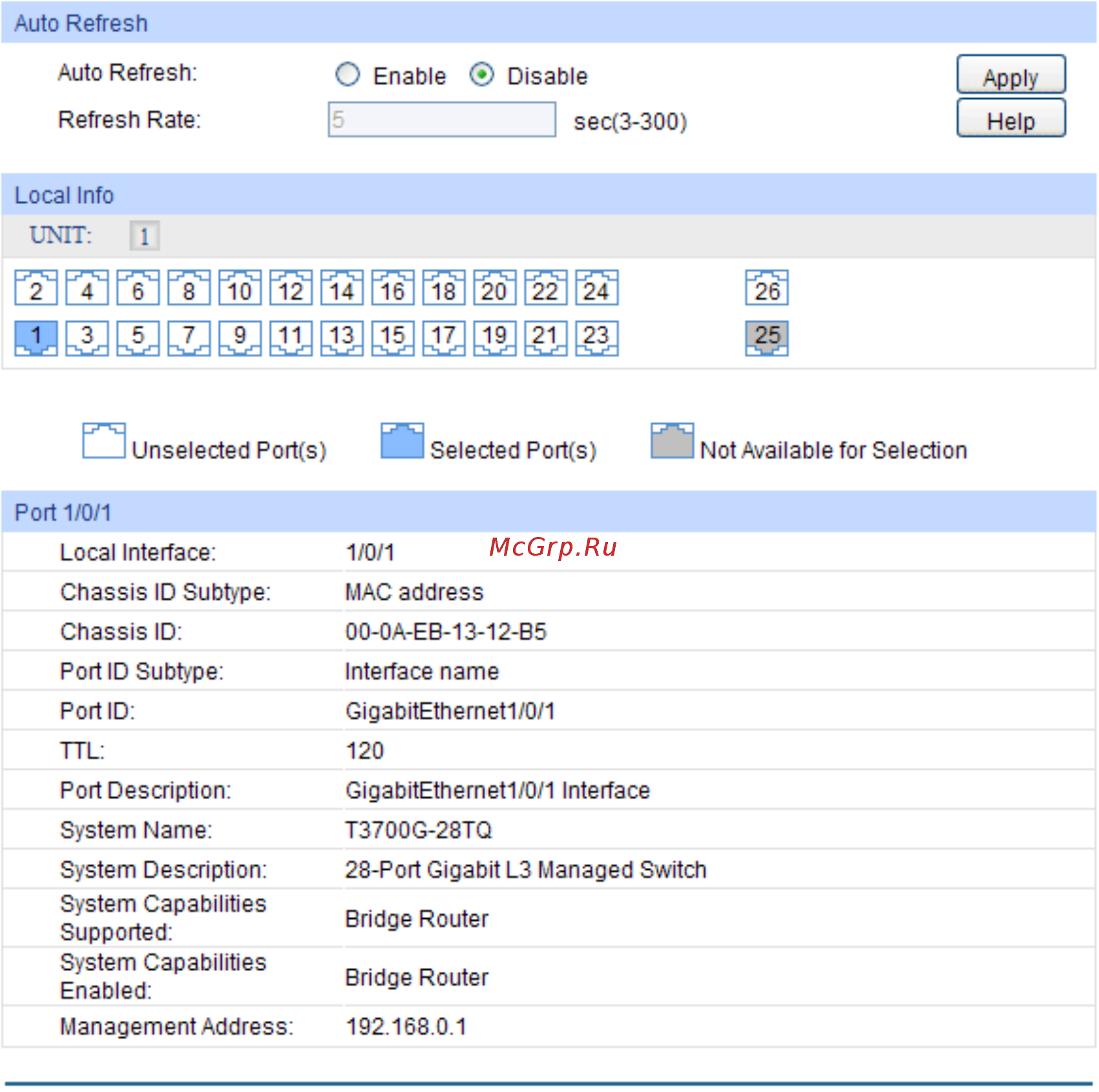

Figure 16-3 Local Information
The following entries are displayed on this screen:
Auto Refresh
Auto Refresh: Enable/Disable the auto refresh function.
Refresh Rate: Configure the auto refresh rate.
Local Info
Select the desired port to display the information of the corresponding port.
UNIT: Select the unit ID of the desired member in the stack.
Local Interface: Displays the local port number.
