The multicast messages (such as C-RP Hello Message and BSR BootStrap Message) of each

BSR administrative domain cannot pass through the domain border.

11.4.1 PIM SM Interface

Choose the menu Multicast Routing→PIM SM→PIM SM Interface to load the following page.

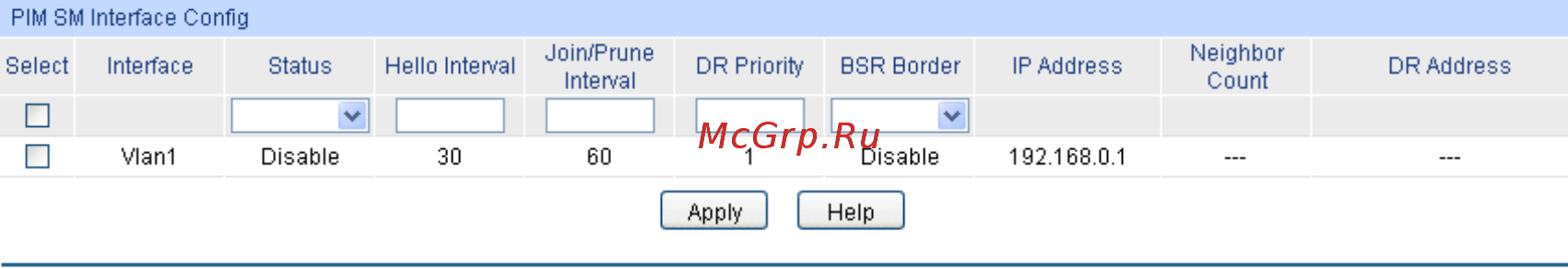

Figure11-20 PIM SM Interface

The following entries are displayed on this screen:



PIM SM Interface Config

The L3 interfaces can be configured as PIM SM mode by this page.

Select: Select the desired interface to configure.

Interface: Displays the VLAN interface which you can configure.

Status: Select to enable or disable PIM SM function on the interface.

Hello Interval: Specify the rate (time in sec

onds) at which PIM hello

messages are transmitted from the selected interface. The

valid value ranges from 1 to 18725 seconds

and the default is

30 seconds.

Join/Prune Interval:

Specify the frequency at which PIM Join/Prune messages are

transmitted on thi

s PIM interface. The valid value range from 1

to 18724 seconds and the default value is 60 seconds.

DR Priority:

Specify the DR priority for the selected interface. The valid

value range from 0 to 4294967294. The default value is 1.

BSR Border: Select to

enable or disable the BSR border to define a PIM

bootstrap message boundary for the PIM domain.

IP Address: Displays the IP address of the interface.

Neighbor Count: Displays the number of PIM neighbors of this interface.

DR Address Displays the DR address of the interface.
