Tp-Link T3700G-28TQ V1 [388/415] Remote log

376

Log File:

Indicates the flash sector for saving system log. The inforamtion

in the log file will not be lost after the switch is restarted and can

be exported on the Backup Log page.

Severity:

Specify the severity level of the log information output to each

channel. Only the log with the same or smaller severity level

value will be output.

Status:

Enable/Disable the channel.

Sync

-Periodic Specify how frequen

t the log information would be synchronized

to the log file.

18.2.3 Remote Log

Remote log feature enables the switch to send system logs to the Log Server. Log Server is to

centralize the system logs from various devices for the administrator to monitor and manage the

whole network.

Choose the menu Maintenance→Log→Remote Log to load the following page.

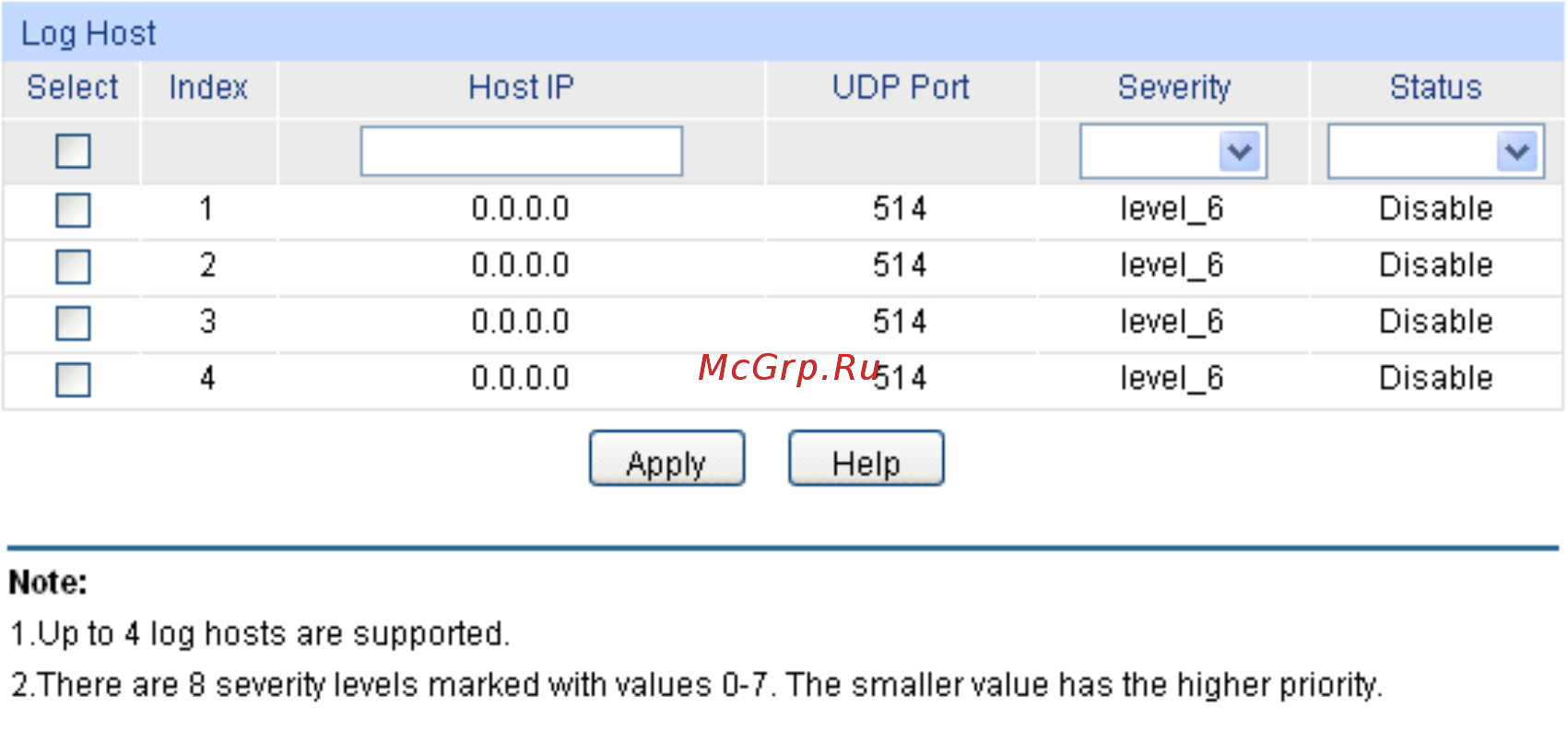

Figure18-5 Log Host

The following entries are displayed on this screen:



Log Host

Index:

Displays the index of the log host. The switch supports 4 log

hosts.

Host

IP: Configure the IP for the log host.

UDP Port:

Displays the UDP port used for receiving/sending log

information. Here we use the standard port 514.

Severity:

Specify the severity level of the log information sent to each log

host. Only the log with the same or smaller severity level value

will be sent to the corresponding log host.

Status:

Enable/Disable the log host.
