201

Cost:

Displays the path cost to the address range and it can be

modified.

Advertise: Displays the Advertise parameter and it can be modified.

10.9.7 Virtual Link

Choose the menu Routing→OSPF→Virtual Link to load the following page.

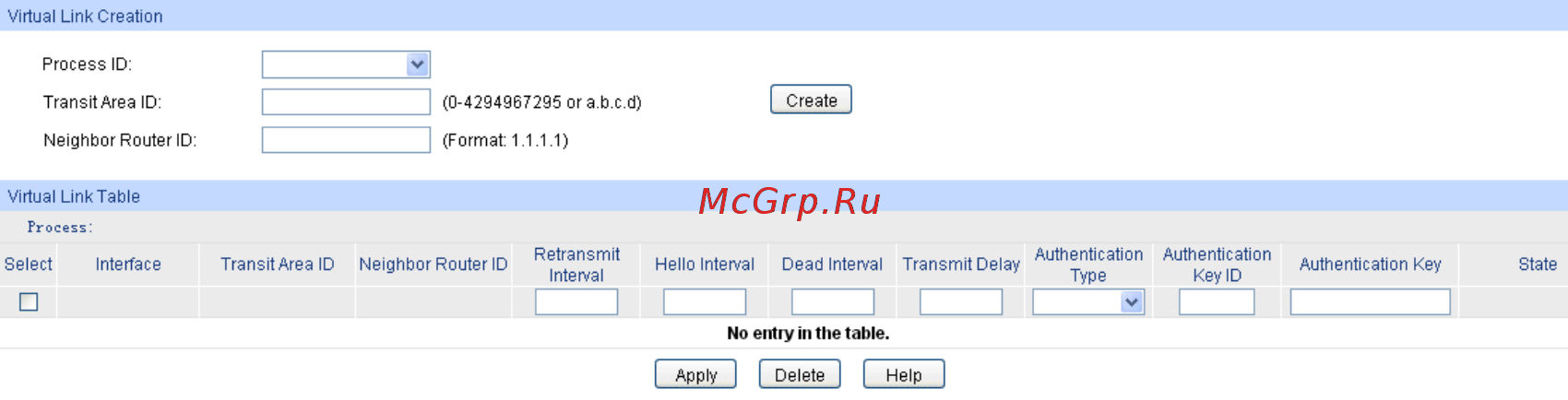

Figure10-52 Virtual Link

The following entries are displayed on this screen:



Virtual Link Creation

Process ID: Select the desired OSPF process for configuration.

Transit Area ID:

The ID of the transit area. Virtual links can be configured

between any pair of area border routers having interfaces to a

common (non-

backbone) area. Here the common area is

named Transit Area.

Neighbor Router ID: The router ID of the neighbor portion of a virtual link.



Virtual Link Table

Select: Select the desired item for configuration. It is multi-optional.

Interface:

Displays the virtual interface. When you create a virtual link,

actually a virtual interface is created.

Transit Area ID: Displays the transit area ID of the virtual link.

Neighbor Router ID: Displays the neighbor router ID of the virtual link.

Retransmit Interval: The retransmit interval for the specified interface.

This is the

number of seconds between link-

state advertisements for

adjacencies belonging to this router interface. This value is

also used when retransmitting database descriptions and

link-

state request packets. The valid value ranges from 1 to

65535 seconds and the default is 5 seconds.

Hello Interval:

The hello interval for the specified interface in seconds. This

parameter must be the same for all routers attached to a

network. The valid value ranges from 1 to 65535 seconds and

the default is 10 seconds.
