4.3.3 Config Backup
On this page you can download the current configuration of the specified unit in the stack and save
it as a file to your computer for your future configuration restore.
Choose the menu System → System Tools → Config Backup to load the following page.

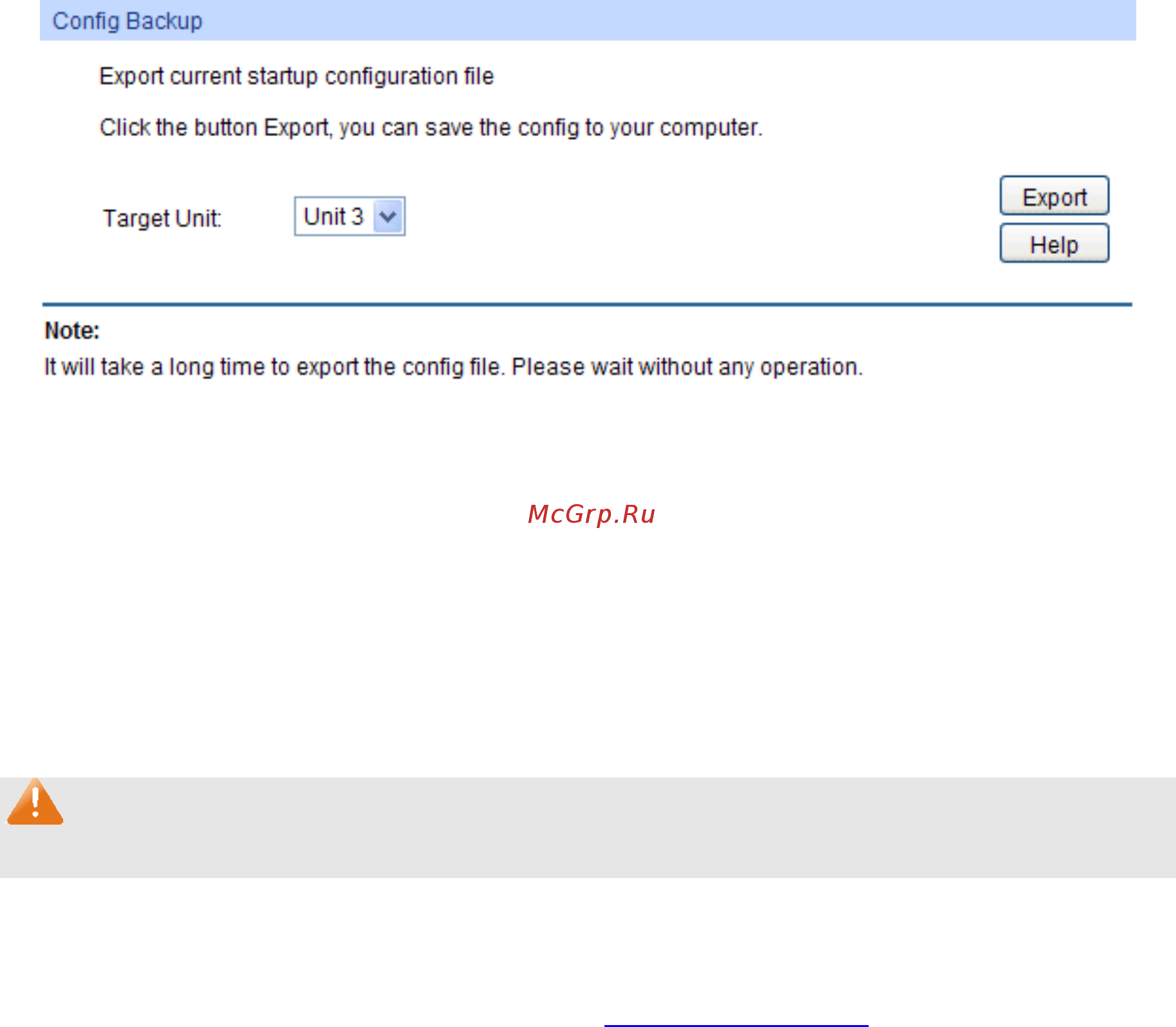

Figure 4-11 Config Backup
The following entries are displayed on this screen:
Config Backup
Target Unit: Select the desired unit in the stack to backup its configuration file.
Export: Click the Export
button to save the current configuration as a file
to your computer. You are suggested to take this measure before
upgrading.
Note:
It will take a few minutes to backup the configuration. Please wait without any operation.
4.3.4 Firmware Upgrade
The switch system can be upgraded via the Web management page. To upgrade the system is to
get more functions and better performance. Go to http://www.tp-link.com to download the updated
firmware.
