11.1.2 Mroute Table

On this page you can get the desired mroute information through different search options.

Choose the menu Multicast Routing→Global Config→Mroute Table to load the following page.

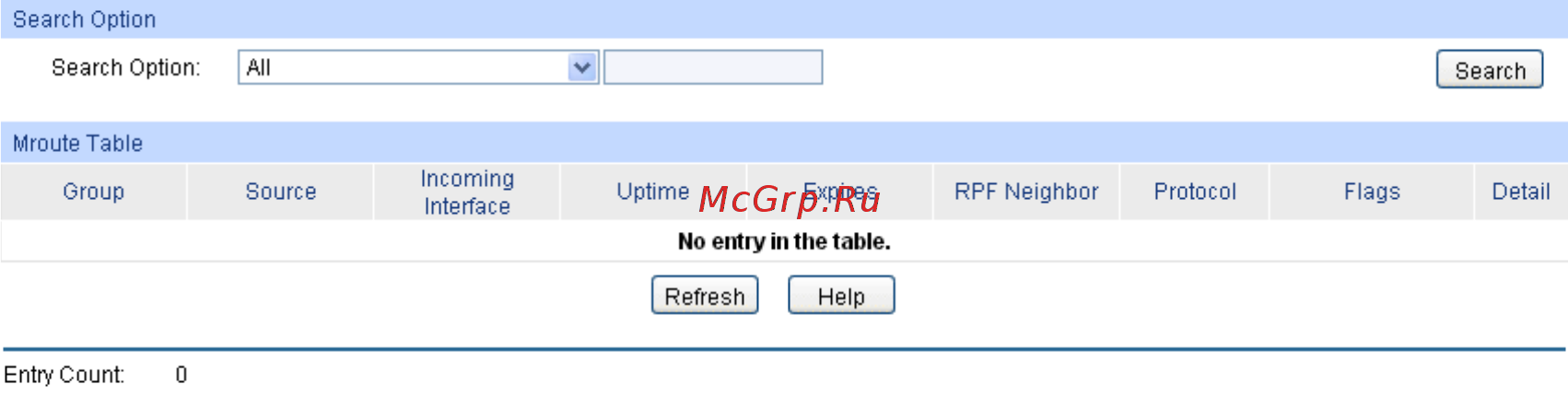

Figure 11-2 Mroute Table

The following entries are displayed on this screen:



Search Option

All: Select All to display all entries.

Group: Select Group and enter the group of desired entry.

Source: Select Source and enter the source of desired entry.

Incoming Interface:

Select Incoming Interface and enter the incoming interface of

desired entry.



Mroute Table

Group: The destination group IP address.

Source:

The IP address of the multicast packet source to be combined

with the Group IP to fully identify a single route whose Mroute

table entry.

Incoming Interface:

The incoming interface on which multicast packets for this

source/group arrive.

Uptime: The time in seconds since the entry was created.

Expires:

The time in seconds before this entry will age out and be

removed from the table.

RPF Neighbor: The IP address of the Reverse Path Forwarding neighbor.

Protocol: The multicast

routing protocol which created this entry. The

possibilities are PIM DM and PIM SM.

Flags: The value displayed in this field is valid if the multicast

routing

protocol running is PIM

SM. The possible values are RPT or

SPT. For other protocols an "------" is displayed.

Detail: Displays the detailed information of the mroute entries.

Outgoing Interface:

Displays the outgoing interfaces on which multicast packets

for this source/group are forwarded.
