9.1.3 VLAN Config

Multicast groups established by IGMP Snooping are based on VLANs. On this page you can

configure different IGMP parameters for different VLANs.

Choose the menu Multicast→IGMP Snooping→VLAN Config to load the following page.

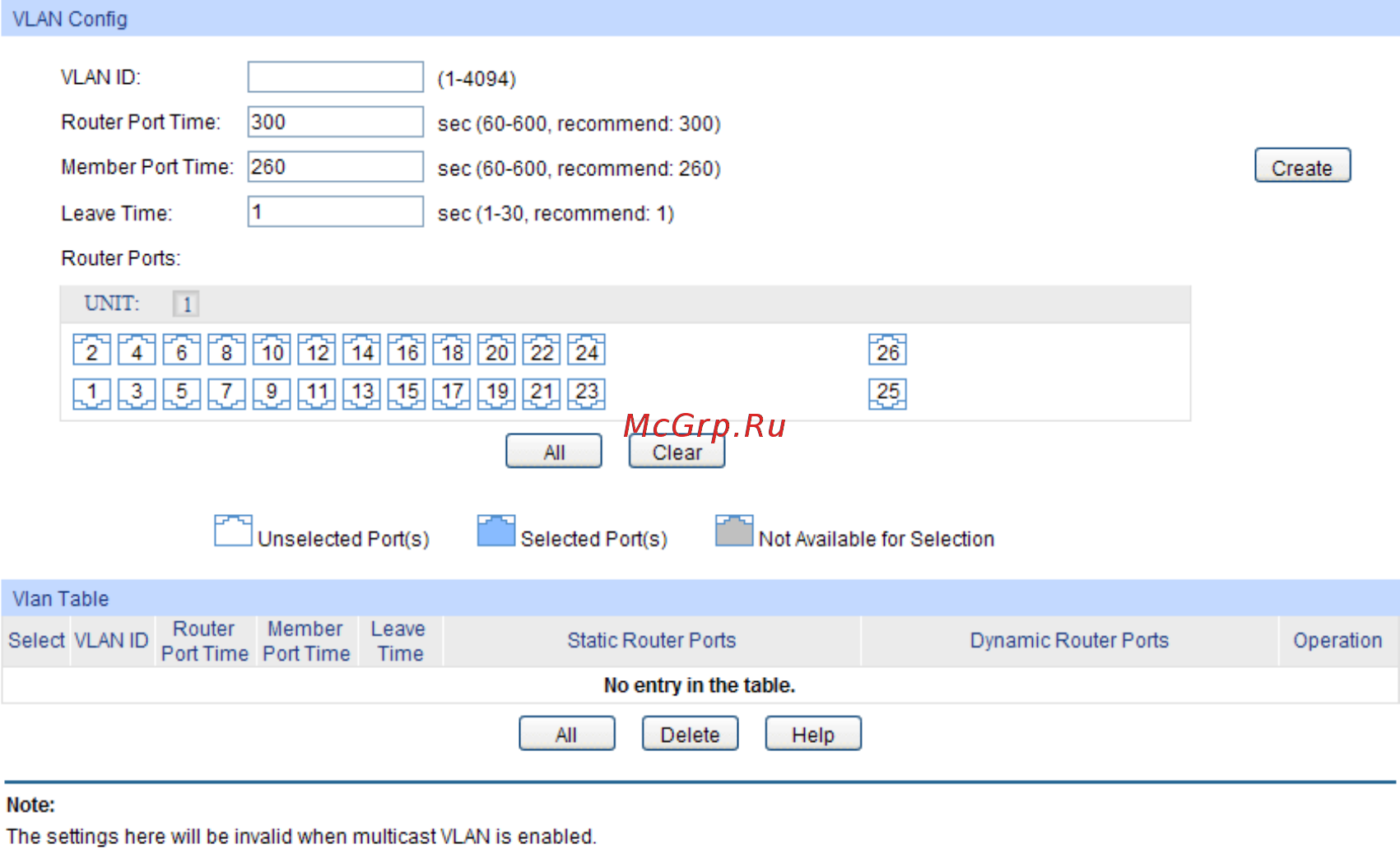

Figure 9-6 VLAN Config

The following entries are displayed on this screen:



VLAN Config

VLAN ID: Enter the VLAN ID to enable IGMP Snooping for the desired

VLAN.

Router Port Time: Specify the aging time of the router port. Within this time, if the

switch doesn’t receive IGMP query message from the router port,

it will consider this port is not a router port any more.

Member Port Time: Specify the aging time of the member port. Within this time, if the

switch doesn’t receive IGMP report message from the member

port, it will consider this port is not a member port any more.

Leave Time:

Specify the interval between the switch receiving a leave

message from a host and the switch removing the host from the

multicast groups.

Router Ports: Enter the static router port which is mainly used in the network

with stable topology.

UN IT: Select the unit ID of the desired member in the stack.



VLAN Table

Select: Select the desired VLAN ID for configuration. It is multi-optional.

VLAN ID: Displays the VLAN ID.
