203

Source:

The available source routes for redistribution by OSPF. The

valid values are 'Static', 'RIP', and other OSPF processes.

Redistribute: This op

tion enables or disables the redistribution for the

selected source protocol.

Metric:

Set the metric value to be used as the metric of redistributed

routes. The valid value ranges from 1 to 16777214 and the

default is equal to Default Metric configured on Basic page.

Metric Type:

Set the OSPF metric type of redistributed routes. The default

is External Type 2.

Tag:

Set the tag field in routes redistributed. The valid value ranges

from 0 to 4294967295 and the default is 0.

NSSA Only: Set whether or not t

o limit redistributed routes to NSSA areas.

The default is Disable.

10.9.9 ASBR Aggregation

You can configure address ranges for an ASBR on this page. The address range is used to

consolidate or summarize routes for external routes at an autonomous boundary. The result is that

a single summarized external route is redistributed to OSPF domain by the ASBR.

Choose the menu Routing→OSPF→ASBR Aggregation to load the following page.

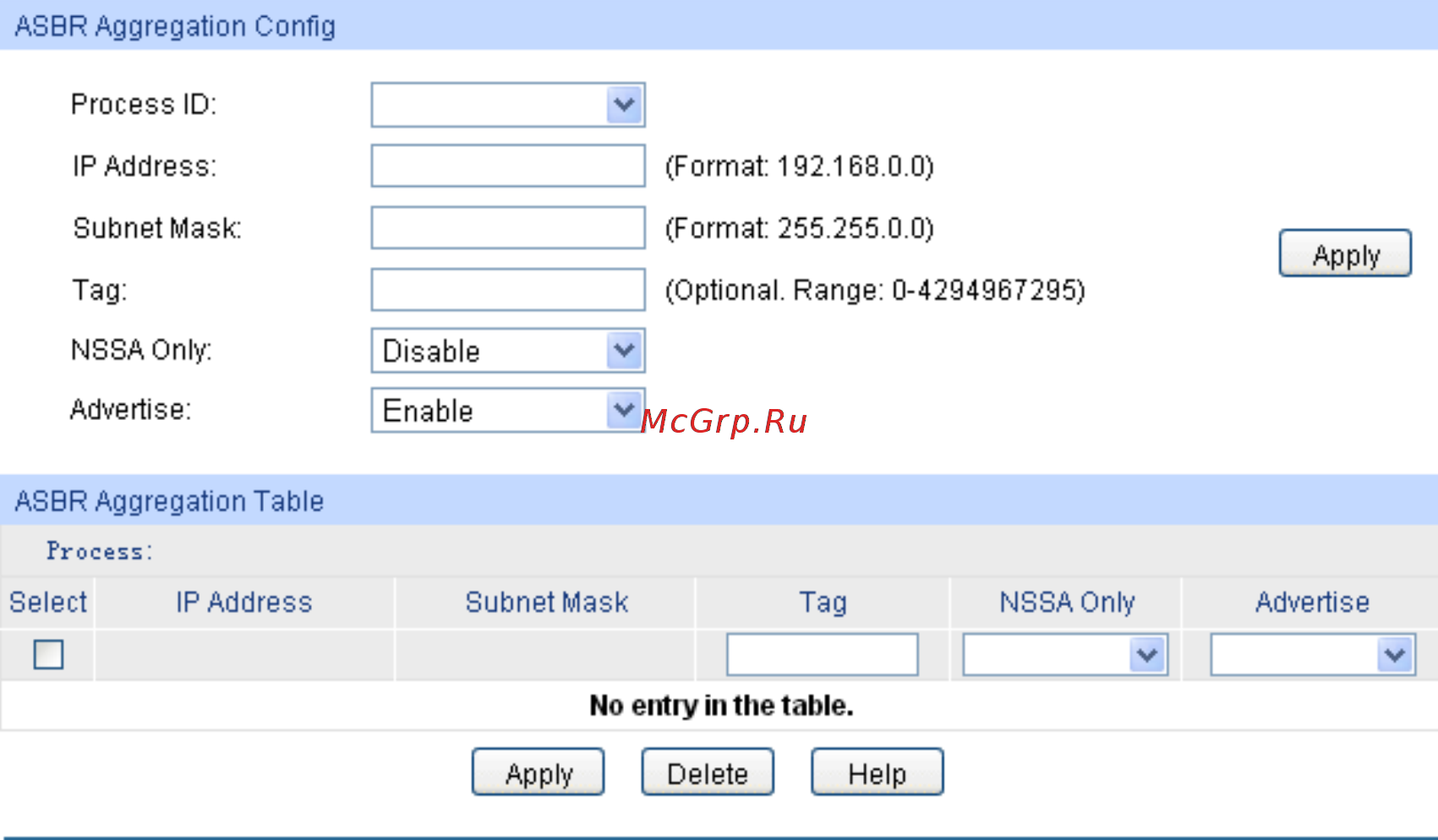

Figure10-54 ASBR Aggregation

The following entries are displayed on this screen:



ASBR Aggregation Config

Process ID: Select the desired OSPF process for configuration.

IP Address: The IP address of the address range.

Subnet Mask: The subnet mask of the address range.
