287

S-Condition: Select S-

Condition to limit the transmission rate of the data packets in

the policy.

 Rate: Specify the forwarding rate of the data packets those ma

tch

the corresponding ACL.

 Out of Band:

Specify the disposal way of the data packets those

are transmitted beyond the rate.

Redirect:

Select Redirect to change the forwarding direction of the data packets

in the policy.

 Destination Port: Forward the data

packets those match the

corresponding ACL to the specific port.

QoS Remark:

Select QoS Remark to forward the data packets based on the QoS

settings.

 DSCP:

Specify the DSCP region for the data packets those match

the corresponding ACL.

 Local Priority: Spec

ify the local priority for the data packets those

match the corresponding ACL.

13.4 Policy Binding

Policy Binding function can have the policy take its effect on a specific port/VLAN. The policy will

take effect only when it is bound to a port/VLAN. In the same way, the port/VLAN will receive the

data packets and process them based on the policy only when the policy is bound to the

port/VLAN.

The Policy Binding can be implemented on Binding Table, Port Binding and VLAN Binding

pages.

13.4.1 Binding Table

On this page view the policy bound to port/VLAN.

Choose the menu ACL→Policy Binding→Binding Table to load the following page.

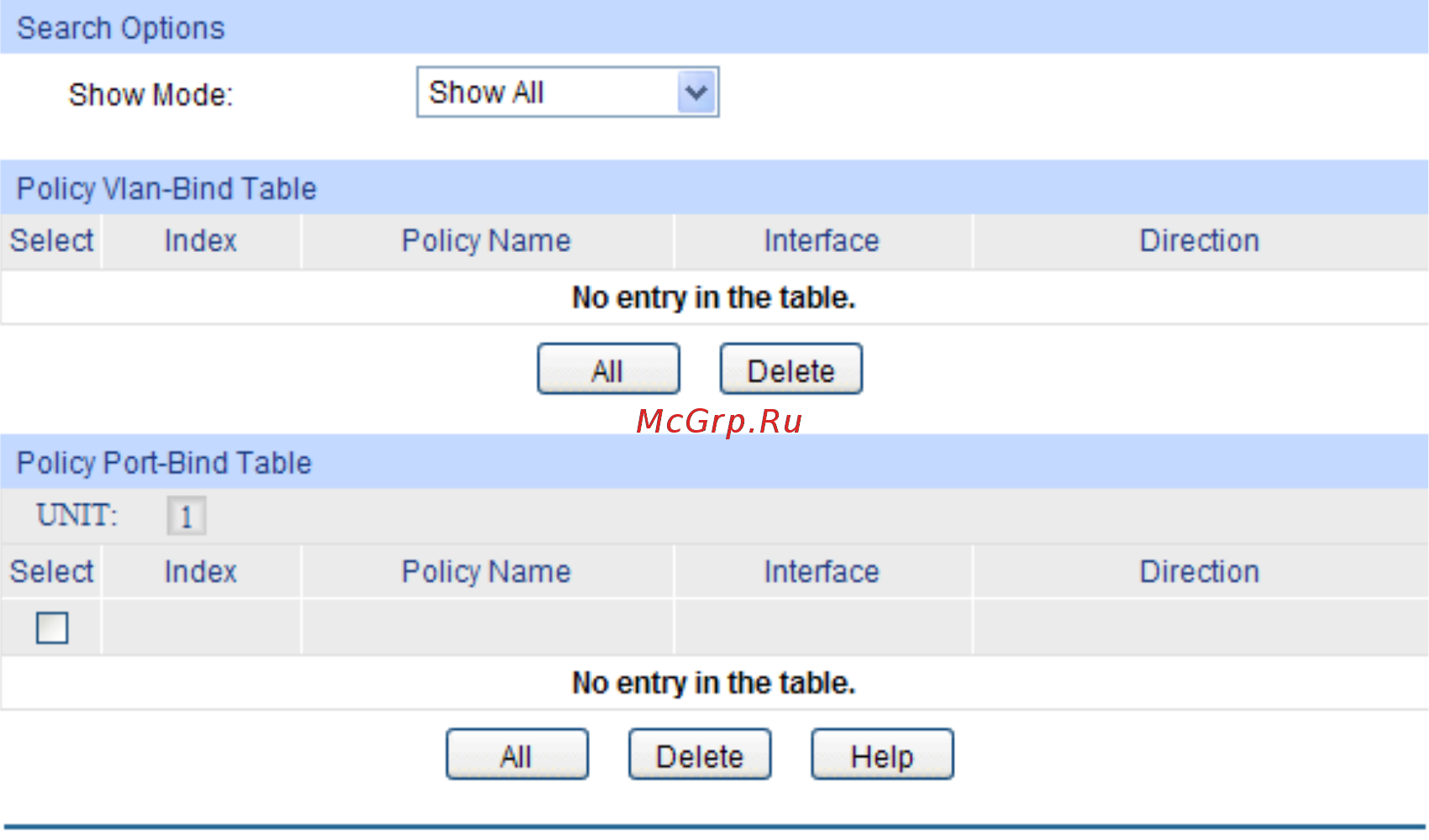

Figure13-12 Binding Table
