172

Choose the menu Routing→RIP→RIP Database to load the following page.

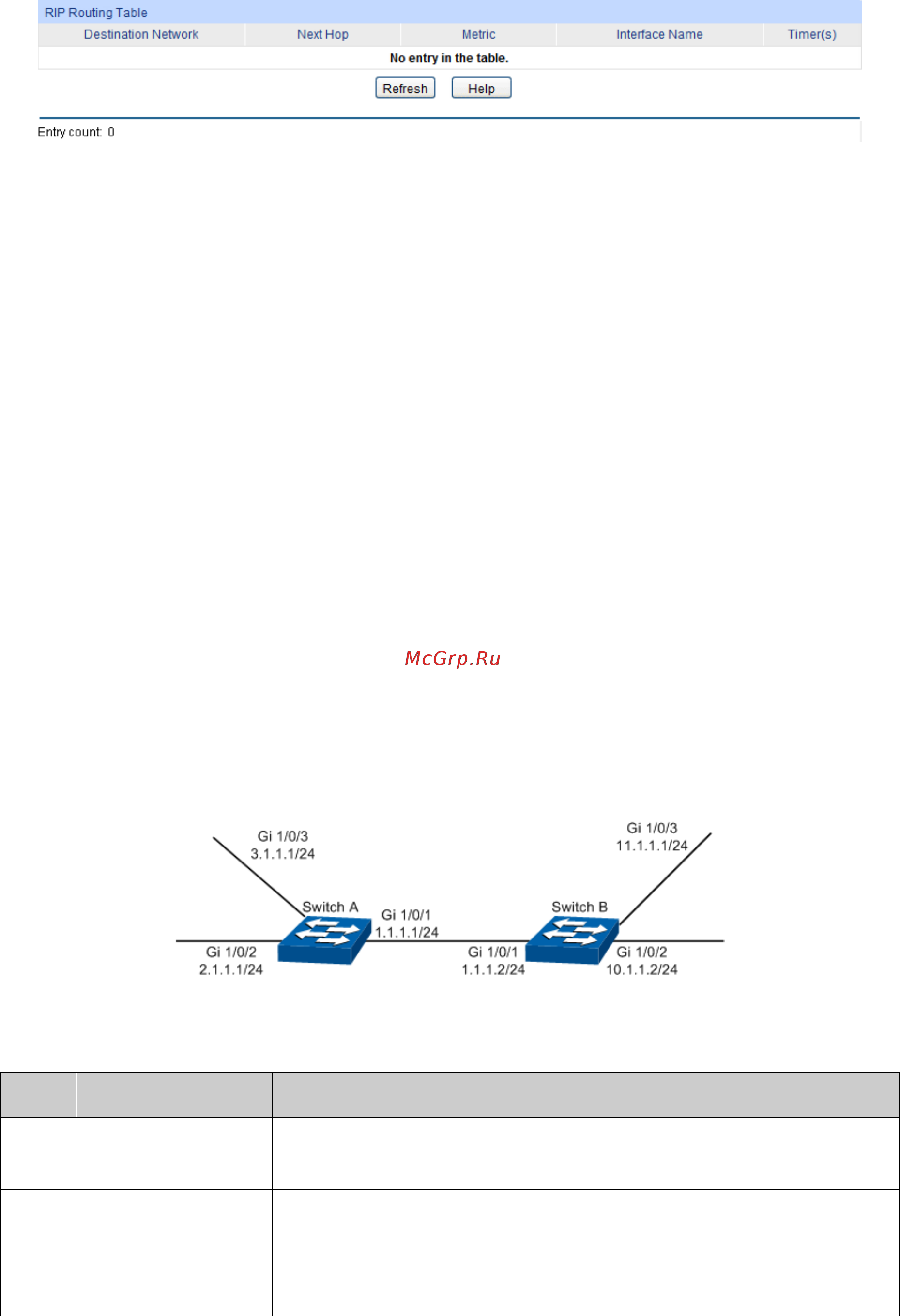

Figure 10-29 RIP Database

The following entries are displayed on this screen:



RIP Routing Table

Destination Network: The destination IP address and subnet mask.

Next Hop: The IP address of the next hop.

Metric: The metric to reach the destination IP address.

Interface: The gateway interface name.

Timer(s): The timer of the route entry. If the timeout timer expires,

the

route entry metric will be set to infinity and the destination

would be unreachable.

10.8.4 Application Example for RIP

 Network Requirements

 IP addresses of Switch A's three interfaces are 1.1.1.1/24, 2.1.1.1/24, 3.1.1.1/24 respectively.

IP addresses of Switch B's three interfaces are 1.1.1.2/24, 10.1.1.1/24, 11.1.1.1/24

respectively.

 RIP is required to be enabled in all interfaces of Switch A and B. Network shall be

interconnected between Switch A and B with the use of RIPv2.

 Network Diagram

 Configuration Procedure

 Configure Switch A

Step Operation Note

Enable RIP Required. On page Routing→RIP→Basic Config

, enable RIP,

select RIPv2 as RIP version.

Enable the network

segments where

the interfaces are

located

Required. On page Routing→RIP→Basic Config Network Enable

part, add network segments 1.1.1.0, 2.1.1.0, 3.1.1.0, and enable

RIP in the

se network segments. These network segments will be

displayed in RIP Network List after they are successfully added.
