Choose the menu LLDP→Basic Config→Global Config to load the following page.

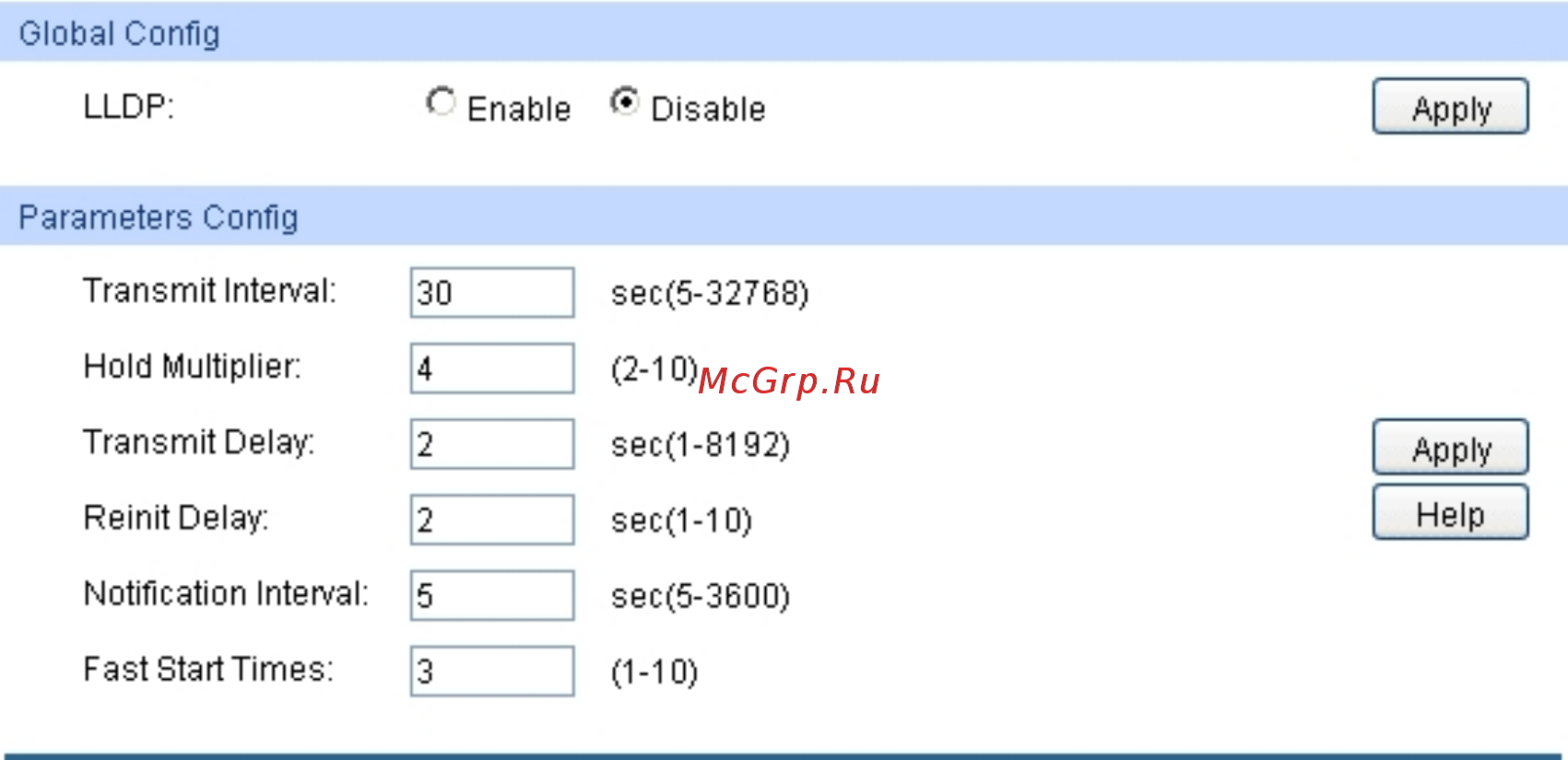

Figure 16-1 Global Configuration

The following entries are displayed on this screen:



Global Config

LLDP: Choose to enable/disable LLDP.



Parameters Config

Transmit Interval:

This parameter indicates the interval at which LLDP frames are

transmitted on behalf of this LLDP agent.

Hold Multiplier:

This parameter is a multiplier on the Transmit Interval that

determines the actual TTL

(Time To Live) value used in an

LLDPDU. TTL = Hold Multiplier * Transmit Interval.

Transmit Delay:

This parameter indicates the delay between successive LLDP

frame transmissions.

Reinit Delay:

This parameter indicates the amount of delay from LLDP becomes

"disable" until re-initialization will be attempted.

Notification Interval:

Configure the interval of Trap message which will be sent from

local device to network management system.

Fast Start Count: When the port's LLDP state transforms from Disable

(or Rx_Only)

to Tx&Rx

(or Tx_Only), the fast start mechanism will be enabled,

that is the transmit interval will be shorten to a second, and

multiple LLDP frames

will be sent out with the duration based on

this parameter.

16.1.2 Port Config

On this page you can configure all ports' LLDP parameters.
