Choose the menu Multicast Routing→IGMP→Multicast Group Table to load the following page.

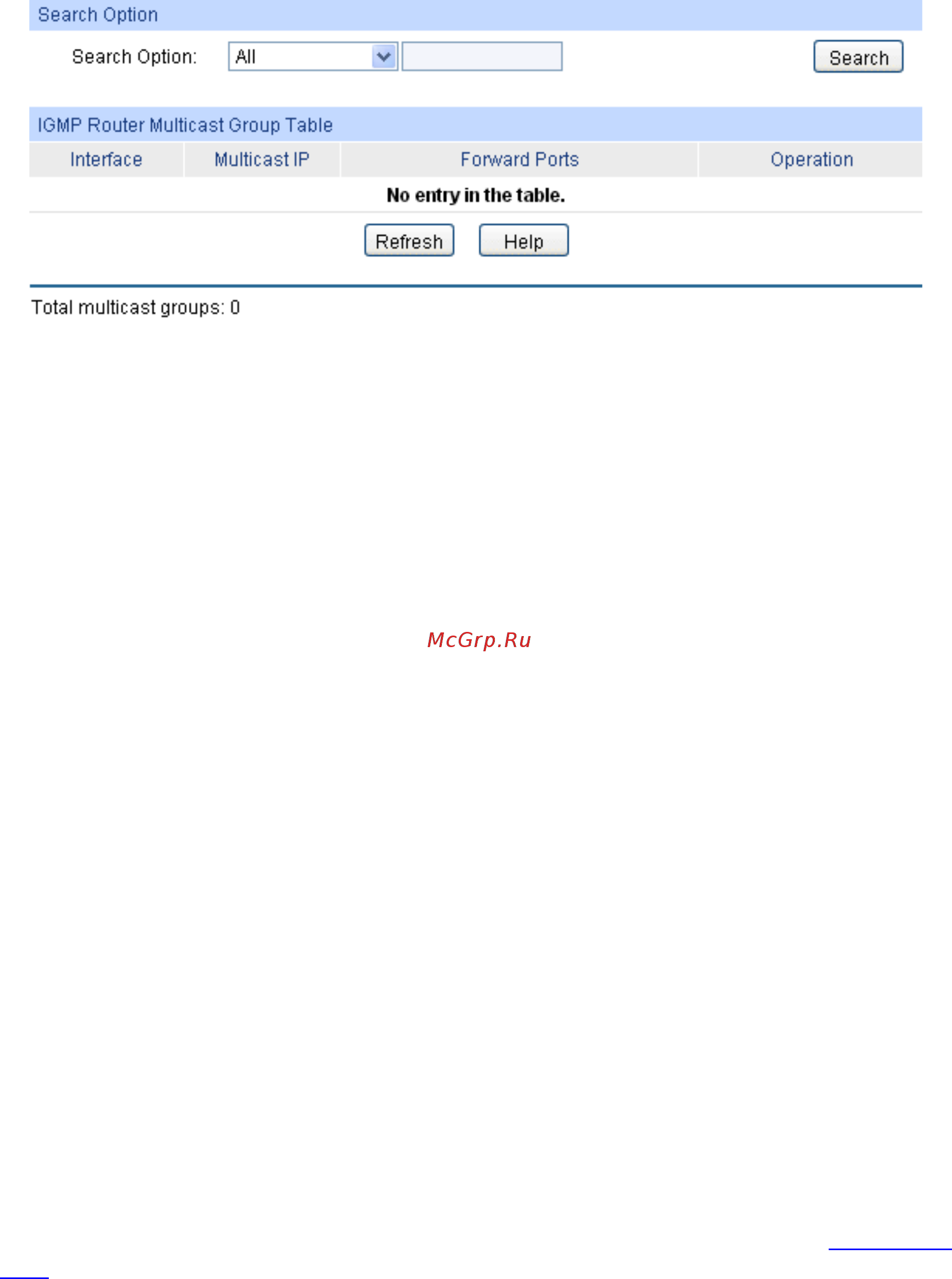

Figure 11-8 Multicast Group Table

The following entries are displayed on this screen:



Search Option

Search Option: Select the rules f

or displaying multicast IP table to find the

desired entries quickly.

 All: Displays all multicast IP entries.

Multicast IP: Enter the multicast IP address the desired

entry must carry.

 Interface VLAN

: Enter the VLAN ID the desired entry

must carry.

 Port: Enter the port the desired entry must carry.

 Routed Port:

Select the routed port the desired entry

must carry.



IGMP Router Multicast Group Table

Interface: Displays the VLAN ID the desired entry must carry.

Multicast IP: Displays the multicast IP address the desired entry must carry.

Forward Port: Displays the forward port of the multicast group.

Operation:

Click the Detail button to view the mode and source IP

address of the multicast group.

11.2.5 Profile Binding

When the switch receives IGMP report message, it examines the profile ID bound to the access

port to determine if the port can join the multicast group. If the multicast IP is not filtered, the switch

will add the port to the forward port list of the multicast group. Otherwise, the switch will drop the

IGMP report message. In that way, you can control the multicast groups that users can access.

The profile and binding relationship configurations are shared between this page and 9.4 Multicast

Filter.
