Tp-Link T3700G-28TQ V1 [382/415] Application example for cluster function
![Tp-Link T3700G-28TQ V1 [382/415] Application example for cluster function](/views2/1210078/page382/bg17e.png)
370
Step Operation Description
2
Enable the NTDP function
globally and for the port,
and then configure NTDP
parameters
Optional. On Cluster→NTDP→NTDP Config
page, enable
the NTDP function on the switch.
3 Manually collect NTDP
information
Optional. On Cluster→NTDP→Device Table page, click the
Collect Topology
button to manually collect NTDP
information.
Or
On Cluster→Cluster→Cluster Topology
page, click the
Collect Topology button to manually collect NTDP information.
4 Vie
w the detailed
information of other
switches in the cluster.
Optional. On Cluster→Cluster→Cluster Topology page,
double-
click the icon of the switch to view its detailed
information.
17.4 Application Example for Cluster Function
Network Requirements
Three switches form cluster, one commander switch and two member switches. The administrator
manages all the switches in the cluster via the commander switch.
Port 1 of the commander switch is connecting to the external network, port 2 is connecting to
member switch 1 and port 3 is connecting to member switch 2.
IP pool: 175.128.0.1, Mask: 255.255.255.0.
Network Diagram

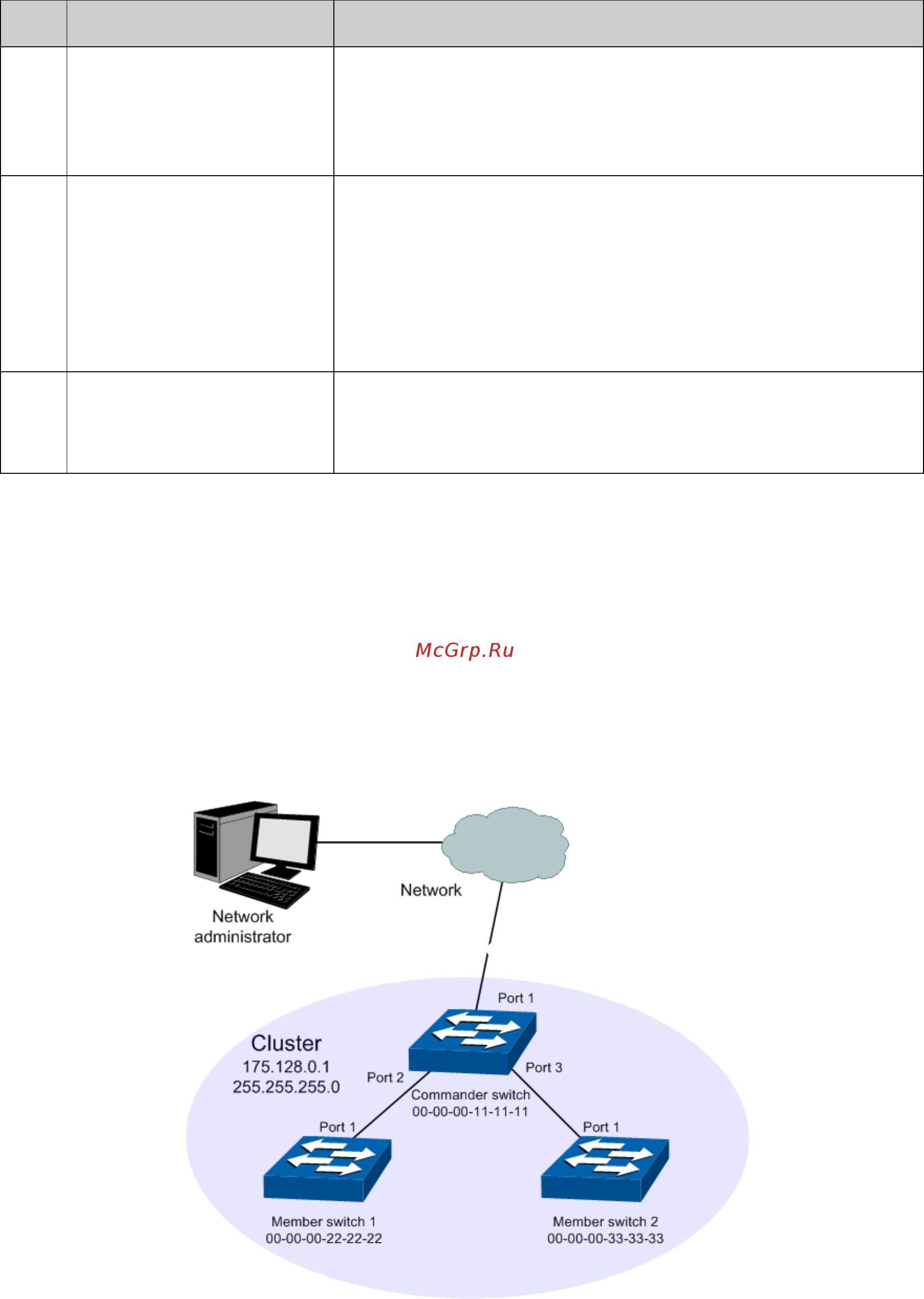

Figure17-19 Network diagram
