215

Description:

Enter the description associated with the VRRP. Numbers,

characters and '_' are the only valid inputs, and the maximal

length of the inputs is 8.

Priority:

Enter the Priority associated with the VRRP. It ranges from 1

to 254.

Advertise Timer:

Enter the advertise timer associated with the VRRP. It ranges

from 1 to 255.

Preempt Mode: Select Enable or disable the preempt Mode from the pull-

down

list. If you select Enable, a backup router will preempt the

master router if it has a priority greater than the master virtual

router's priority. The Preempt Mode is enabled by default.

Delay Time: Enter the delay time associated with the VRRP. It ranges

from

0 to 255.

Authentication:

Select the type of Authentication for the Virtual Router from the

pull-down list. The default is None.

 None: No authentication will be performed.



Simple: Authentication will be performed using a text

password.

 MD5: Authenti

cation of MD5 will be performed using a

text password.

Key:

If you select Simple or MD5 as authentication mode, enter the

key.

Apply: Click the button to submit the modified configuration.

10.10.3 Virtual IP Config

You can configure virtual IP for the virtual routers on this page. A virtual IP, which must be in the

subnet of an interface corresponding with the virtual router, can be added, deleted and

modified for the special virtual router.

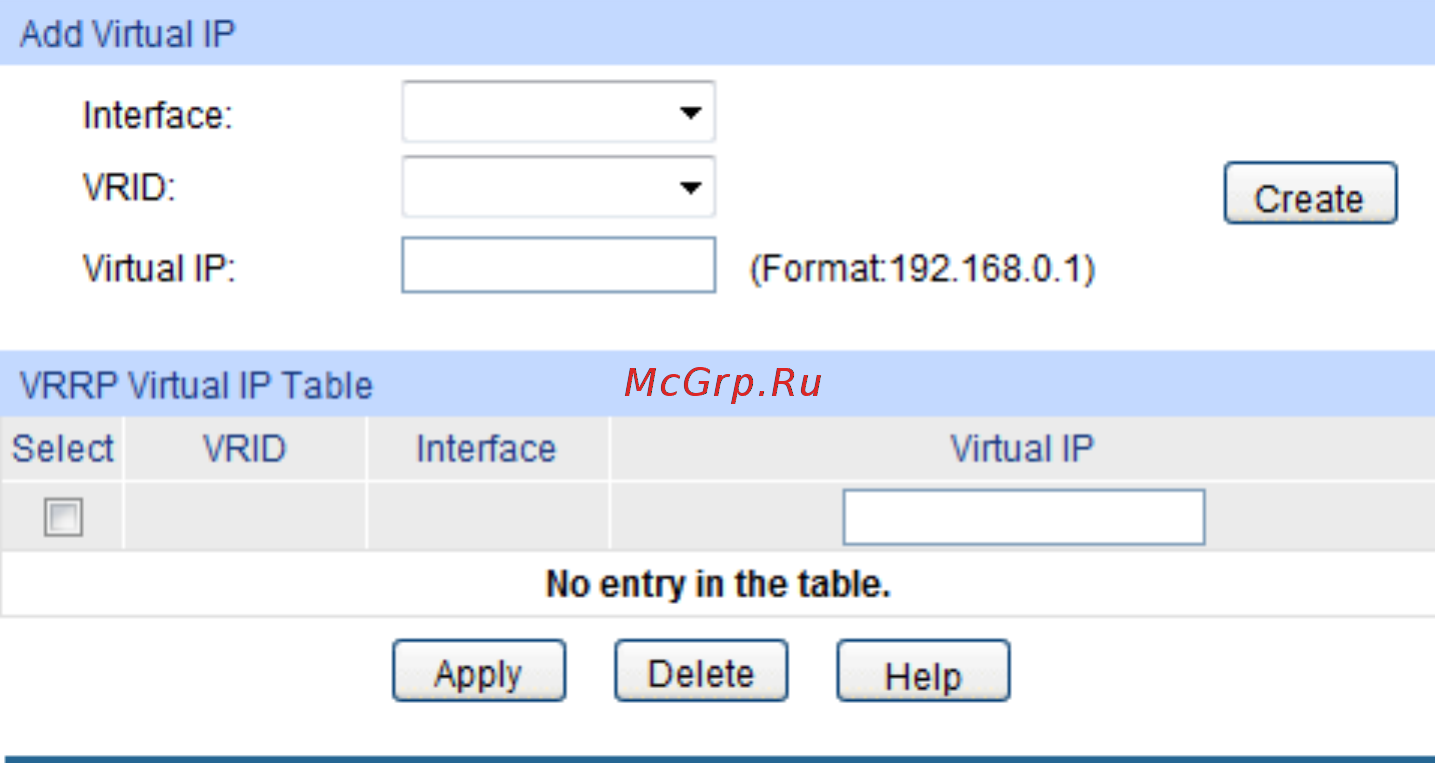

Choose the menu Routing→VRRP→Virtual IP Config to load the following page.

Figure10-62 Virtual IP Config
