118

 Configure switch D:

Step Operation Description

1 Configure ports On VLAN→802.1Q VLAN page, configure the link type

of the related ports as Trunk, and add the ports to

VLAN101-

VLAN106. The detailed instructions can be

found in the section 802.1Q VLAN.

2 Enable STP function On Spanning Tree→STP Config→STP Config page,

enable STP function and select MSTP version.

On Spanning Tree→Port Config→Port Config page,

enable MSTP function for the port.

3 Configure the region name and

the revision of MST region

On Spanning Tree→MSTP Instance→Region Config

page, configure the region as TP-

LINK and keep the

default revision setting.

4 Configure VLAN-to-Instance

mapping table of the MST region

On Spanning Tree→MSTP Instance→Instance

Config page, configure VLAN-to-

Instance mapping

table. Map V

LAN 101, 103 and 105 to Instance 1; map

VLAN 102, 104 and 106 to Instance 2.

 The configuration procedure for switch E and F is the same with that for switch D.

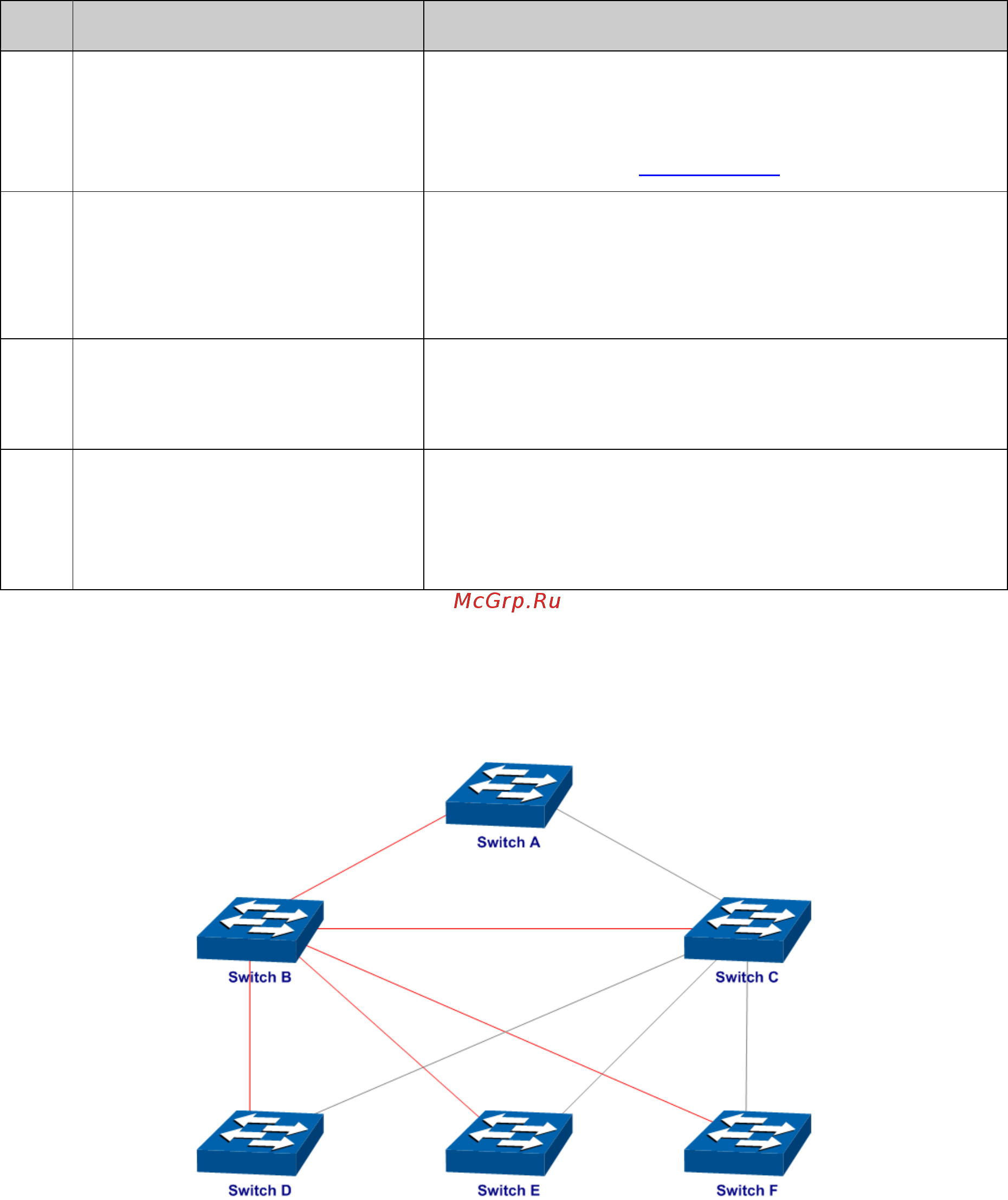

 The topology diagram of the two instances after the topology is stable

 For Instance 1 (VLAN 101, 103 and 105), the red paths in the following figure are connected

links; the gray paths are the blocked links.
