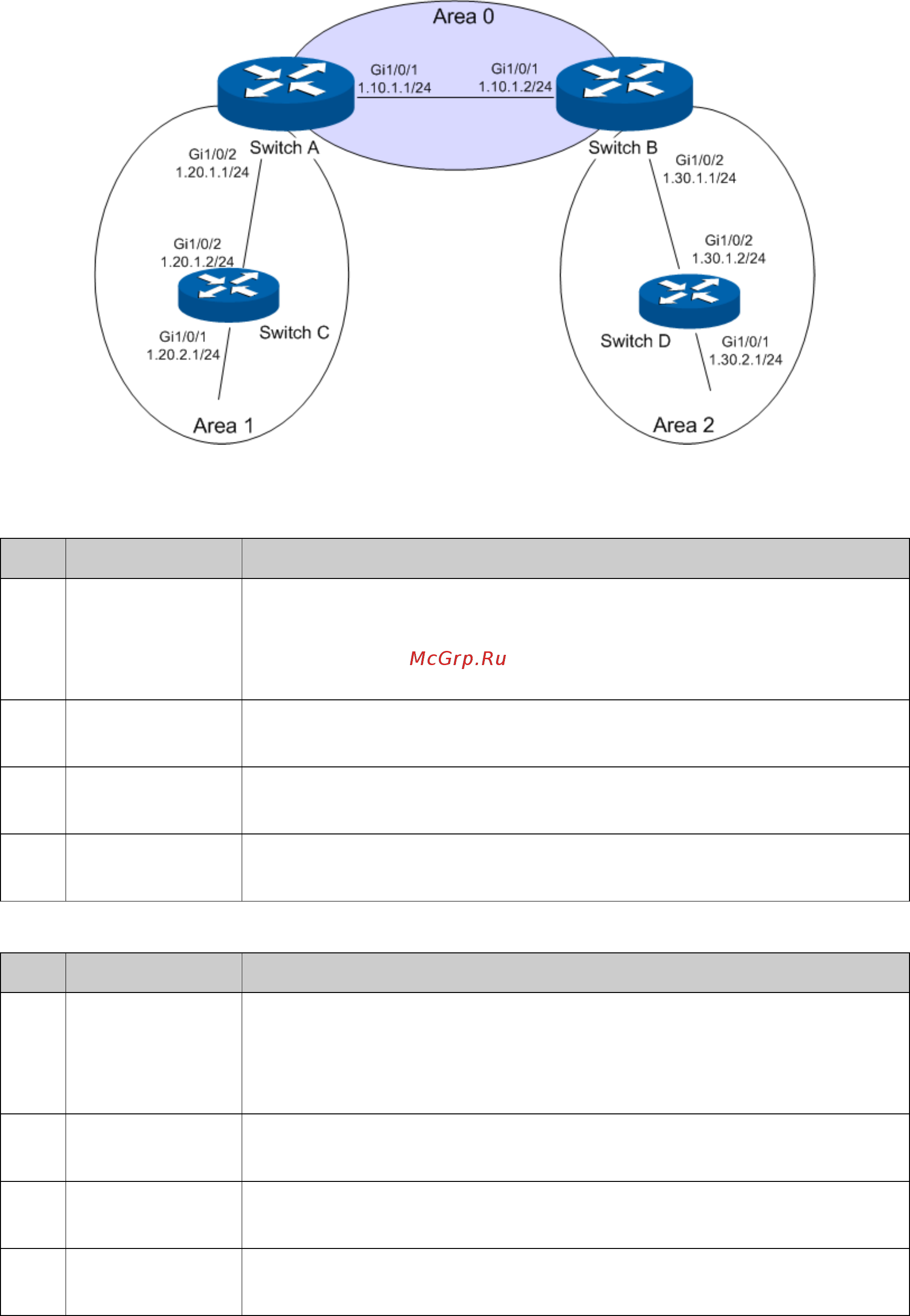

Network Diagram
Configuration Procedure
Configure Switch A
Step Operation Description
1
Create routing
interfaces and
their IP
addresses
Required. On page Routing→Interface→Interface Config
, create
routed port 1/0/1 with the IP
1.10.1.1/24 and routed port 1/0/2 with the
IP 1.20.1.1/24.
2
Create OSPF
process
Required. On page Routing→OSPF→Process, Create OPSF process
1 and configure the Router ID as 1.1.1.1.
3
Create networks
in the area
Required. On page Routing→OSPF→Network, con
figure network
1.10.1.0/24 in area 0 and configure network 1.20.1.0/24 in area 1.
4
Configure area
aggregation
Optional. On page Routing→OSPF→Area Aggragation, configure the
aggregation address as 1.20.0.0/16 in area 1.
Configure Switch B
Step Operation Description
1
Create routing
interfaces and
their IP
addresses
Required. On page Routing→Interface→Interface Config
, create
routed port 1/0/1 with the IP 1.10.1.2/24 and routed port 1/0/2 with the
IP 1.30.1.1/24.
2
Create OSPF
process
Required. On page Routing→OSPF→Process, Create OPSF process
1 and configure the Router ID as 2.2.2.2.
3
Create networks
in the area
Required. On page Routing→OSPF→Network,
configure network
1.10.1.0/24 in area 0 and configure network 1.30.1.0/24 in area 2.
4
Configure area
aggregation
Optional. On page Routing→OSPF→Area Aggragation, configure the
aggregation address as 1.30.0.0/16 in area 2.
