220

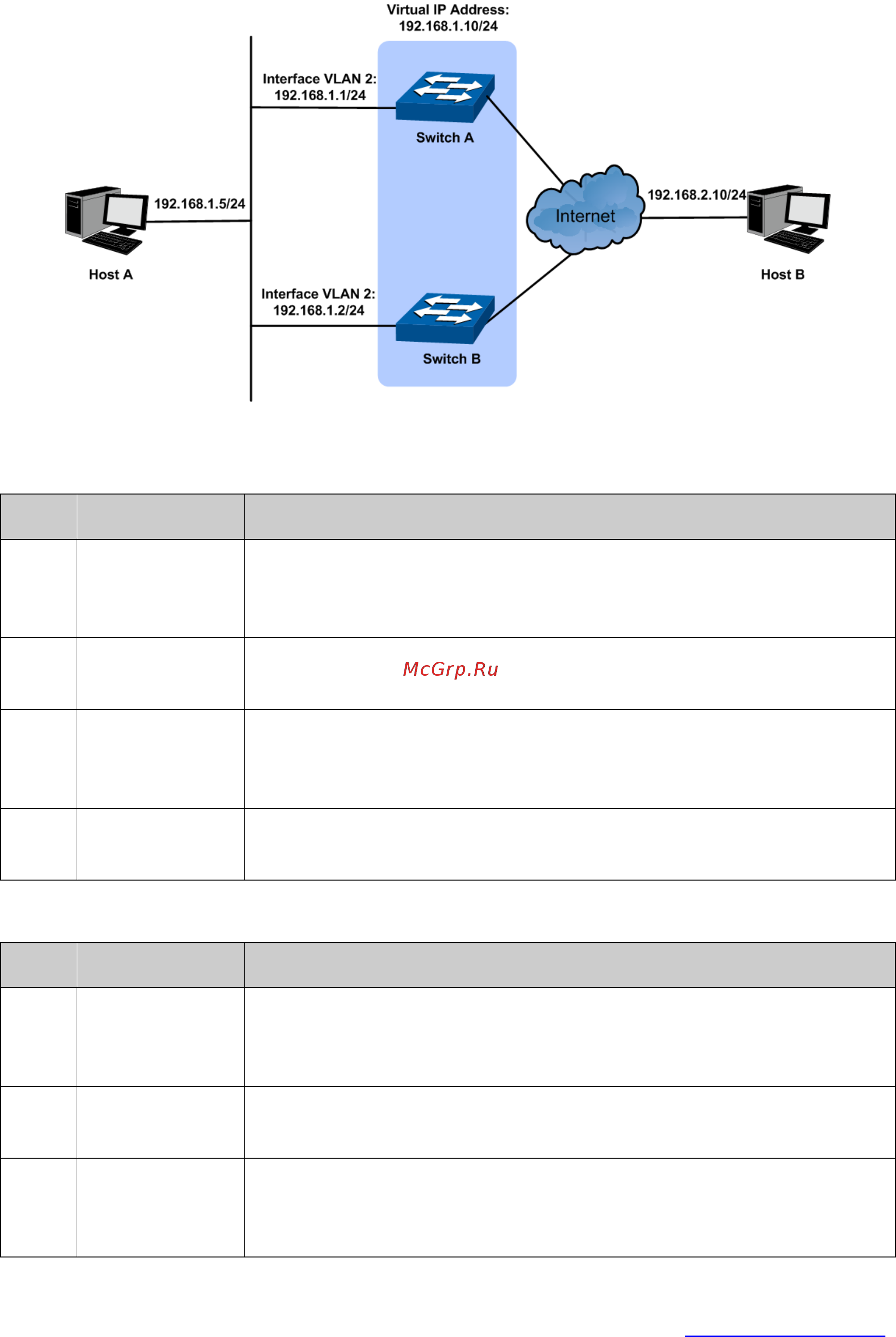

Network Diagram
Configuration Procedure
Configure Switch A
Steps Operation Note
1
Configure the
interface and its
IP address.
On page Routing→Interface→Interface Config, create the interface
VLAN2, and configure
its IP address as 192.168.1.1 and Subnet Mask
as 255.255.255.0.
2
Add port to the
interface.
On page VLAN→802.1Q VLAN→VLAN Config,
add port 5 to
interface VLAN 2.
3
Create VRRP On page Routing→VRRP→Basic Config
, create a VRRP instance
with the VRID as 1, the interface as VLAN 2 and
the Virtual IP as
192.168.1.10.
4
Configure
VRRP priority
On page Routing→VRRP→Advanced Config,
configure the VRRP
priority of interface VLAN 2 as 110.
Configure Switch B
Steps Operation Note
1
Configure the
interface and its
IP address.
On page Routing→ Interface→ Interface Config, create the interface
VLAN2, and configure
its IP address as 192.168.1.2 and Subnet Mask
as 255.255.255.0.
2
Add port to the
interface.
On page VLAN→802.1Q VLAN→VLAN Config,
add port 5 to
interface VLAN 2.
3
Create VRRP On page Routing→VRRP→Basic Config
, create a VRRP instance
with the VRID as 1, the interface as VLAN 2 and
the Virtual IP as
192.168.1.10.
Return to CONTENTS
