60

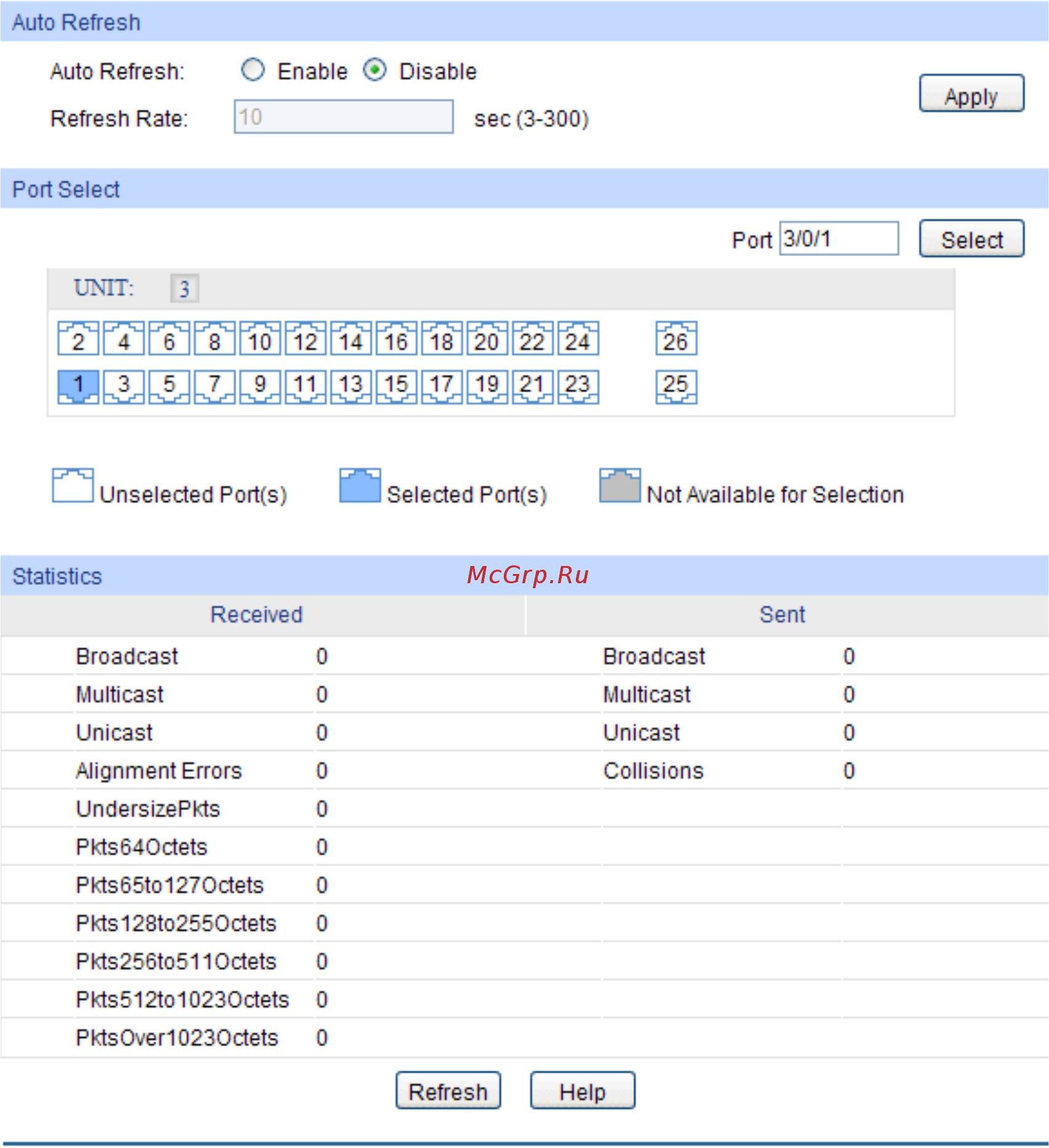

Choose the menu Switching→Traffic Monitor→Traffic Statistics to load the following page.
Figure6-13 Traffic Statistics
The following entries are displayed on this screen:
Auto Refresh
Auto Refresh:
Allows you to Enable/Disable refr
eshing the Traffic Summary
automatically.
Refresh Rate:
Enter a value in seconds to specify the refresh interval.
Port Select
UNIT:
Select the unit ID of the desired member in the stack.
Port Select:
Click the Select button to quick-select the correspon
ding port
based on the port number you entered.
