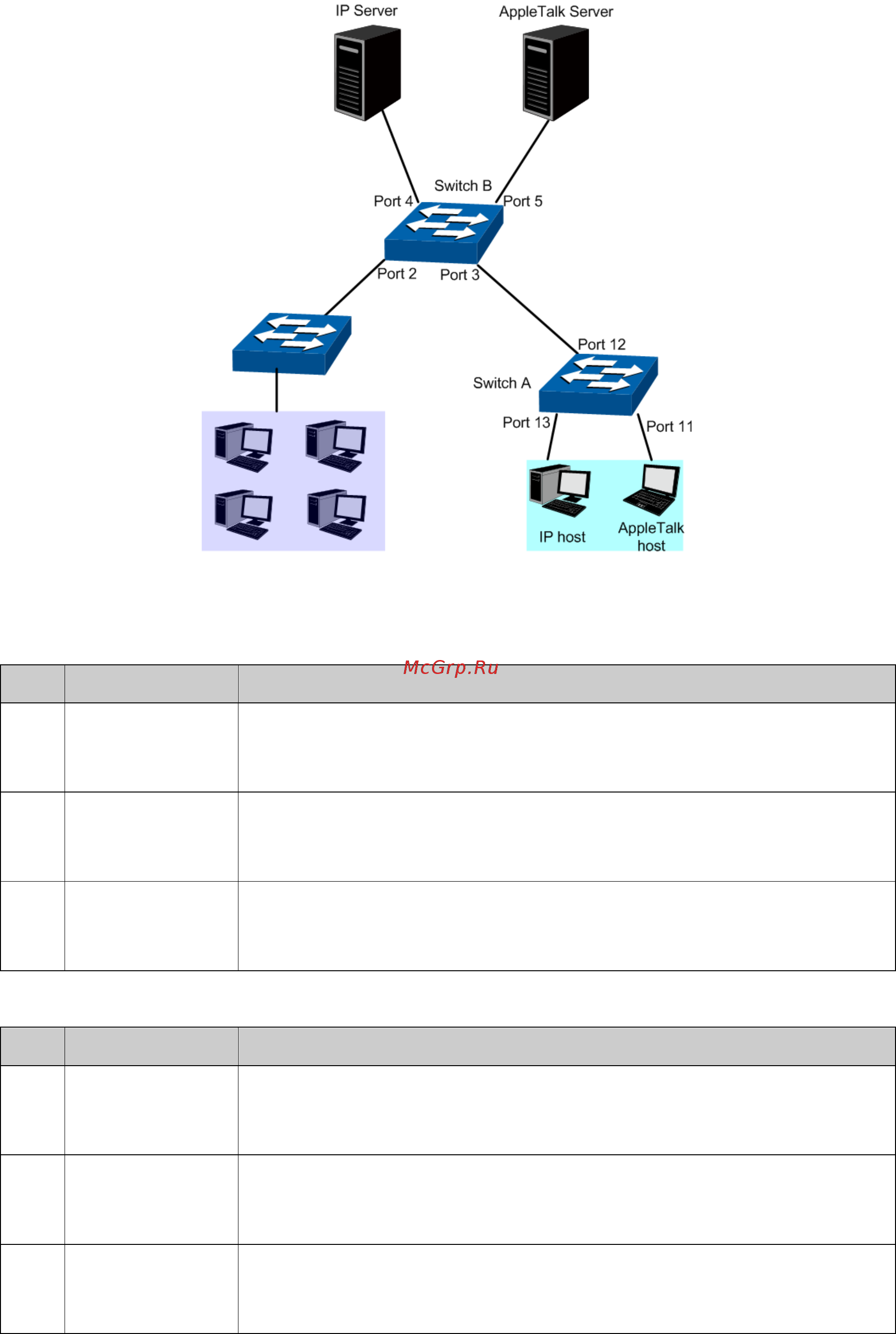

 Network Diagram

 Configuration Procedure

 Configure switch A

Step Operation Description

Configure the

Link Type of the

ports

Required. On VLAN→802.1Q VLAN→Port Config page, configure the

link type of Port 11 and Port 13 as ACCESS, and configure the link type

of Port 12 as GENERAL.

Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN wit

h its VLAN ID as 10, owning Port 12 and Port 13, and

configure the egress rule of Port 12 as Untag.

Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLAN ID as 20, owning Port 11 and Port 12, and

configure the egress rule of Port 12 as Untag.

 Configure switch B

Step Operation Description

Configure the

Link Type of the

ports

Required. On VLAN→802.1Q VLAN→Port Config page, configure the

link type of Port 4 and Port 5 as ACCESS, and configure the link type of

Port 3 as GENERAL.

Create VLAN10 Required. On VLAN→802.1Q VLAN→VLAN Config page, create a

VLAN with its VLAN ID as 10, owning Port 3 and Port 4, and configure

the egress rule of Port 3 as Untag.

Create VLAN20 Required. On VLAN→802.1Q VLAN→VLAN Config page, c

reate a

VLAN with its VLAN ID as 20, owning Port 3 and Port 5, and configure

the egress rule of Port 3 as Untag.
