Chapter 2 Installation AFE2000 Series
2-8

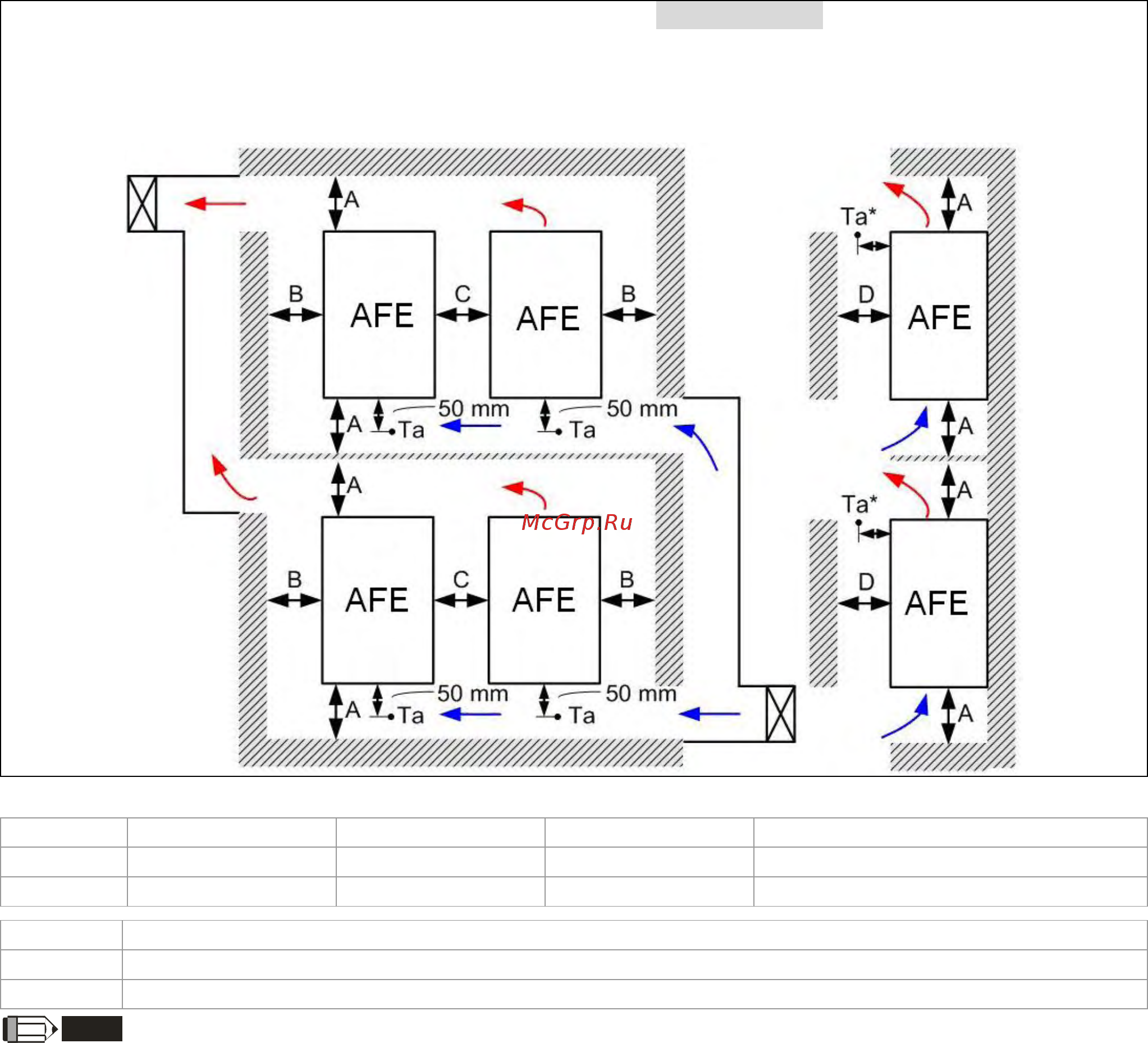

Multiple drives installation side-by-side in rows (Frame B,C) Ta: Frame B~D
For installation in rows, it is recommend to install a barrier between the drives. Adjust the size of the
barrier till the temperature measured at the fan’s inflow side is lower than the operation temperature.
Operation temperature is the defined as the temperature measured 50mm away from the fan’s inflow
side. (As shown in the figure below)
Minimum Mounting Clearances
Frame A (mm) B (mm) C (mm) D (mm)
B~C 60 30 10 0
D 100 50 - 0
Frame B AFE075A23A; AFE075A43A; AFE150A43A;
Frame C AFE150A23A; AFE220A23A; AFE220A43A;
Frame D AFE370A23A; AFE370A43A; AFE450A43A; AFE750A43A;
NOTE
1. It is the minimum distance required for Frame B~D. If drives are installed closer than the minimum mounting clearance, the
fan would not be able to function properly.
