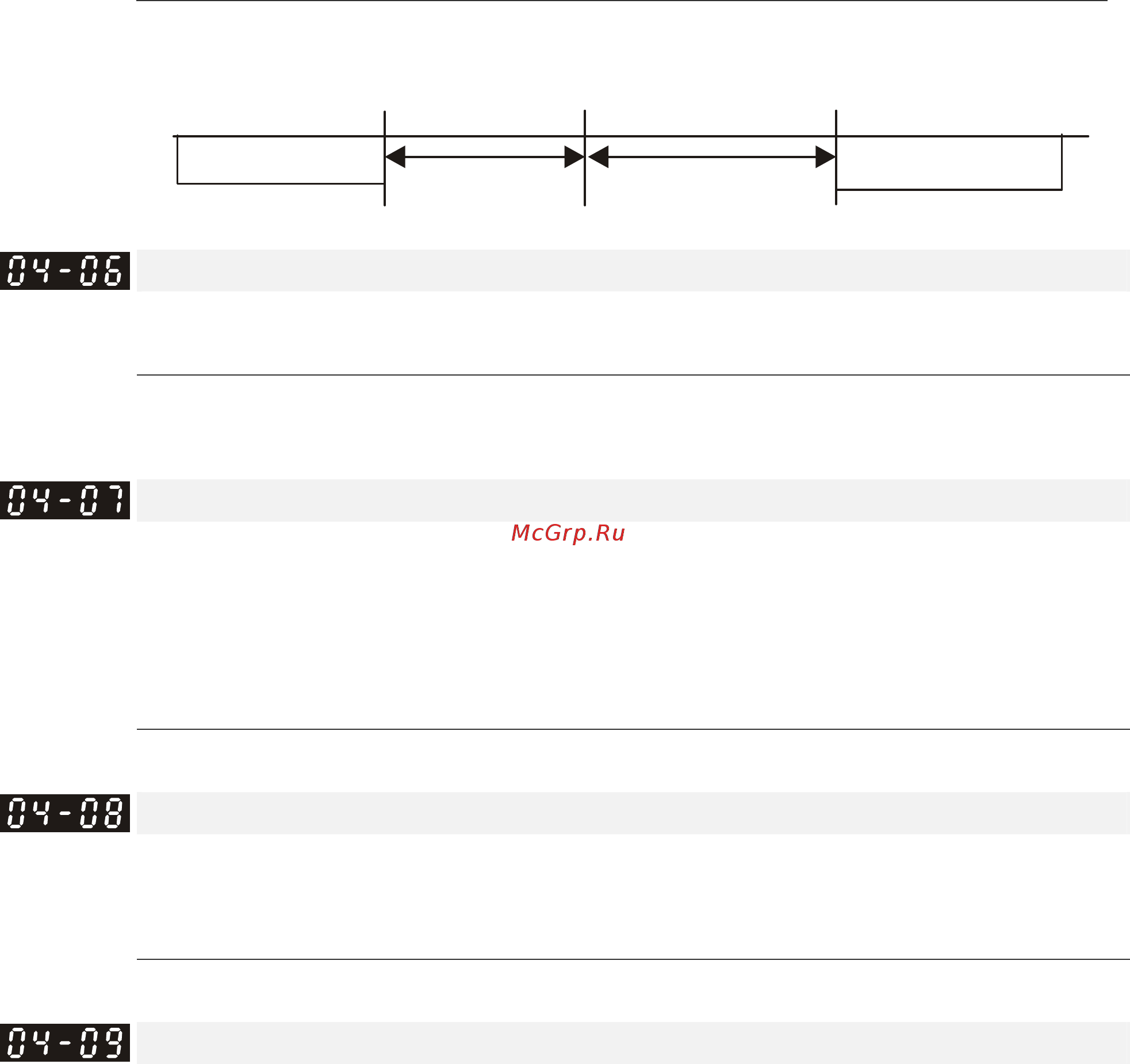

Chapter 11 Description of Parameter SettingsAFE2000 Series
11-94
Settings 0.0~200.0ms
This parameter is the response delay time after AFE unit receives communication command as
shown in the following.
PC or PLC command
Handling time
of the AFE unit
Response Delay Time
Response Message
of the AFE unit
RS-485 BUS
COM2Transmission Speed
Factory Setting: 19.2
Settings 4.8~115.2kbits/s
This parameter is used to set the transmission speed between the RS485 master (PLC, PC, etc.) and
AFE2000 unit.
COM2 Transmission Fault Treatment
Factory Setting: 3
Settings
0: Warning and continue to operate
1: Warn and ramp to stop
2: Warn and coast to stop
3: No warning and continue to operate
This parameter is set to how to react if transmission errors occur.
COM2 Time-out Detection
Factory Setting: 0.0
Settings 0.0~100.0sec
0.0: No detection
It is used to set the transmission time between communication and keypad.
COM2 Communication Protocol
Factory Setting: 13
Settings
0：7，N，1 for ASCII
1：7，N，2 for ASCII
2：7，E，1 for ASCII
3：7，O，1 for ASCII
4：7，E，2 for ASCII
5：7，O，2 for ASCII
6：8，N，1 for ASCII
7：8，N，2 for ASCII
8：8，E，1 for ASCII
9：8，O，1 for ASCII
10：8，E，2 for ASCII
11：8，O，2 for ASCII
