Chapter 6 Optional Accessories|AFE2000 Series

6-37

Installation『MKC-CFM』

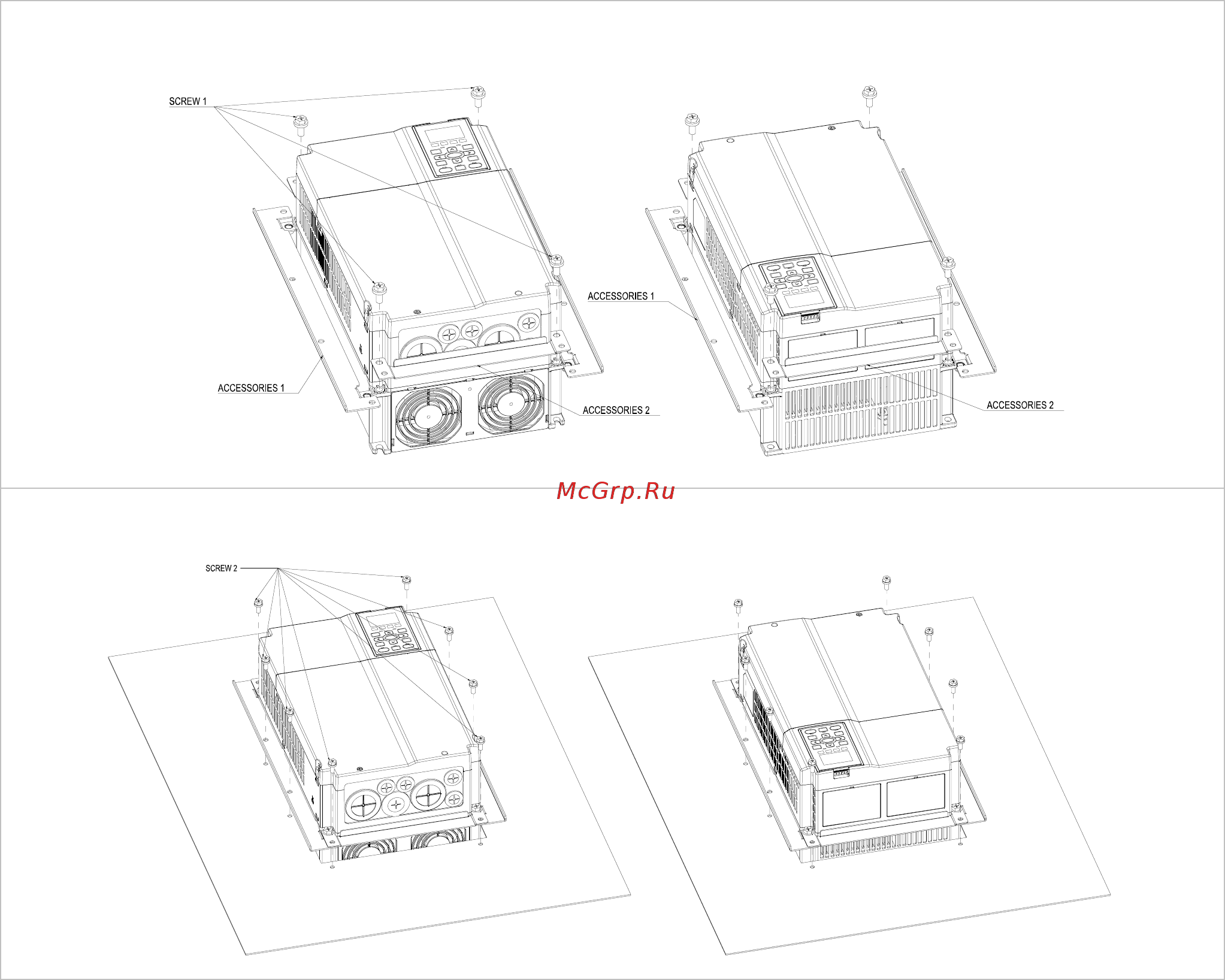

1. Install accessory 1& 2 by fastening 4 of the screw 1(M8). Screw torque: 50~55kg-cm (43.4~47.7Ib-in).

(As shown in the following figure)

2. Plate installation, place 8 of the screw 2 (M6) through accessories 1&2 and the plate then fasten the screws.

Screw torque: 25~30kg-cm (5.21~6.94Ib-in). (As shown in the following figure)
