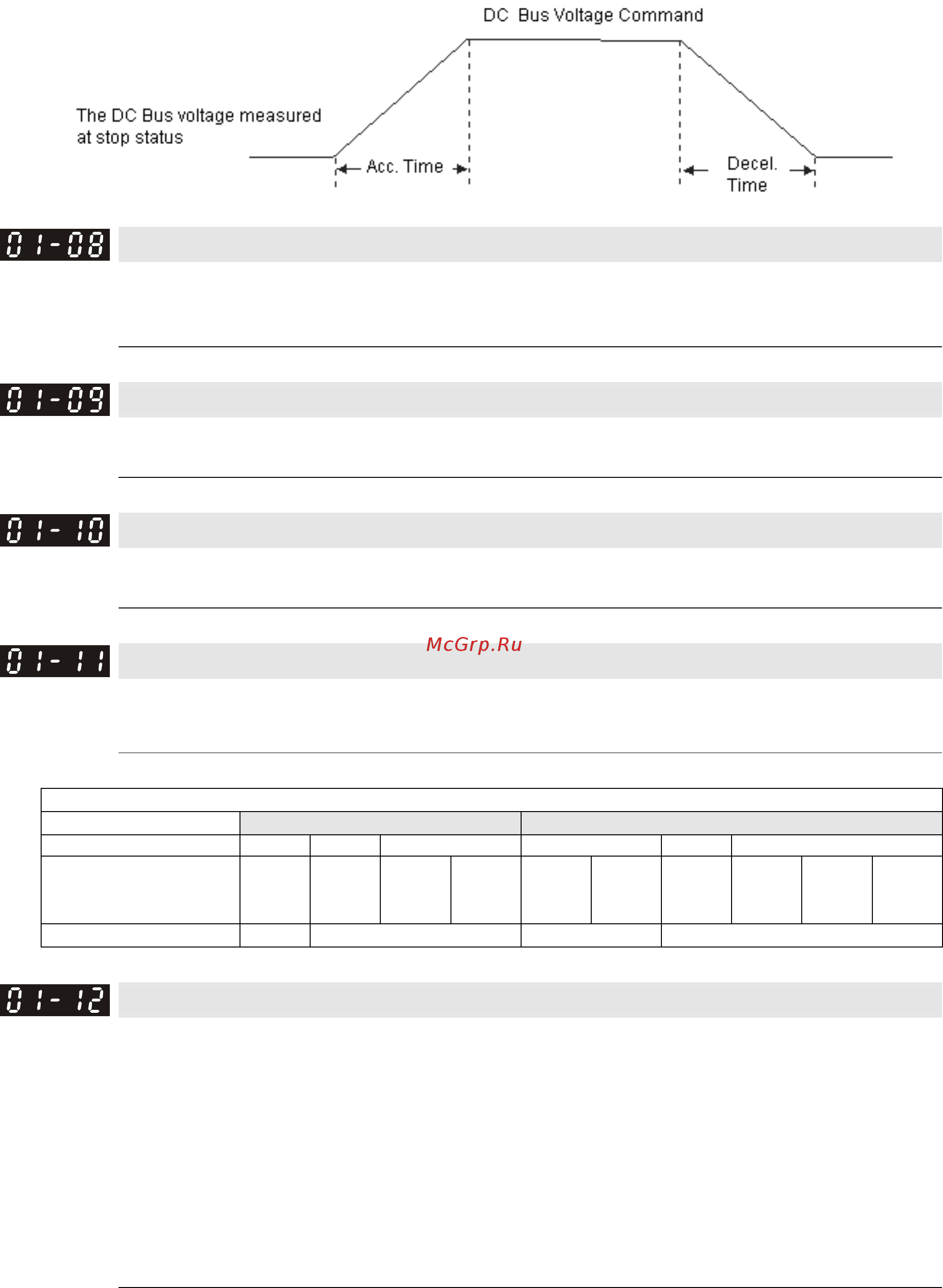

Chapter 11 Description of Parameter SettingsAFE2000 Series
11-78
DC BUS Voltage Command
Settings 230V: 300V~370V Factory Setting: 340
430V: 600V~740V Factory Setting: 680
DC BUS Gain Ratio of P
Factory Setting: 100
Settings 0~100%
DC BUS Gain Ratio of I
Factory Setting: 100
Settings 0~100%
DC BUS Bandwidth Control
Factory Setting:
Refer to the chart
Settings 0~75Hz
Pr.01-11 is to control the DC BUS Bandwidth:
AFE2000
Input voltage 230V 460V
Frame B C D B C D
Applicable power
range of AC motor
drive (kW)
75 15 22 35 7.5 15 22 37 45 75
Factory setting (Hz) 18 22 18 22
Inductance Value of Reactor
Factory Setting: 0.88
Settings 0(230V, 7.5kW): 2.10
1(460V, 7.5Kw): 7.32
2(230V, 15kW): 1.32
3(460V, 15kW): 5.28
4(230V, 22kW): 0.88
5(460V, 22kW): 3.52
6(230V, 37kW): 0.50
7(460V, 37kW): 1.96
9(460V, 45kW): 1.76
11(460V, 75kW): 1.02
