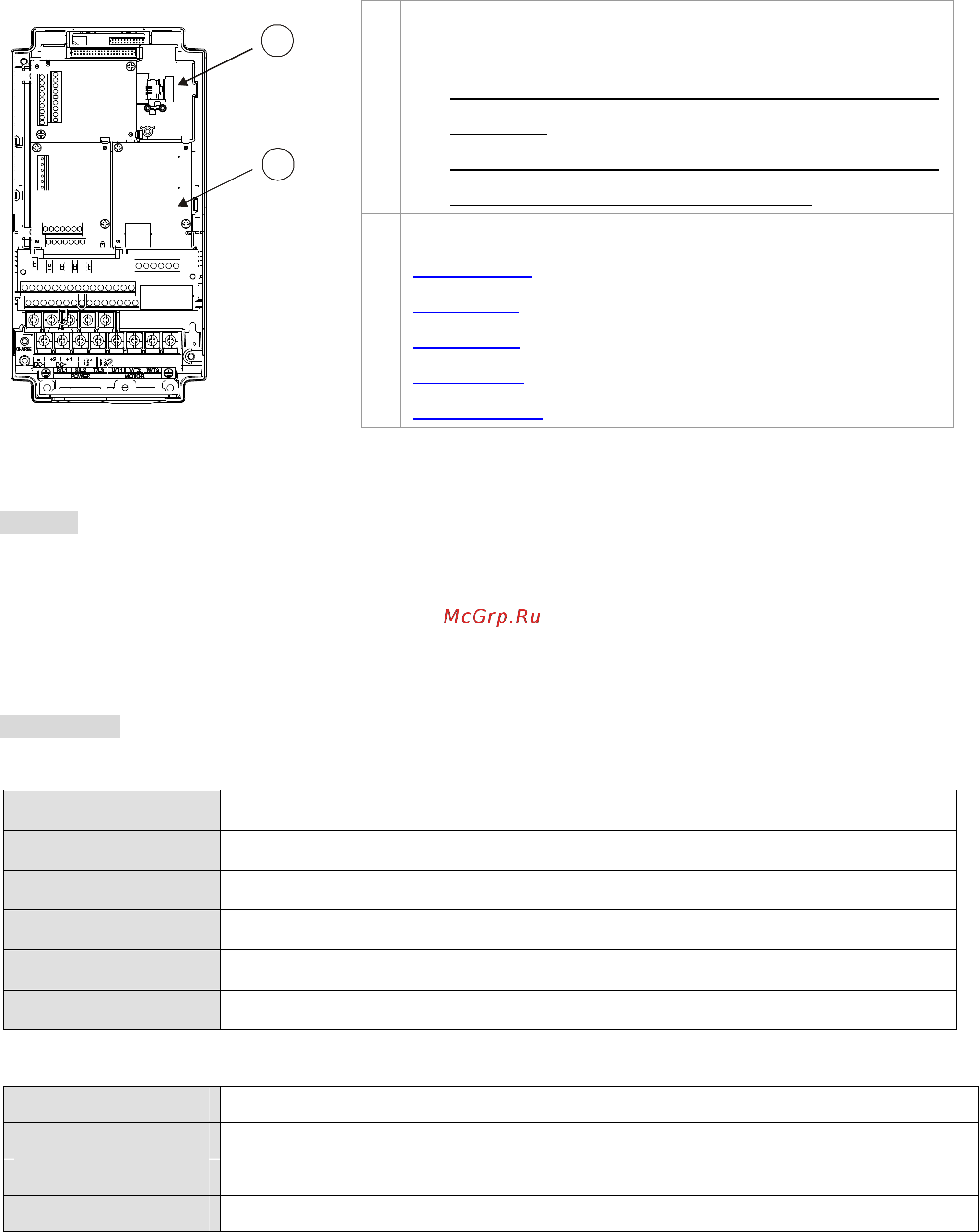

Chapter 7 Option CardsAFE2000 Series
7-42
1
2
Slot 1Slot 2
Slot 3
1
RJ45(Socket) for digital keypad
KPC-CC01; KPC-CE01
Please refer to CH09 Digital Keypad for more details on
KPC-CE01
Please refer to CH09 Digital Keypad for more details on
optional accessory RJ45 extension cable.
2
Communication extension cards(Slot 1)
CMC-MOD01
;
CMC-PD01;
CMC-DN01;
CMC-EIP01;
EMC-COP01;
CMC-MOD01
Features
1. Supports Modbus TCP protocol
2. MDI/MDI-X auto-detect
3. Baud rate: 10/100Mbps auto-detect
4. E-mail alarm
5. AC motor drive keypad/Ethernet configuration
6. Virtual serial port
Specifications
Network Interface
Interface
RJ-45 with Auto MDI/MDIX
Number of ports
1 Port
Transmission method
IEEE 802.3, IEEE 802.3u
Transmission cable
Category 5e shielding 100M
Transmission speed
10/100 Mbps Auto-Detect
Network protocol
ICMP, IP, TCP, UDP, DHCP, SMTP, MODBUS OVER TCP/IP, Delta Configuration
Electrical Specification
Power supply voltage
5VDC（suppliled by AFE2000）
Insulation voltage
2KV
Power consumption
0.8W
Weight
25g
