Delta Electronics REG300A23A-21 [40/131] Frame d

Chapter 6 Optional Accessories|AFE2000 Series

6-38

Frame D

Applicable model

AFE370A23A; AFE370A43A; AFE450A43A; AFE750A43A;

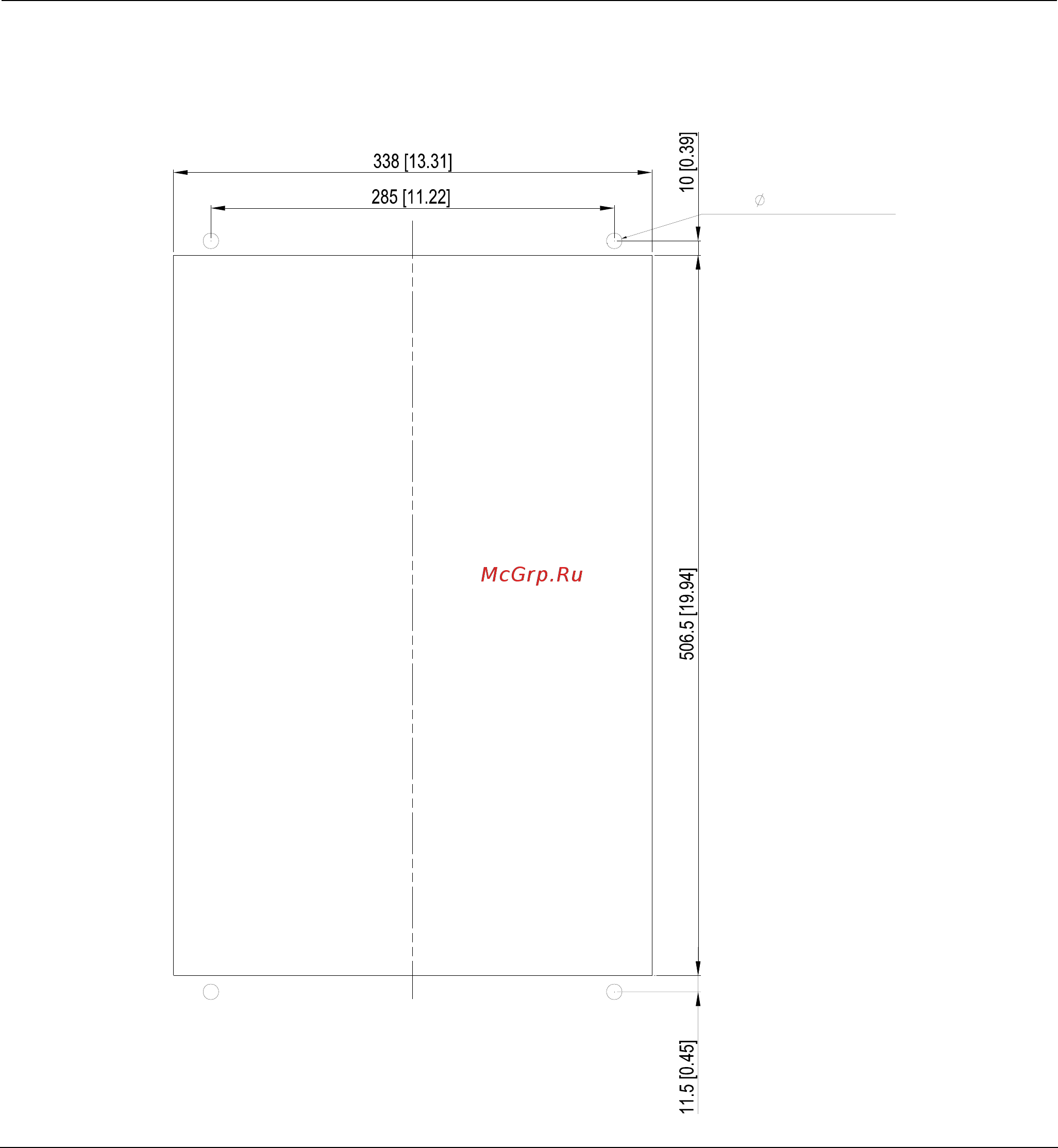

Cutout dimension Unit:mm [inch]

M10*P1.5(4X)

11.0[0.43](4X)
