Chapter 6 Optional Accessories|AFE2000 Series

6-26

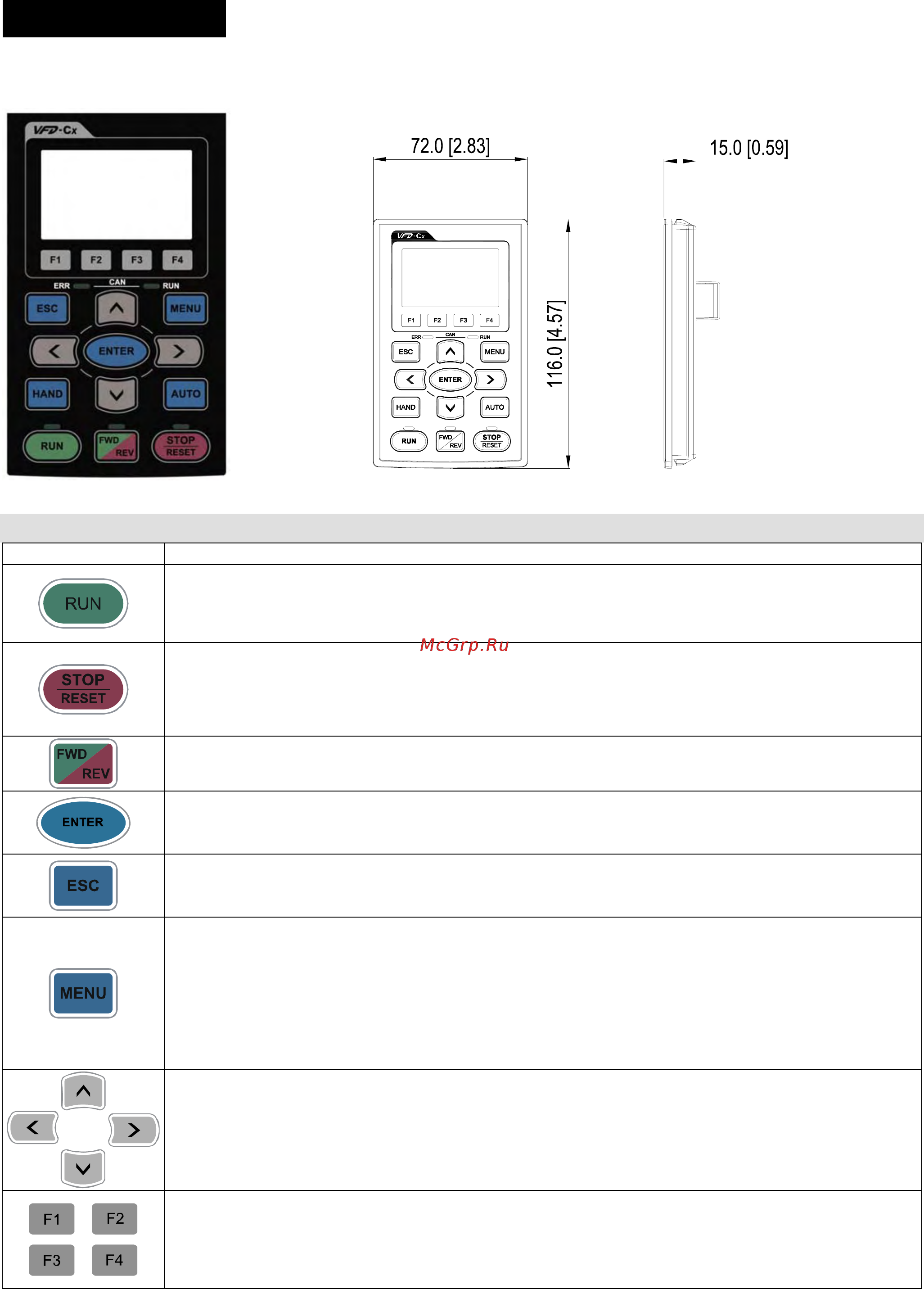

Digital Keypad

KPC-CC01

Frame size

Descriptions to the function key

Key Description

START OPERATION

1. It is only valid when the source of operation command is from the keypad.

2. The RUN key starts AFE2000 to operate as the function setting and the RUN LED will be ON

3. It can be pressed again and again during stop.

STOP OPERATION (When Stop key is pressed, all operation will stop in all condition.) This key has the

highest priority in all condition.

1. When i STOP command is given, the AFE2000’s operation will stop under any condition.

2. The RESET key can be used to reset the drive when faults occur. If the RESET key is not responsing,

check MENU Æ Fault Records search for the most recent fault.

OPERATION DIRECTION (This function will be available soon)

ENTER

Press ENTER and go to the next level. If it is the last level then press ENTERnter to execute the

command.

ESC

Press ESC to return to the last page. If there is a sub-menu, press ESC will return to the

previous category.

MENU, press MENU key at any time would return to the main menu.

List of function:

KPC-CE01does not support function 4~112.

KPC-CC01does not support function 4, 5 and 7.

1. Detail Parameter

2. Copy Parameter

3. Keypad Locked

4. PLC Function

5. Copy PLC

6. Fault Record

7. Simple/ Quick Setting

8. Display Setting

9. Time Setting

10. Language Setting

11. Startup Menu Setting

12. Main Page Setting

1. “up”, “down”, “left” and “right”.

2. When setting the number, use “left” and “right” key to increase and decrease the value.

3. When selecting the options, use “up” and “down” key to move the selection.

Function key (This function will be available soon.)
