Delta Electronics REG300A23A-21 [36/131] Flange mounting kit

Chapter 6 Optional Accessories|AFE2000 Series

6-34

Flange Mounting Kit

Applicable Models, Frame B~D

Frame B

『MKC-BFM』

Applicable model AFE075A23A; AFE075A43A; AFE150A43A;

Accessories 1*2

Accessories 2*2

Screw 1 *4 ~ M8*P 1.25;

Screw 2*6 ~ M6*P 1.0;

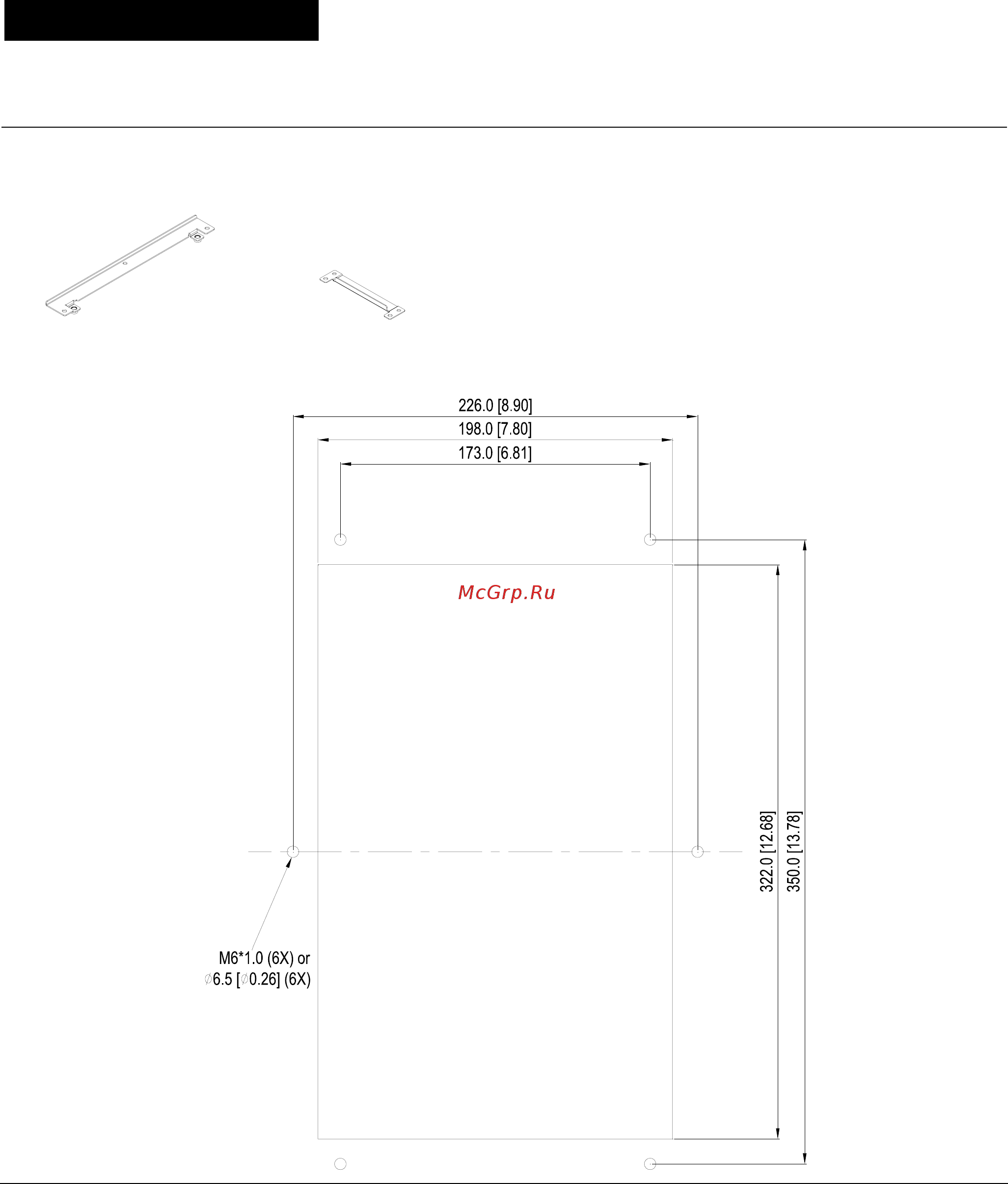

Cutout dimension Unit: mm [inch]
