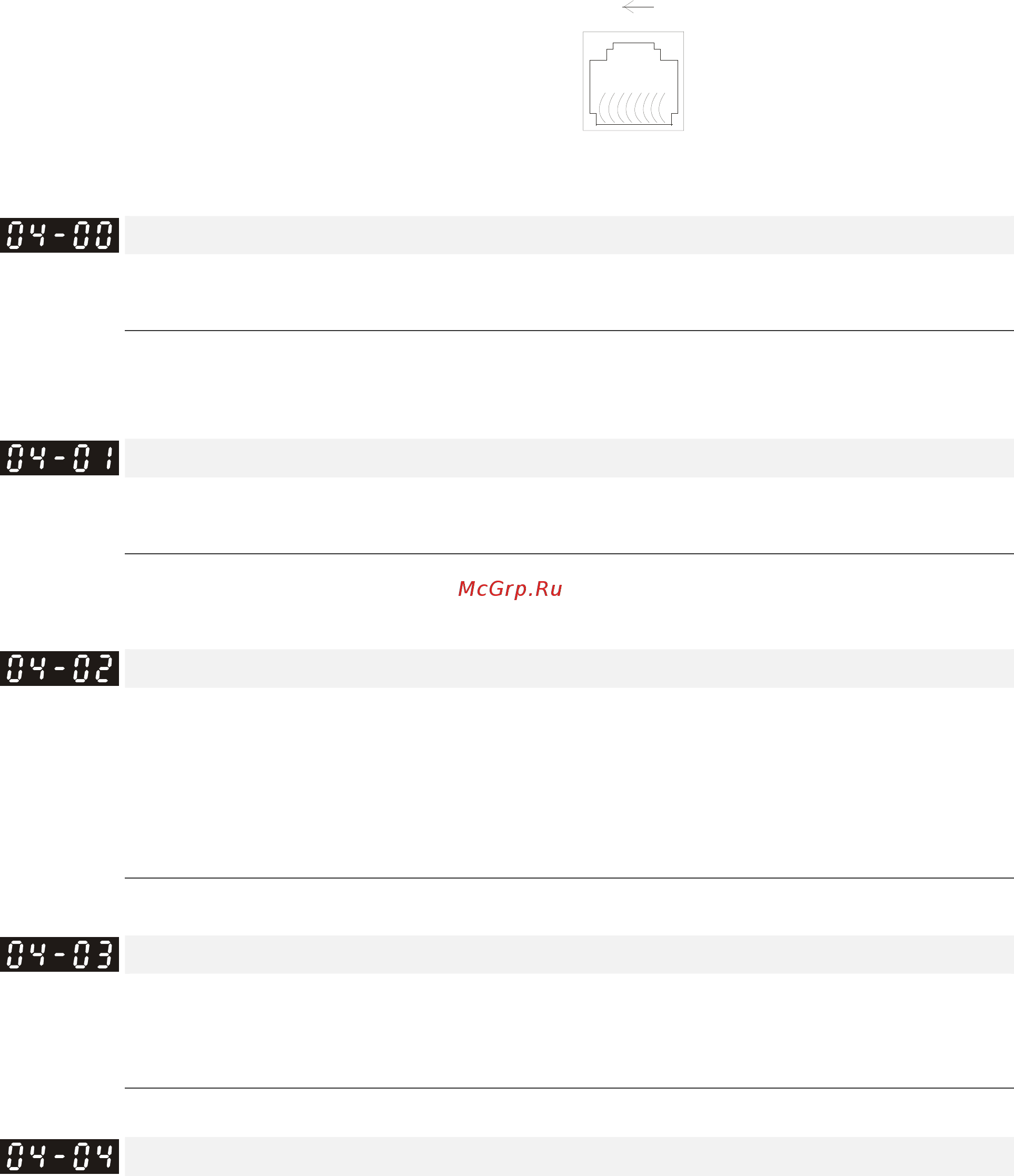

Chapter 11 Description of Parameter SettingsAFE2000 Series
11-85
04 Communication Parameters This parameter can be set during the operation.
1:+EV
2:GND
3:SG-
4:SG+
5:NC
6:NC
RS-485
6
1
Serial
communication
When controlling by communcation,
it needs to connect the drive and PC by
IFD6530 or IFD6500 converter.
Communication Address
Factory Setting: 1
Settings 1~254
If the AFE unitis controlled by RS-485 serial communication, the communication address for this AFE unit
must be set via this parameter. And the communication address for each AC motor drive must be different
and unique.
Transmission Speed
Factory Setting: 19.2
Settings 4.8~115.2kbits/s
This parameter is used to set the transmission speed between the RS485 master (PLC, PC, etc.) and
AFE2000 unit.
Transmission Fault Treatment
Factory Setting: 3
Settings
0: Warn and continue operation
1: Warn and ramp to stop
2: Reserved
3: No treatment and no warn
This parameter is set to how to react if transmission errors occur.
Time-out Detection
Factory Setting: 0.0
Settings 0.0~100.0sec
0.0: No detection
It is used to set the transmission time between communication and keypad.
Communication Protocol
Factory Setting: 13
Settings
0：7，N，1 for ASCII
1：7，N，2 for ASCII
2：7，E，1 for ASCII
3：7，O，1 for ASCII
4：7，E，2 for ASCII
