Chapter 7 Option CardsAFE2000 Series
7-44
Parameter (Dec) Function Set value (Dec) Explanation
04-24 IP address -3 1 IP address 192.168.1.5
04-25 IP address -4 5 IP address 192.168.1.5
04-26 Netmask -1 255 Netmask 255.255.255.0
04-27 Netmask -2 255 Netmask 255.255.255.0
04-28 Netmask -3 255 Netmask 255.255.255.0
04-29 Netmask -4 0 Netmask 255.255.255.0
04-30 Default gateway -1 192 Default gateway 192.168.1.1
04-31 Default gateway -2 168 Default gateway 192.168.1.1
04-32 Default gateway -3 1 Default gateway 192.168.1.1
04-33 Default gateway -4 1 Default gateway 192.168.1.1
Disconnecting CMC- MOD01 from AFE2000 unit
1. Turn off the AFE2000 power. .
2. Remove the two screws (see Figure 6).
3. Twist opens the card clip and inserts the slot type screwdriver to the hollow to prize the PCB off the card clip
(see Figure 7).
4. Twist opens the other card clip to remove the PCB (see Figure 8)

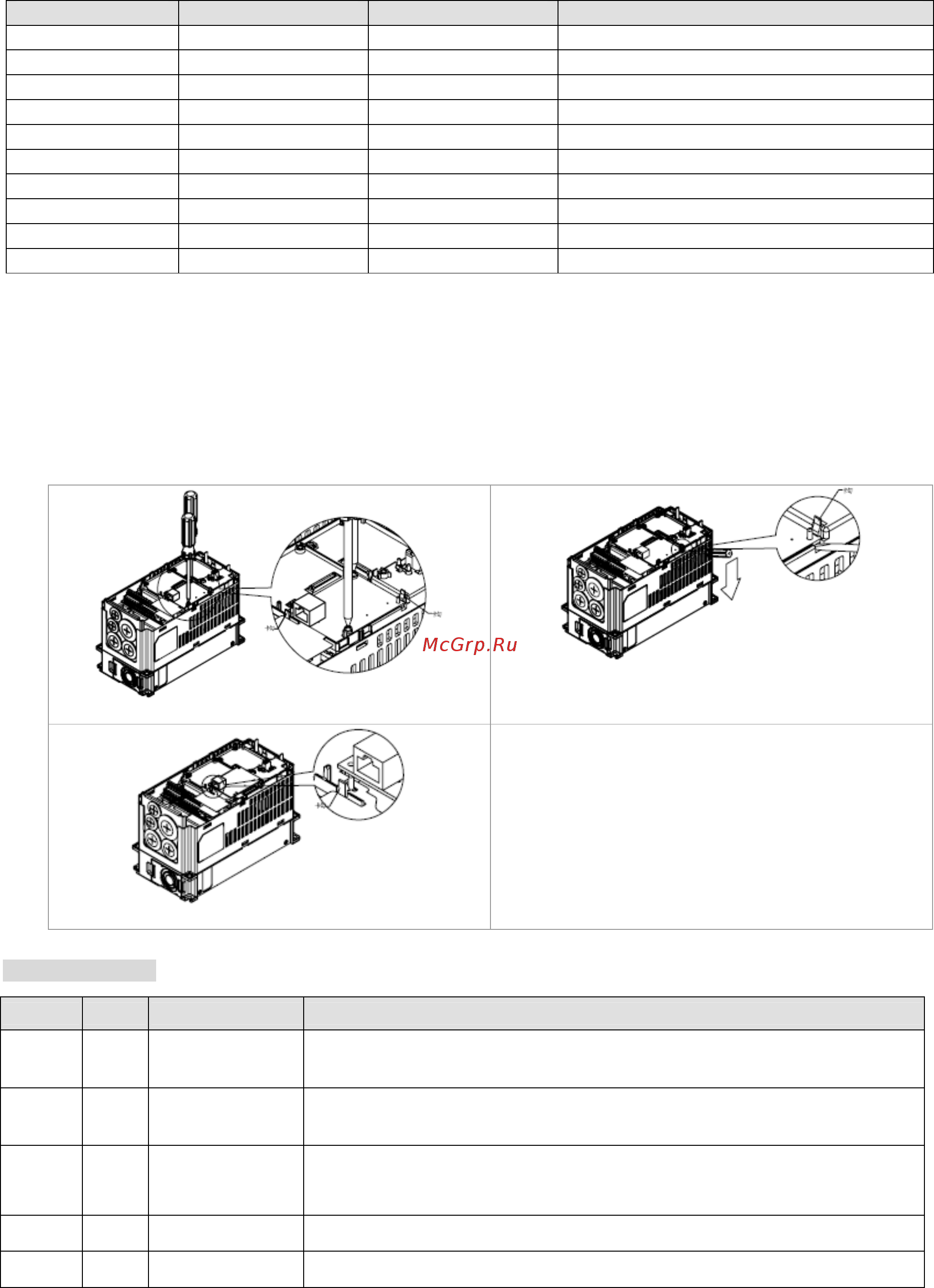

[Figure 6]
[Figure 7]
[Figure 8]
Basice Registers
BR# R/W Content Explanation
#0 R
Model name Set up by the system; read only. The model code of
CMC-MOD01=H’0203
#1 R
Firmware
version
Displaying the current firmware version in hex, e.g. H’0100 indicates the
firmware version V1.00.
#2 R
Release date of
the version
Displaying the data in decimal form. 10,000s digit and 1,000s digit are for
“month”; 100s digit and 10s digit are for “day”.
For 1 digit: 0 = morning; 1 = afternoon.
#11 R/W Modbus Timeout Pre-defined setting: 500 (ms)
#13 R/W Keep Alive Time Pre-defined setting: 30 (s)
