Chapter 7 Option CardsAFE2000 Series

7-52

Environment

Noise immunity

ESD (IEC 61800-5-1,IEC 61000-4-2)

EFT (IEC 61800-5-1,IEC 61000-4-4)

Surge Test (IEC 61800-5-1,IEC 61000-4-5)

Conducted Susceptibility Test (IEC 61800-5-1,IEC 61000-4-6)

Operation/storage

Operation: -10°C ~ 50°C (temperature), 90% (humidity)

Storage: -25°C ~ 70°C (temperature), 95% (humidity)

Vibration/shock

immunity

International standard: IEC 61800-5-1, IEC 60068-2-6/IEC 61800-5-1, IEC 60068-2-27

 Installation

Connecting CMC-EIP01 to Network

1. Turn off the AFE2000 power.

2. Open up AFE2000 cover.

3. Connect CAT-5e network cable to RJ-45 port on CMC-EIP01

(See Figure 2).

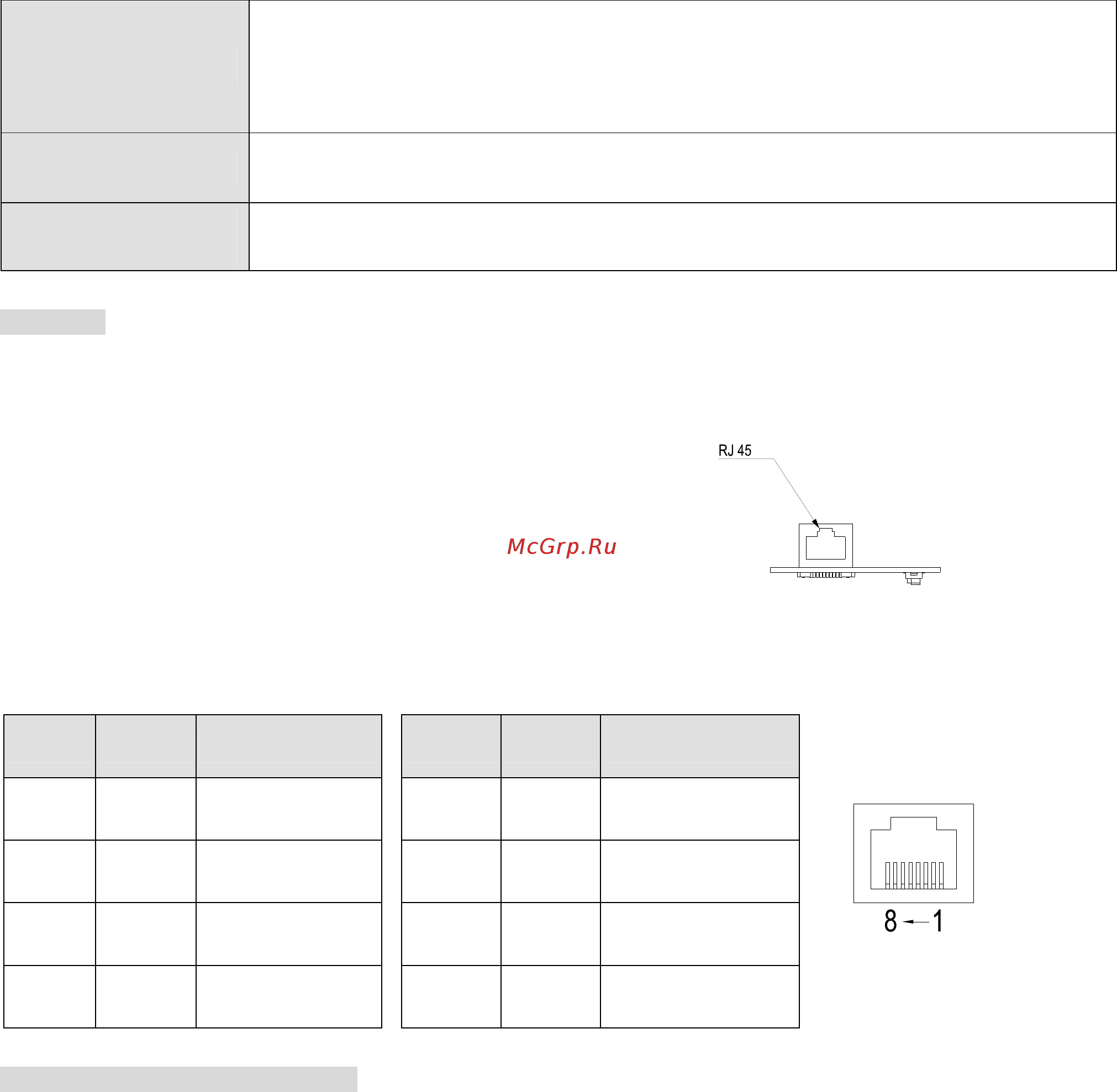

[Figure 2]

RJ-45 PIN Definition

PIN Signal Definition PIN Signal Definition

1 Tx+

Positive pole for

data transmission

5 -- N/C

2 Tx-

Negative pole for

data transmission

6 Rx-

Negative pole for

data receiving

3 Rx+

Positive pole for

data receiving

7 -- N/C

4 -- N/C 8 -- N/C

 Connecting CMC-EIP01 to AFE2000

1. Turn off the AFE2000 power.

2. Open up AFE2000 cover.

3. Place the insulation spacer into the positioning pin at Slot 1 (shown in Figure 3), and aim the two holes on

the PCB at the positioning pin. Press the pin to clip the holes with the PCB (see Figure 4).

4. Screw up at torque 6 ~ 8 kg-cm (5.21 ~ 6.94 in-lbs) after the PCB is clipped with the holes (see Figure 5).
