Electrical Installation Tester
Operating the Tester
9

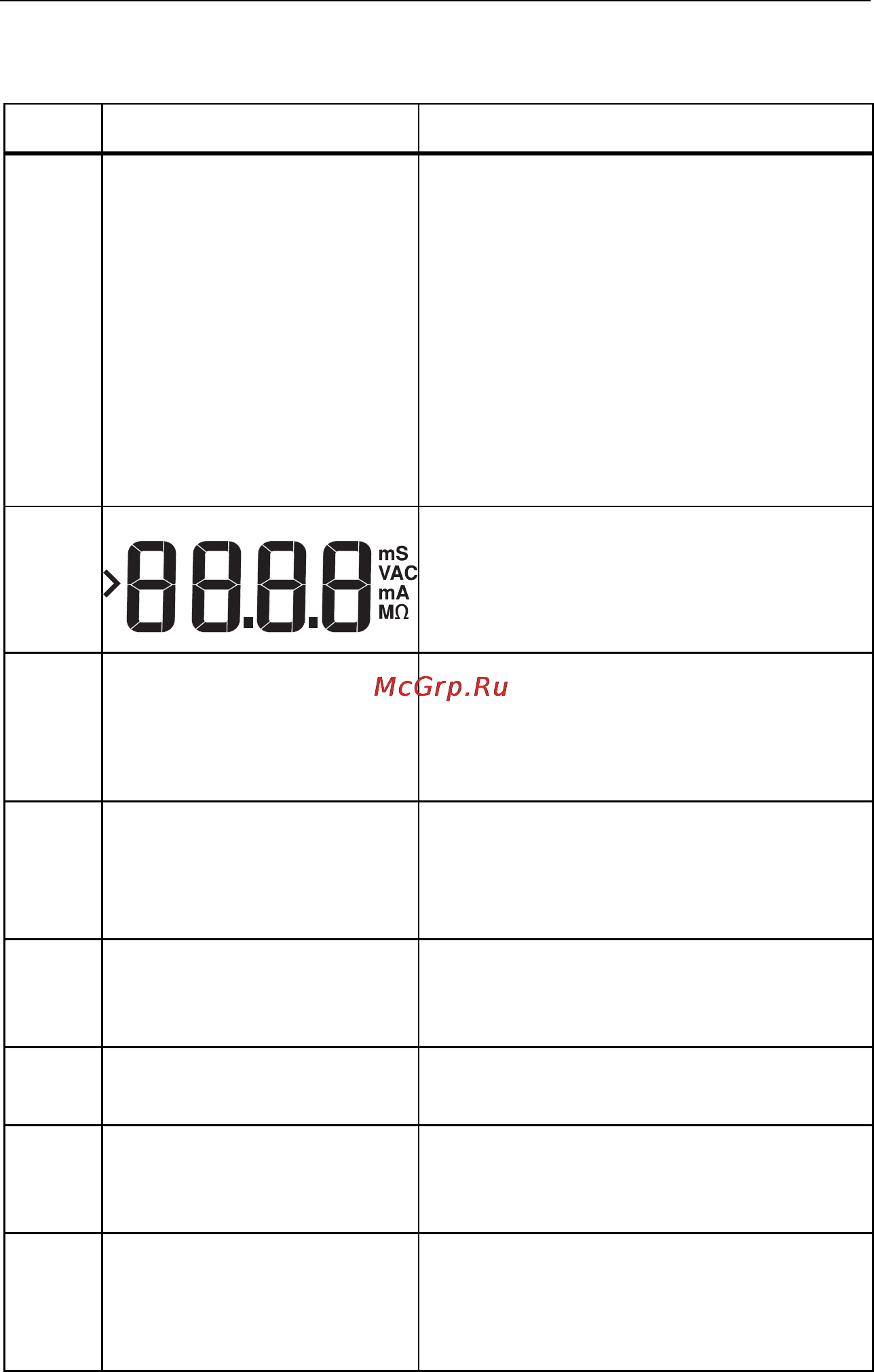

Table 5. Display Features (cont.)
No. Annunciator Meaning
a
w=
Indicates the preset fault voltage limit.
The default setting is 50 V. Some
locations require the fault voltage be
set to 25 V, as specified by local
electrical codes.
Press 4 when you turn on the tester
to toggle the fault voltage between 25
V and 50 V. The value you set will
appear on the display and will be
saved when you turn the tester off.
b
Primary display and measurement
units.
c
f
g
h
Memory locations. See “Storing and
Recalling Measurements” on page 31
for detailed information on using
memory locations.
d
B
Low battery icon. See “Testing and
Replacing the Batteries” on page 35
for additional information on batteries
and power management.
e
R
Appears when you press the Recall
button and you are looking at stored
data.
f
N
Appears when you press the Memory
button.
g
S
Appears when you press the Test
button. Disappears when the test is
completed.
h
K
Appears when the instrument is
overheated. The Loop test and RCD
functions are inhibited when the
instrument is overheated.
