165XB
Users Manual
4
Operating the Tester
Using the Rotary Switch
Use the rotary switch (Figure 1 and Table 3) to select the type of test you want
to perform.
>
5
6
89
10
7
2
3
4
1
apx013f.eps

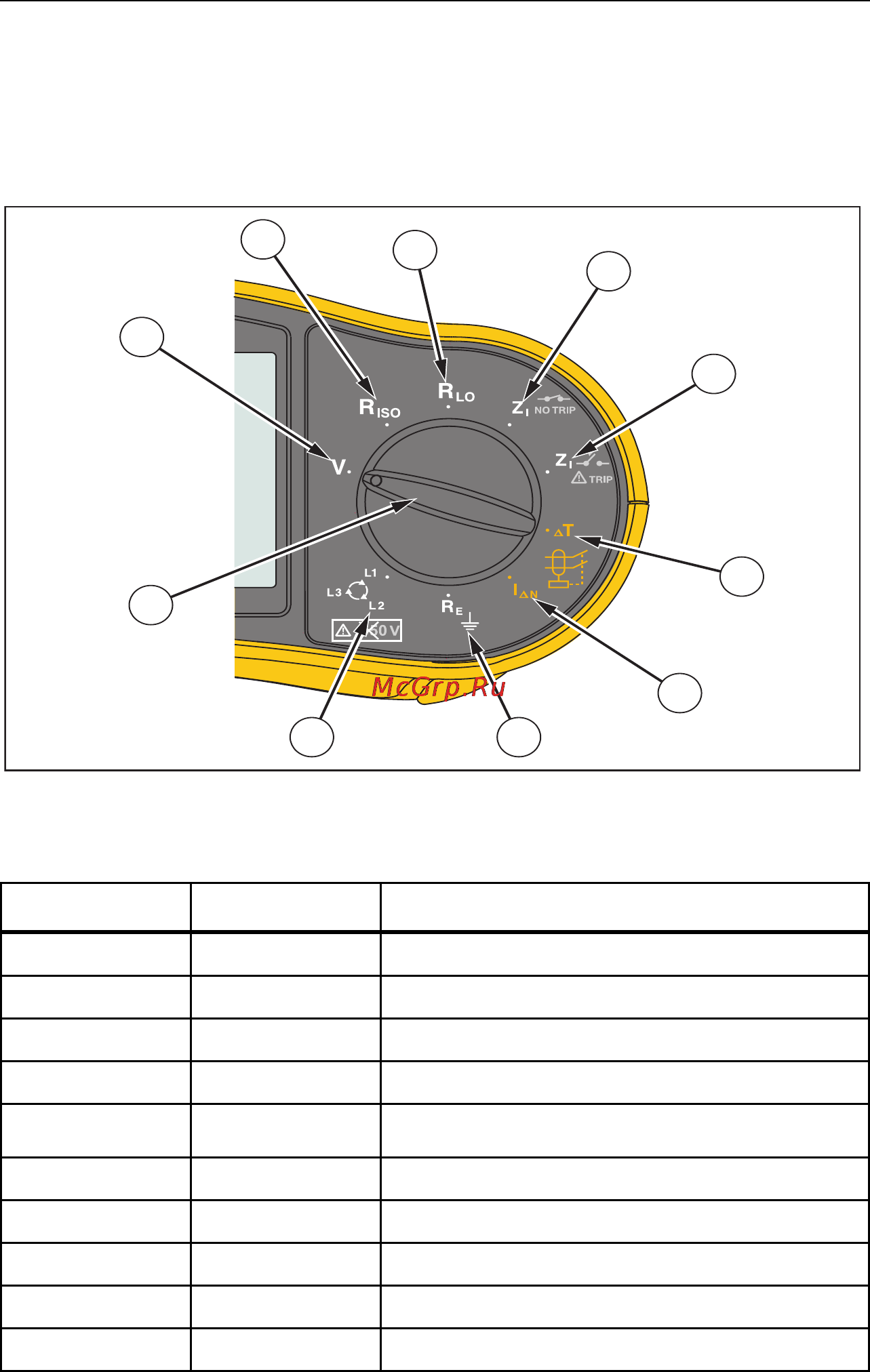

Figure 1. Rotary Switch
Table 3. Rotary Switch
Number Symbol Measurement Function
A V Volts.
B q Insulation resistance.
C p Continuity.
D y Loop impedance — No trip mode.
E
x
Loop impedance — Hi current trip mode.
F t RCD tripping time.
G j RCD tripping level.
H s Earth resistance.
I Q Phase rotation.
J N/A Rotary switch.
