165XB
Users Manual
34
Uploading Test Results (Model 1653B Only)

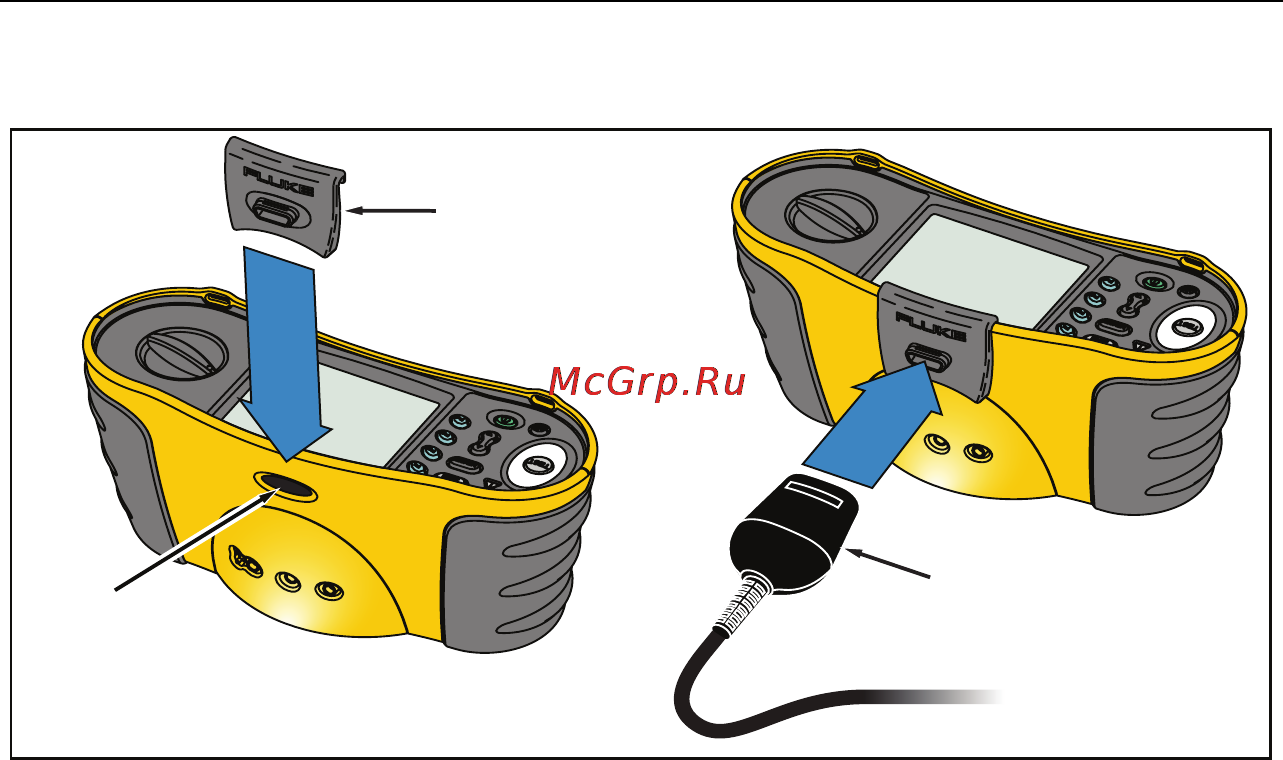

IR Adapter
IR Device
IR Port
apx031f.eps
Figure 22. Attaching the IR Adapter
To upload test results:
1. Connect the IR serial cable to the serial port on the PC.
2. Attach the IR adapter and the device to the tester as shown in Figure 22.
Be sure to align the IR adapter to the IR port on the tester.
Note
The IR data port is disabled when test leads are plugged in.
Disconnect test leads before attempting to upload test results.
3. Start the Fluke PC software program.
4. Press O to turn on the tester.
5. Refer to the software documentation for complete instructions on how to
set the date/time stamp and upload data from the tester.
Maintaining the Tester
Cleaning
Periodically wipe the case with a damp cloth and mild detergent. Do not use
abrasives or solvents.
Dirt or moisture in the terminals can affect readings.
To clean the terminals:
1. Turn the meter off and remove all test leads.
2. Shake out any dirt that may be in the terminals.
3. Soak a new swab with alcohol. Work the swab around each terminal.
