Electrical Installation Tester
Operating the Tester
7
Understanding the Display
Figure 3 and Table 5 describe the display features.
24
26
27
25
23
21
22
28
30
39
41
40
31
35
34
33
32
29
38
36
37
apx020f.eps

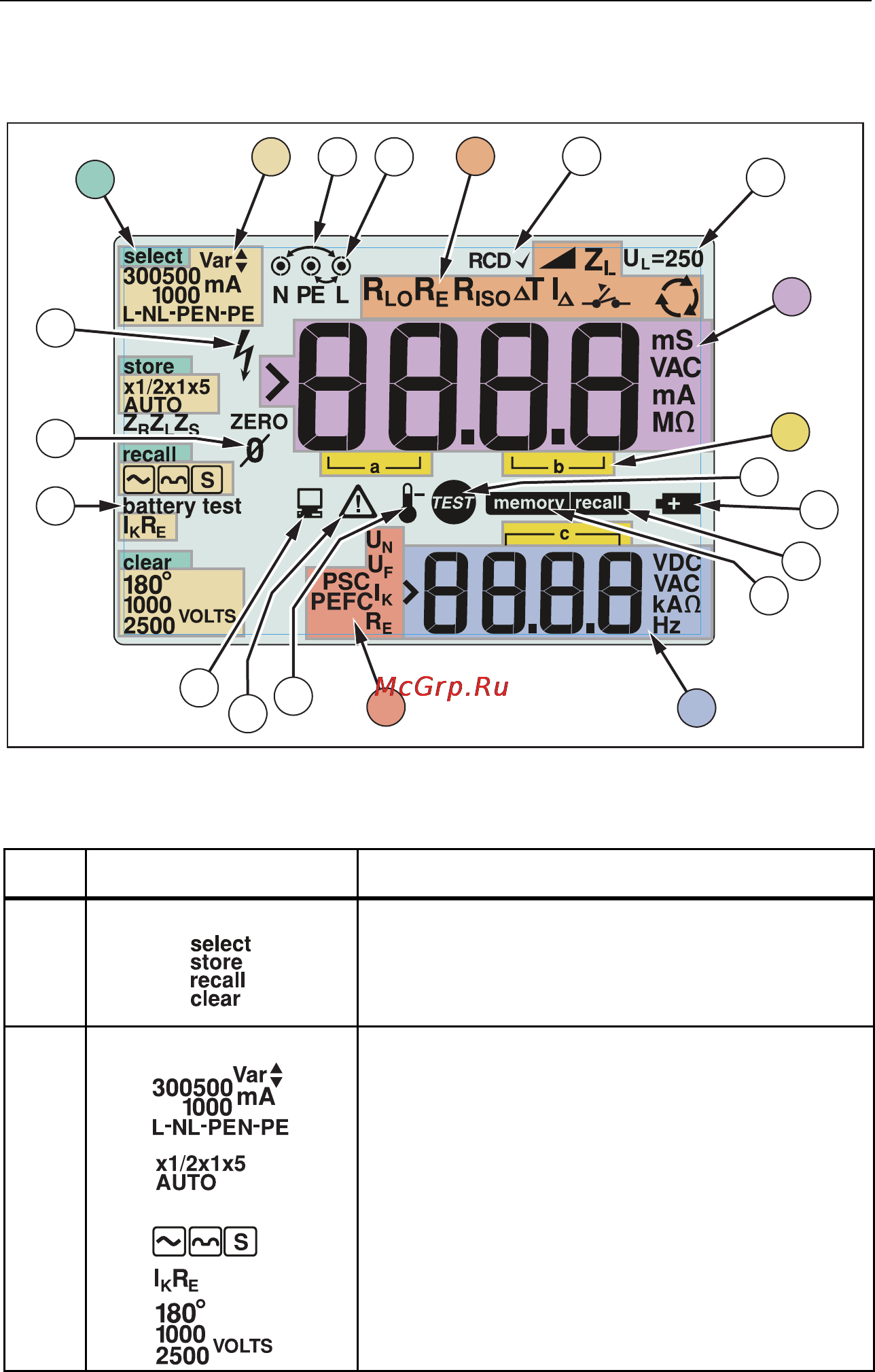

Figure 3. Display Features
Table 5. Display Features
No. Annunciator Meaning
U
Displays the selected Memory mode. Memory
modes are: Select (1), Store (2), Recall
(3), or Clear (4).
V
Configuration options. Settings you can make
within the measurement functions. For
example, in the RCD Tripping Time function
(
ΔT) you can press 2 to multiply the test
current by x1/2, x1, x5 or AUTO and you can
press 3 to select the type of RCD you are
testing.
