Fluke 1650B [13/62] Understanding the pushbuttons
![Fluke 1650B [13/62] Understanding the pushbuttons](/views2/1005005/page13/bgd.png)
Electrical Installation Tester
Operating the Tester
5
Understanding the Pushbuttons
Use the pushbuttons (Figure 2 and Table 4) to control operation of the tester,
select test results for viewing, and scroll through selected test results.
19
20
11
18
12
14
15
13
16
17
apx012f.eps

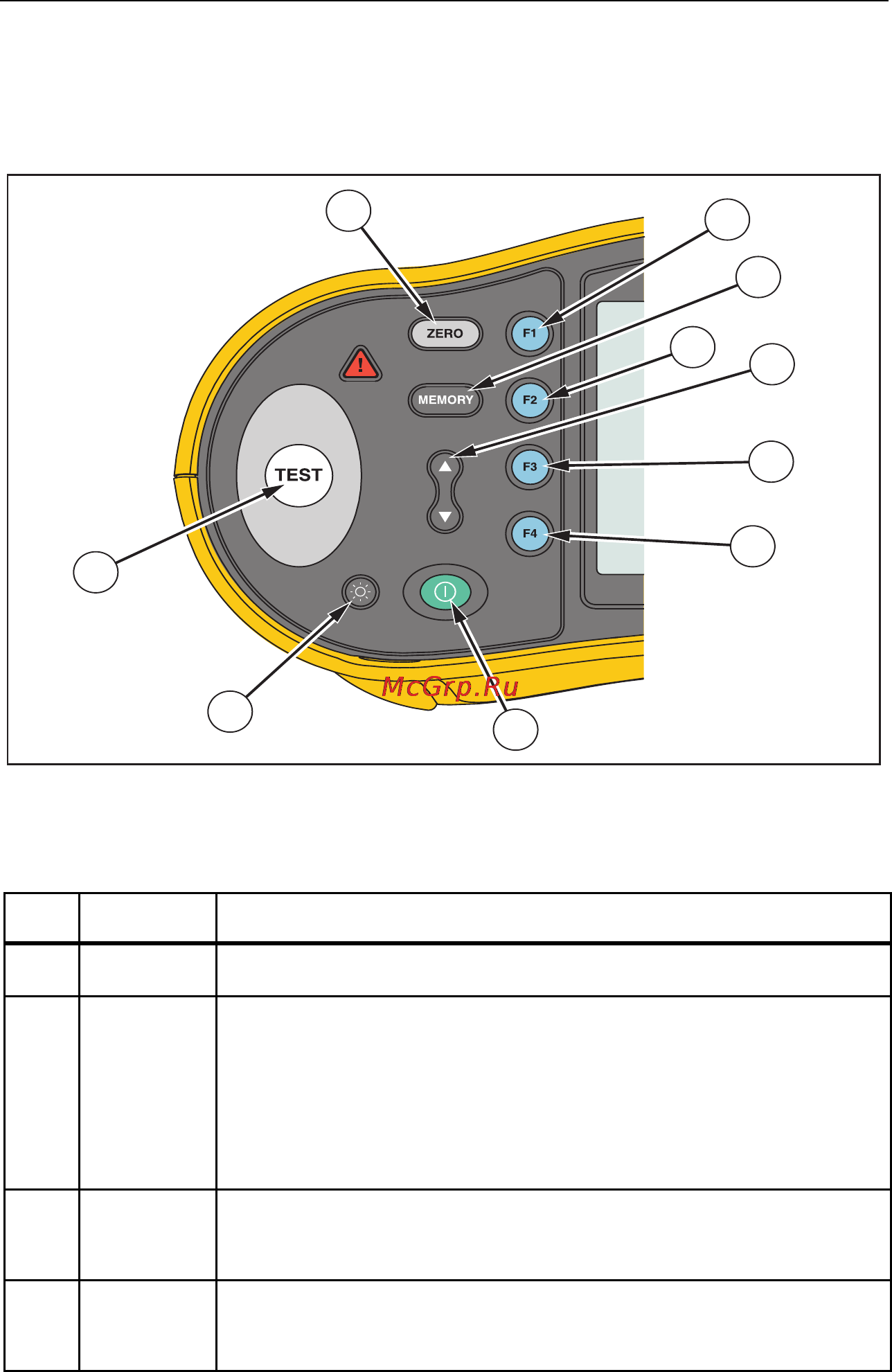

Figure 2. Pushbuttons
Table 4. Pushbuttons
No. Button Description
K Z
Zero test lead resistance offset.
L 1
• Loop input select (L-N, L-PE).
• Voltage input select (L-N, L-PE, N-PE).
• RCD current rating (10, 30, 100, 300, 500, 1000 mA or
VAR).
• Memory SELECT.
M M
• Enters Memory mode.
• Activates memory soft key selections (1, 2, 3, or 4).
N 2
• RCD Current multiplier (x1/2, x1, x5, AUTO).
• Memory STORE.
