Electrical Installation Tester
Operating the Tester
13
Error Codes

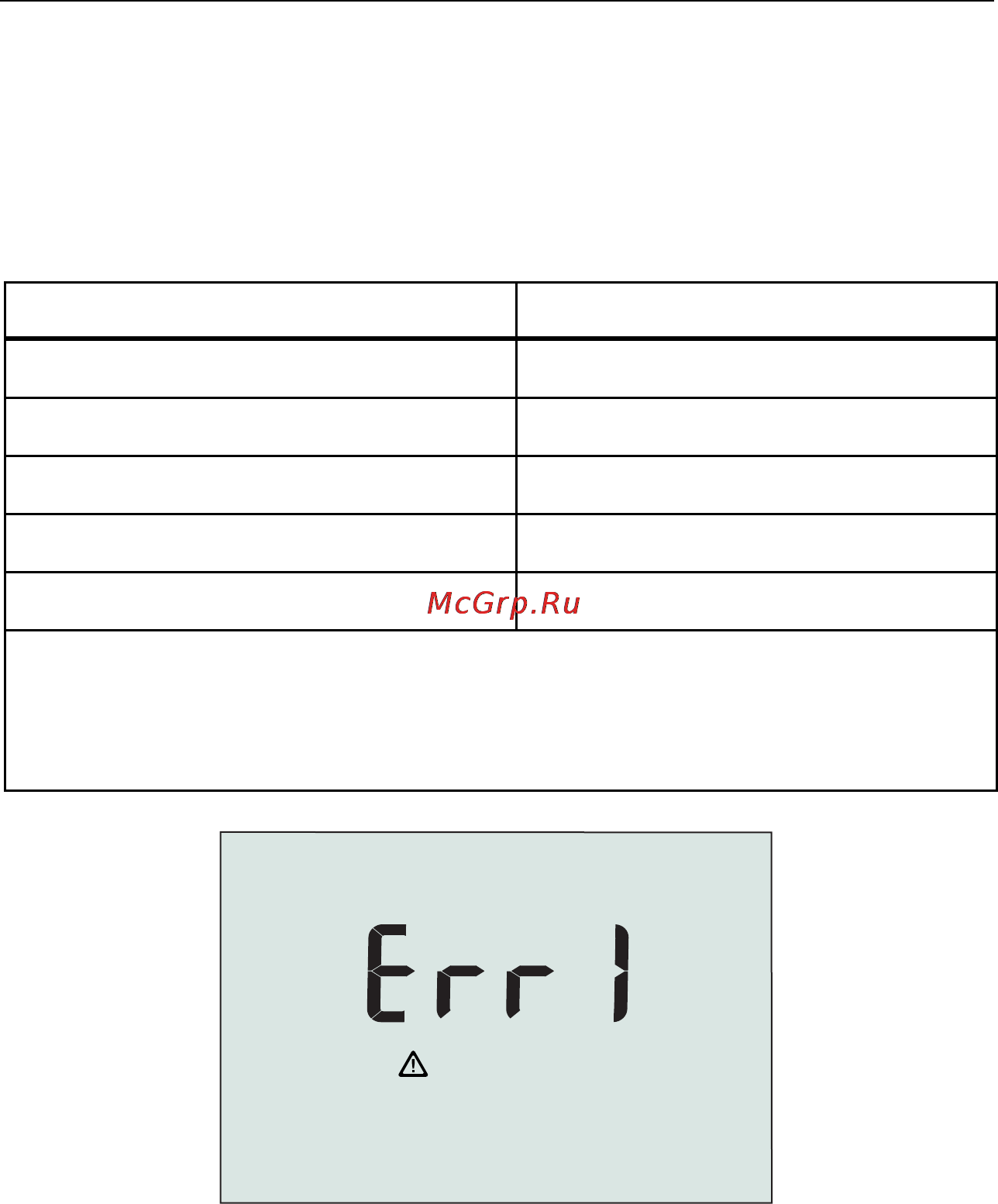

Various error conditions are detected by the tester and are indicated with the
W icon, “Err”, and an error number on the primary display. These error
conditions disable testing and, if necessary, stop a running test.
Table 6. Error Codes
Error Condition Code
Self-Test Fails 1
Over-Temp 2
Fault Voltage 4
Excessive Noise 5
Excessive Probe Resistance 6
Note
If the self-test fails, you will need to return the tester to Fluke for
service.
apx032f.eps
Figure 5. Error Display
