The Digital Controller ESIE07-05
2–20 Part 2 – Functional Description
3
1
2
4
5

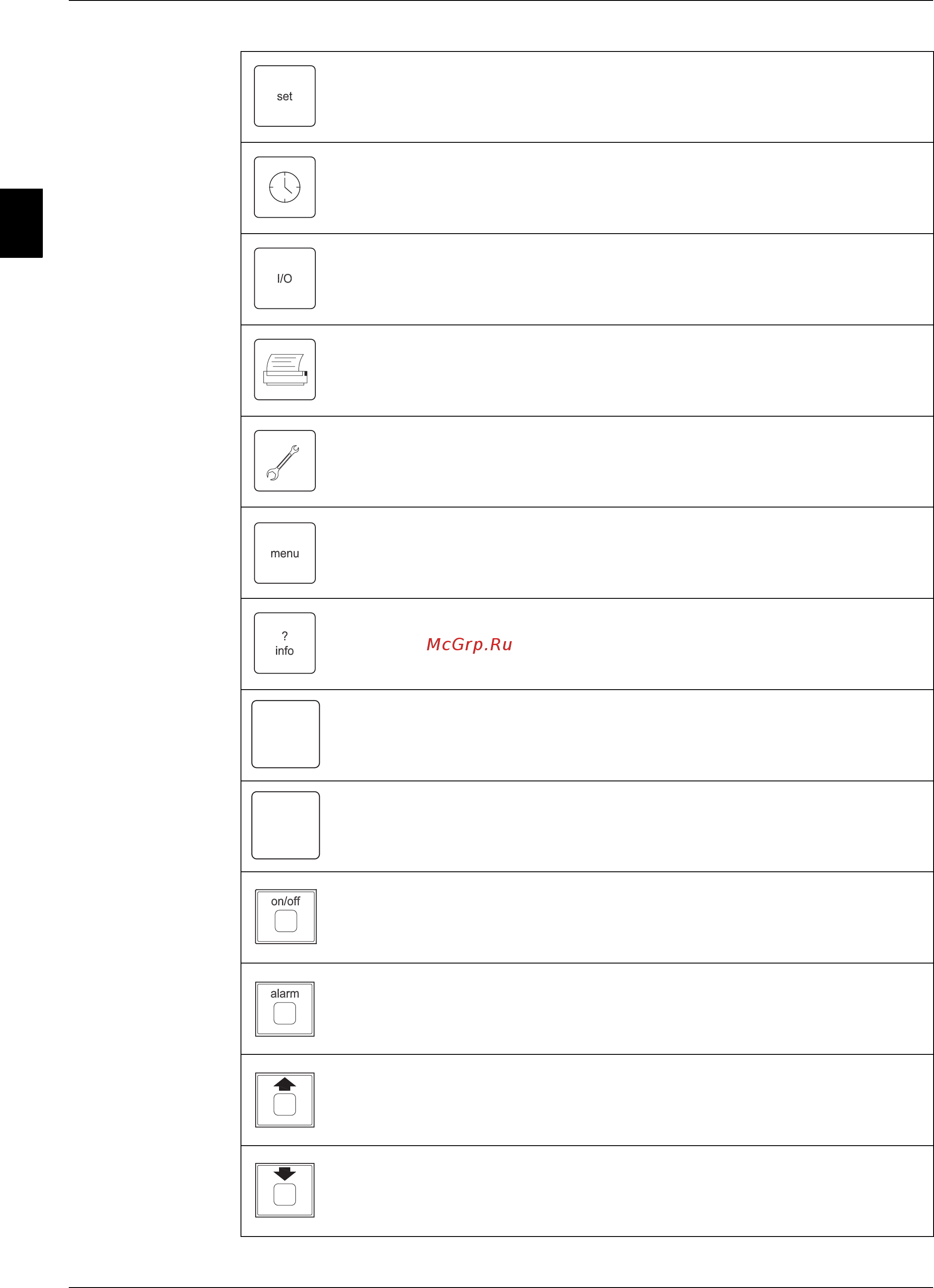

It allows to adjust the setpoints within the limits previously set in prog.
Date and time setting.
Input/Output and corresponding circuit functions visualization.
(=print)
Print (not available).
(=maint)
By the Password it is possible to access the maintenance functions.
It allows to visualize the main menu.
It allows the passage from one board to the other (visualizing parameters
of corresponding compressors).
It allows the changeover between chiller to heat pump (only if enabled).
It allows the changeover between heat pump to chiller (only if enabled).
Key On/Off unit.
It indicates the presence of possible anomalies and their causes.
(=up)
It allows the passage to the previous display screen.
(=down)
It allows the passage to the next display screen.
Y
B
ESIE07-05.book Page 20 Friday, December 21, 2007 3:21 PM
