ESIE07-05 Procedure for Software Upload/Download
Part 3 – Troubleshooting 3–9
33
4
5
1
7
8
Step Action
The file “Winload32 v3.30” is now saved on the hard
disk of your PC

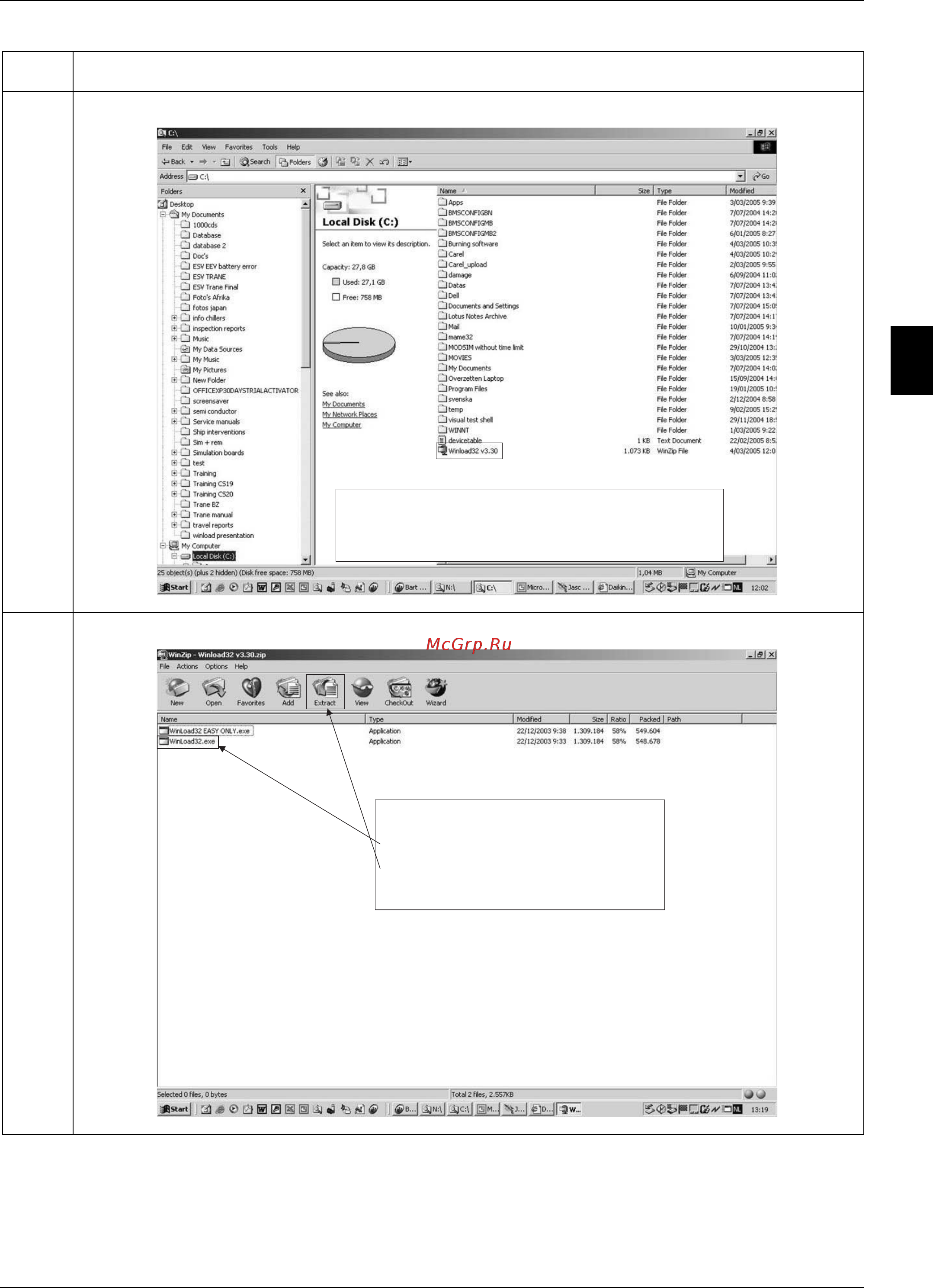

1. Double click on the file
Winzip will open :
1. Select winload32.exe
2. Press on extract
1
2
ESIE07-05.book Page 9 Friday, December 21, 2007 3:21 PM
