ESIE07-05 Functional Control
Part 2 – Functional Description 2–75
3
2
4
5
1
2.20 Pressure Safeties
2.20.1 Transducer high pressure alarm
Introduction This is a software safety function. When high pressure is near to the high pressure switch setpoint, the
unit will shutdown and trip on transducer high pressure alarm.
Function
description
■ When the pressure is above the HP setpoint, the unit will go into HP alarm.
■ When the high pressure alarm is activated and the HP sinks below HP setpoint-diff, it is possible
to reset the transducer high pressure alarm.
■ When the high pressure rises above the high pressure switch setpoint (21.5 bar), the unit will go
into alarm and a manual reset on the high pressure switch is needed.

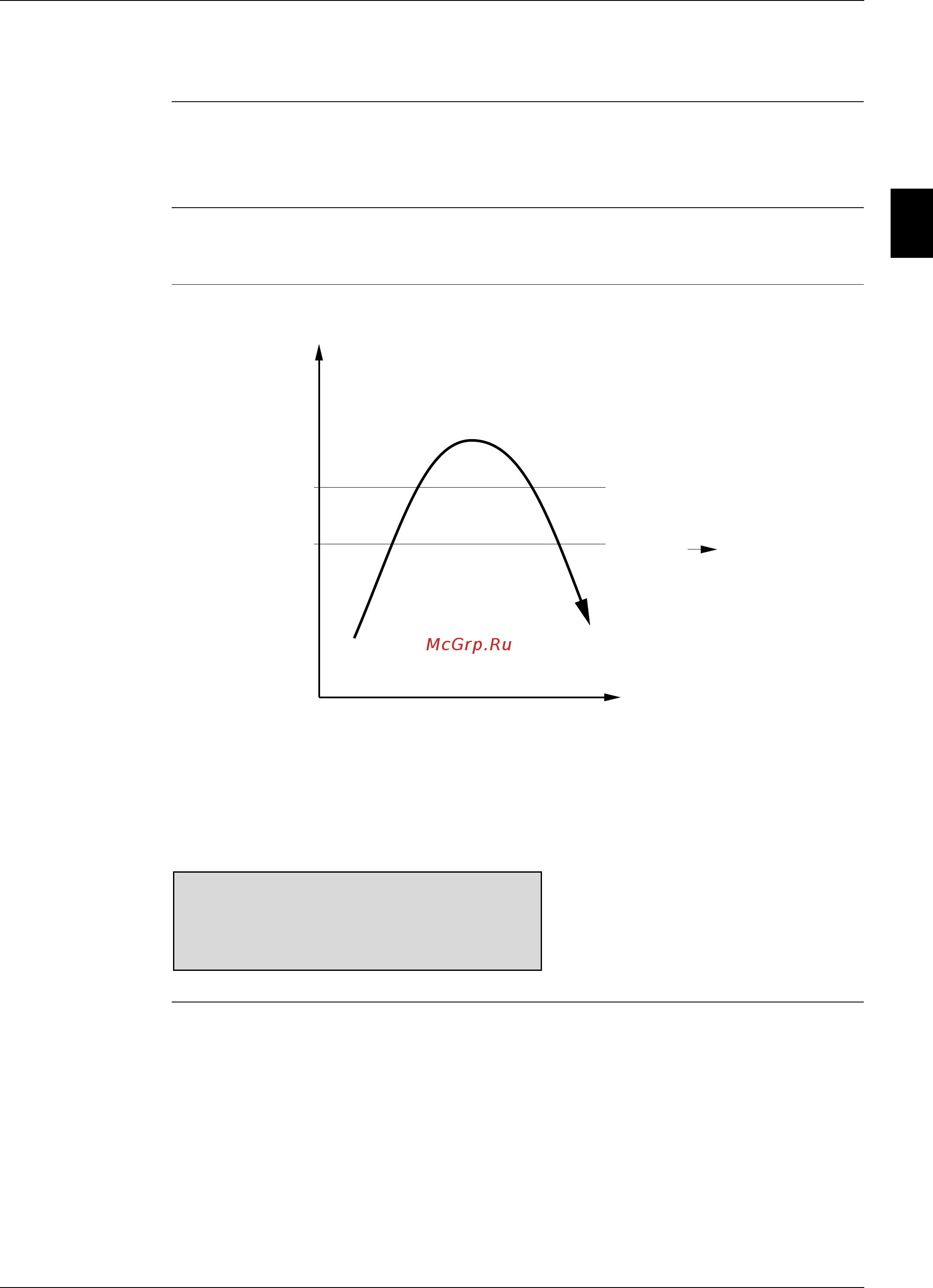

Setpoint
20.5
15.5
HP
Time
HP Alarm
If HP is below
this value
possible
to reset
Transducers High
Pressure Alarm
Setpoint
Diff.
20.5 bar
5.0 bar
