Daikin EWWQ440AJYNN/A [70/130] Liquid injection

Daikin EWWQC22AJYNN/A [70/130] Liquid injection

Functional Control ESIE07-05

2–64 Part 2 – Functional Description

2.12 Liquid Injection

Function

description

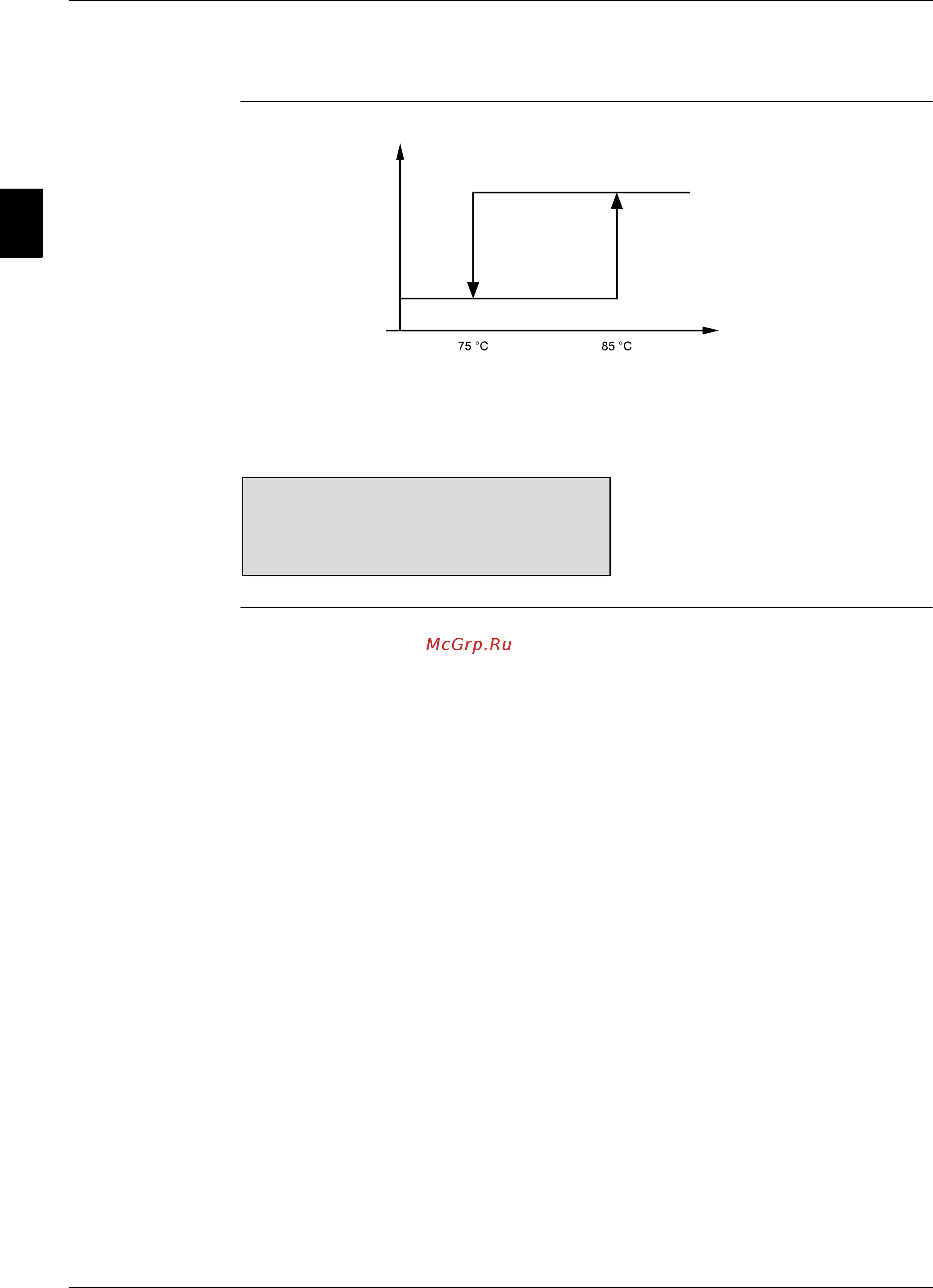

■ When the oil temperature (PT1000; del. temp.) is higher than 85°C (default) the liquid injection will

be activated.

■ When the oil temperature decreases to 75°C the liquid injection will be disabled.

Liq. Inj. OFF

Liq. Inj. ON

(del Temp.) Oil Temp.

Setpoint

Diff.

085 ˚C

10.0 ˚C

Liquid Injection

ESIE07-05.book Page 64 Friday, December 21, 2007 3:21 PM
