Procedure for Software Upload/Download ESIE07-05
3–8 Part 3 – Troubleshooting
3
1
3
4
5
5
6
Step Action

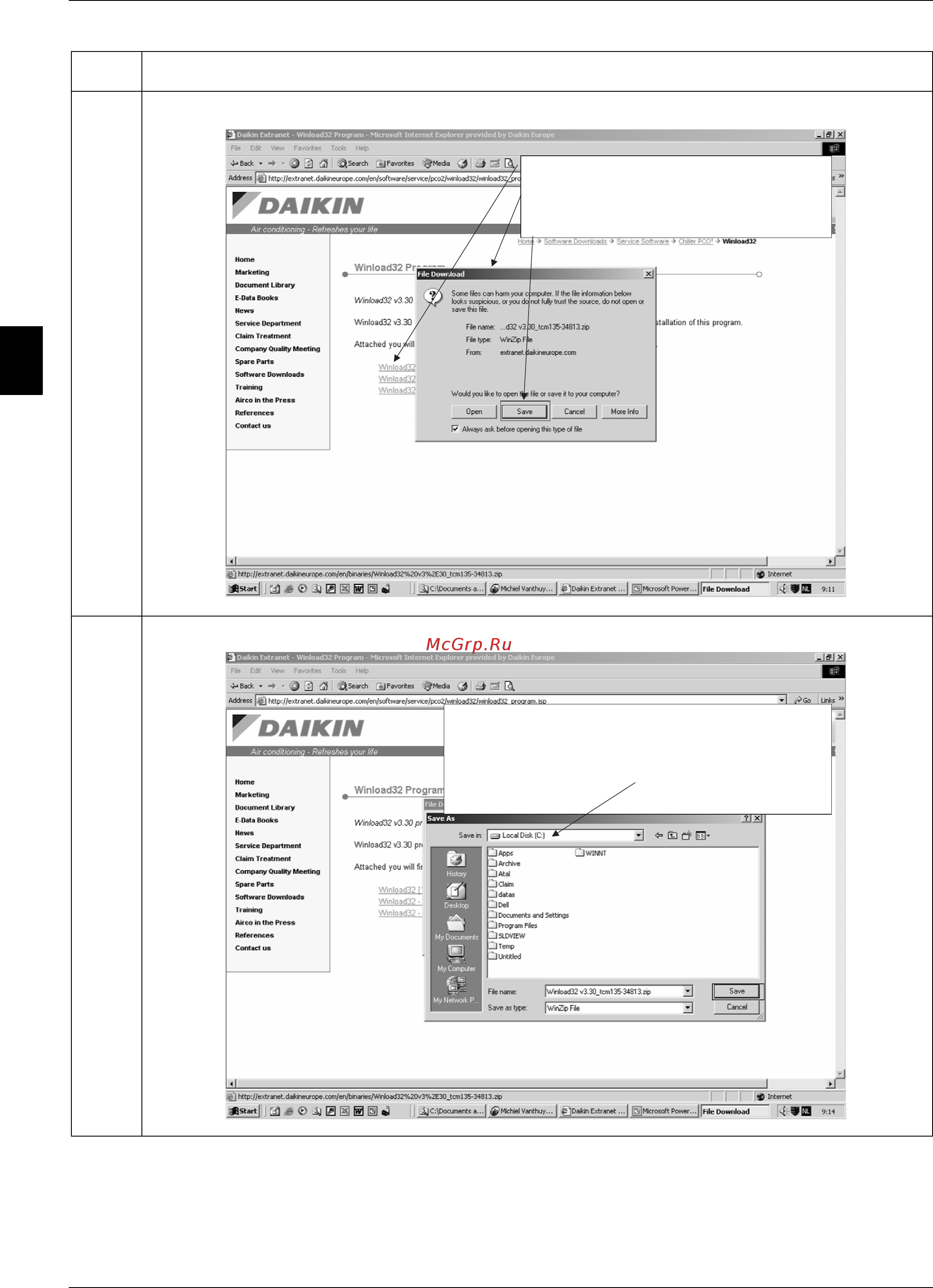

1. Click on winload32 to download the file
2. “file download” screen will appear
3. Click on save
Download the file to your hard disk
1. Browse to the place were you want to save the file
Example: save on C-drive
2. Press save
1
2
ESIE07-05.book Page 8 Friday, December 21, 2007 3:21 PM
