SiBE311209 Troubleshooting by Indication on the Remote Controller
Service Diagnosis 292
4.51 Transmission Error between Main and Sub Remote
Controllers
Remote
Controller
Display
U8
Applicable
Models
All indoor unit models
Method of Error
Detection
In case of controlling with 2-remote controller, check the system using micro-computer if signal
transmission between indoor unit and remote controller (main and sub) is normal.
Error Decision
Conditions
Normal transmission does not continue for specified period.
Supposed
Causes
Transmission error between main and sub remote controller
Connection between sub remote controllers
Defective remote controller PCB

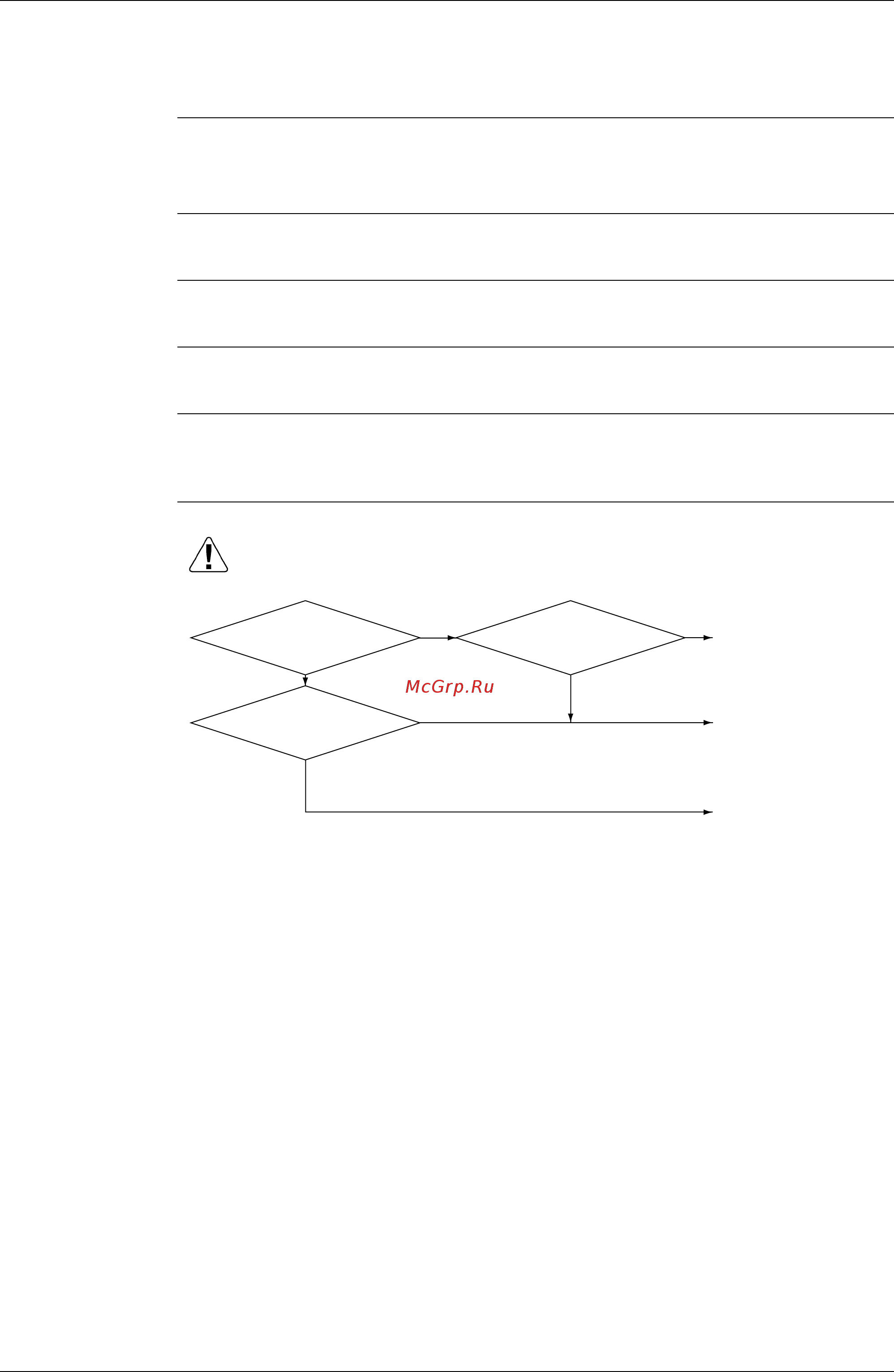

Troubleshooting
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.
Set SS1 to "MAIN"; the
power supply OFF once
and then restart.
YES
Using 2-remote
controllers control.
NO
NO
YES
YES
NO
SS1 of both remote
controllers is set to
"SUB."
SS1 of remote
controller PCBs is
set to "MAIN."
Turn the power OFF and
then restart. If an error
occurs, replace the remote
controller PCB.
Set one remote controller
to "MAIN"; the power
supply OFF once and then
restart.
