PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
109 of 126

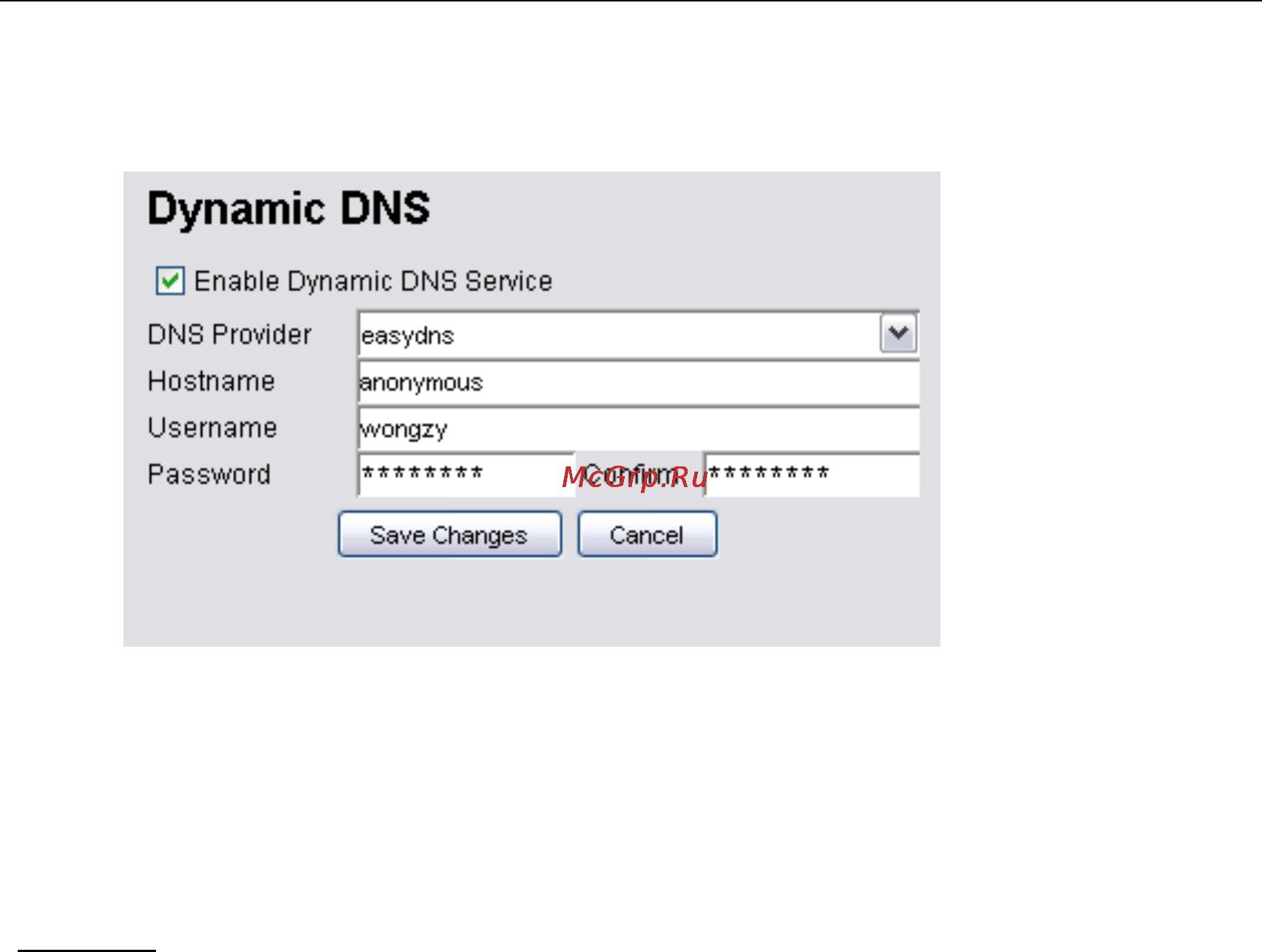

5.3.2.9 Services > Dynamic DNS
The Dynamic DNS feature of the Mesh AP unit provides the ability to assign and tie the
domain name to a dynamic IP Address. Hence, management from the other site of the
network is able to connect to the device without tracing its IP Address. The page is used to
configure the Dynamic DNS settings.
Parameter
1) Enable Dynamic DNS Service
• A checkbox to enable or disable the feature of A checkbox to enable or
disable the feature of Dynamic DNS
2) DNS Provider
• Select the dynamic DNS provider
• Available options: dyndns, easydns, no-ip, zoneedit, tzo
3) Hostname
• The hostname associated with the service provider
• Data type: Display String
4) Username
• The username for the dynamic DNS service
• Data type: Display String
5) Password
• The password for the username above
• Data type: Display String
