3) Interval
• The checking interval of the route watch dog, in seconds
• Data Type: Integer, in the range of 10 to 60
• Default value: 30
5.3.2.13 Services -> System Watch Dog (MAP-3100 only)
The Linux kernel watchdog is intended to monitor the integrity of the system periodically. In
case if there is any error occurs, the watch dog would trigger a system reboot in order to
prevent the system from failure.

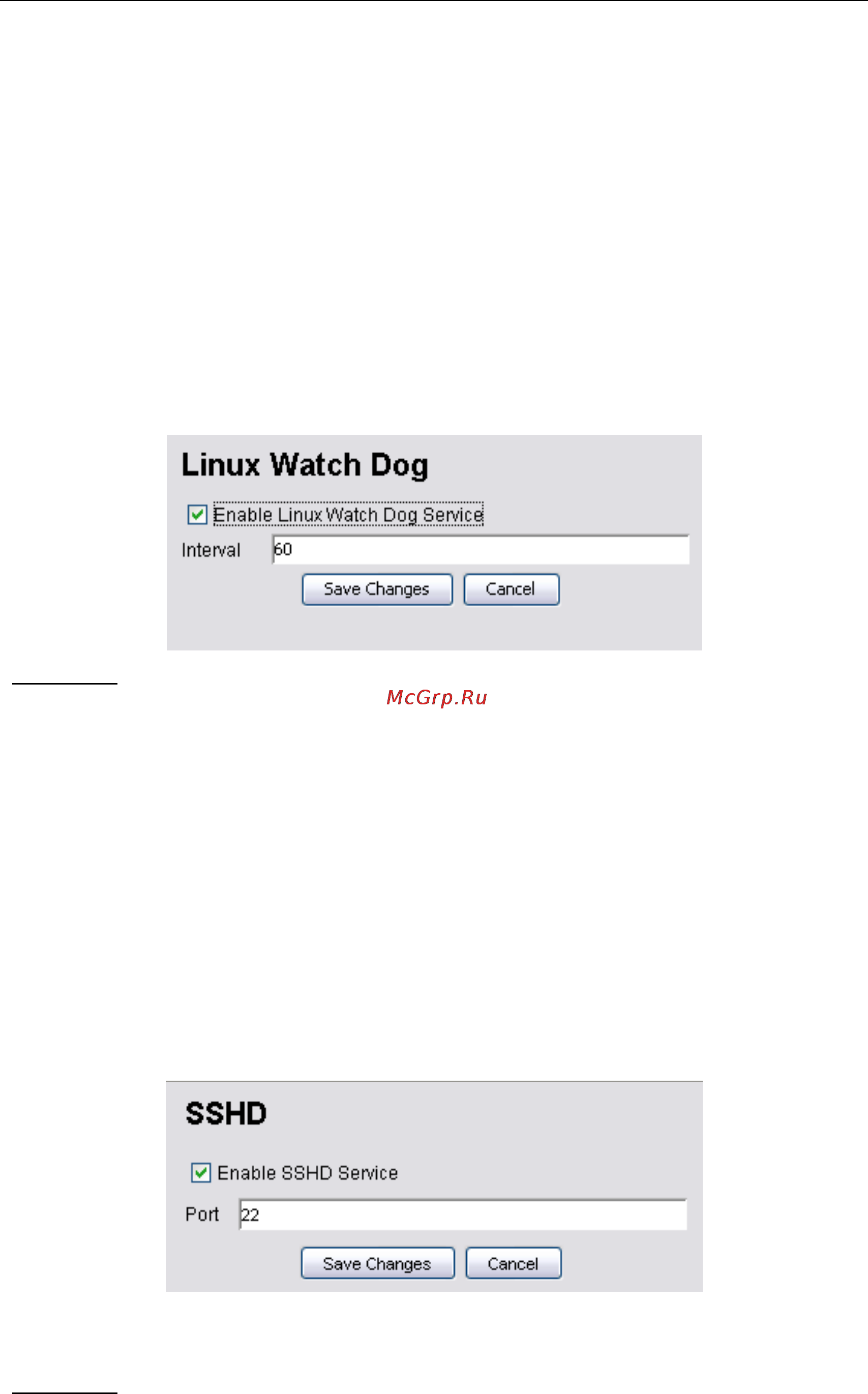

Parameters
1) Enable Linux Watch Dog Service
• A checkbox to enable or disable the route watchdog service of the Mesh AP
unit
2) Interval
• The checking interval of the linux kernel watch dog, in seconds
• Data Type: Integer, in the range of 10 to 60 seconds
• Default value: 60
5.3.2.14 Services -> SSHD
At this page user will configure the SSH feature of the device.
Parameters
1) Enable SSHD Service
• A checkbox to enable or disable the SSH service of the Mesh AP unit
