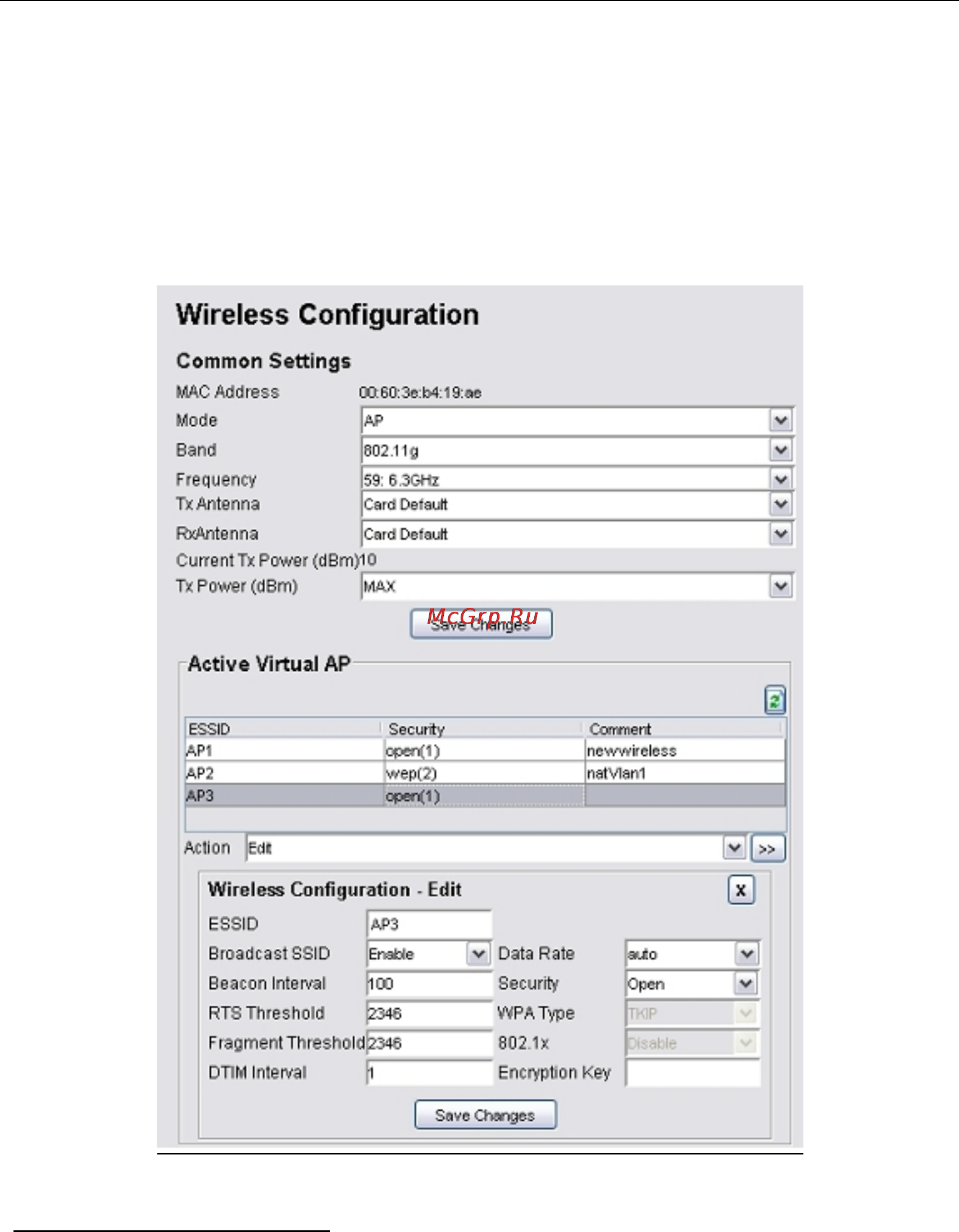

5.3.1.7 Network > Wireless Configuration
The upper portion of the Wireless Configuration page is displaying the common settings of all
the wireless interfaces. The parameters here will be applied to all the VAP. The table in the
page is showing the list of virtual APs. User can only edit the information in the table.
Parameters (Common Settings)
1) MAC Address
• The Mac Address of the Wireless interface
• This is a read-only parameter
2) Mode
• The Mode is fixed to AP
