PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
110 of 126

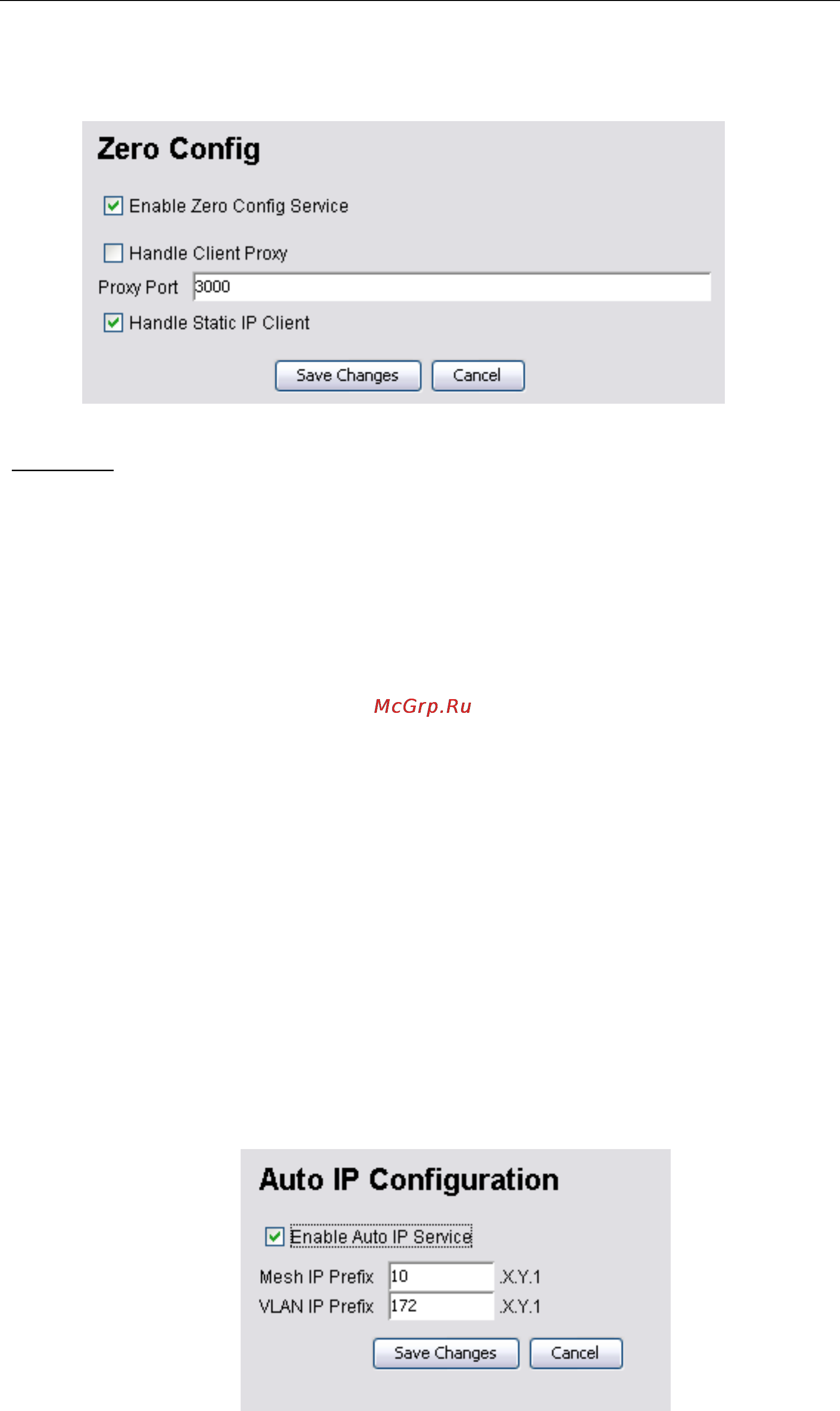

5.3.2.10 Services > Zero Config (MAP-3100 only)
Parameters
1) Enable Zero Config Service
• A checkbox to enable or disable the Zero Config service of the Mesh AP
2) Handle Client Proxy
• A checkbox to enable or disable the feature to handle client proxy
3) Proxy Port
• The port used in proxy login
• Data type: Integer, default value is 3001
• Data range: 1000 ~ 65535
4) Handle Static IP Client
• A checkbox to enable or disable the feature to handle static IP client
5.3.2.11 Services > Auto IP (MAP-3100 only)
The Auto IP Service of the system will assign a unique IP Address to the system. Upon the
successful assignment, a Mesh IP Address and VLAN0 IP Address will be provided. As a
result, the DHCPD settings will be altered to match with the VLAN0 IP.
