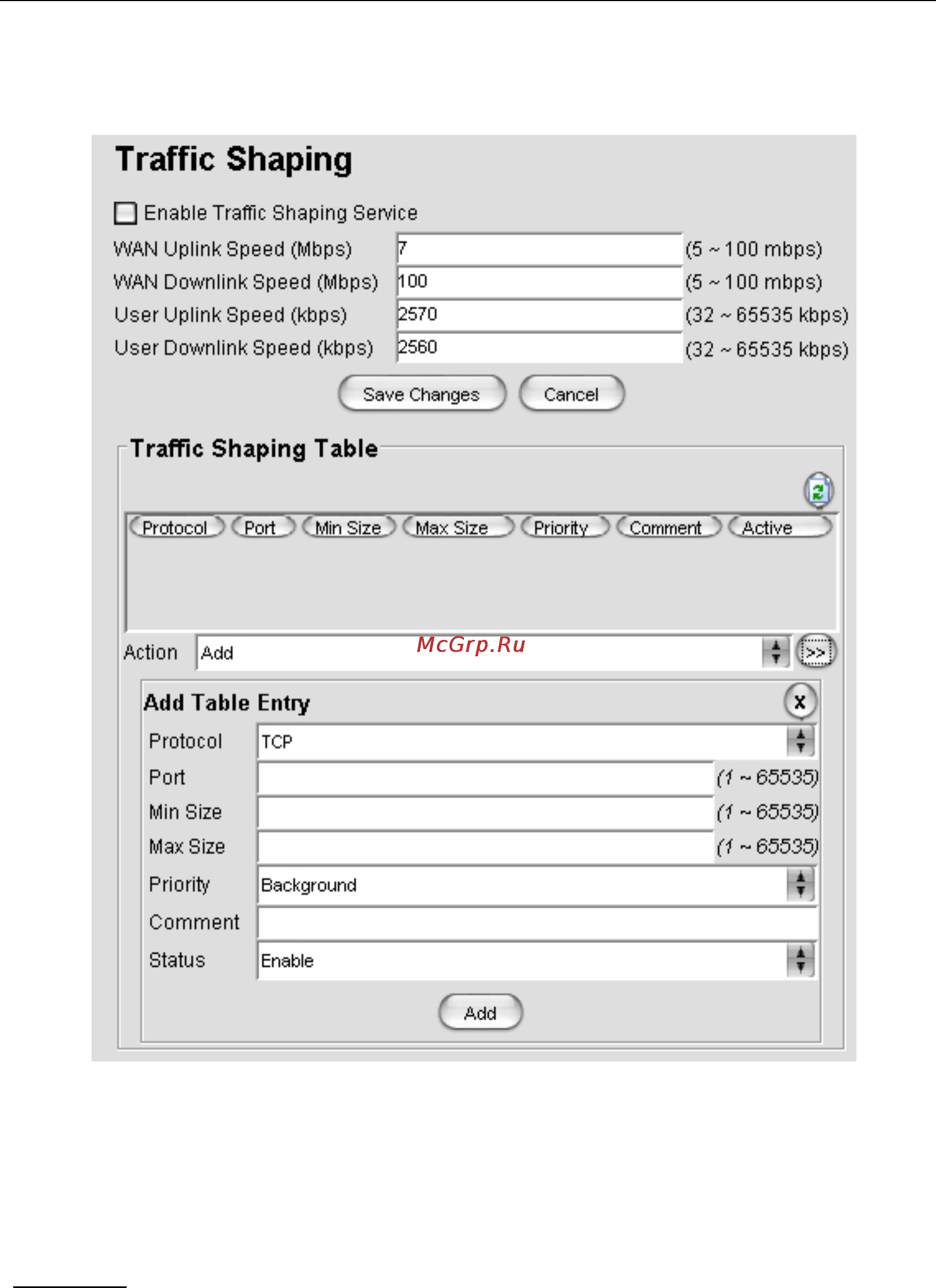

5.3.2.4 Services > Traffic Shaping (MAP-3100 only)
User can set the download and upload speed at the Traffic Shaping configuration page in
order to alter the network performance. The Traffic Shaping Table defines the traffic volume
for a port with a specified protocol.
Parameters
1) Enable Traffic Shaping service
• A checkbox to enable or disable the Traffic Shaping service on the Mesh AP
2) WAN Uplink Speed
• Define the upload speed of the WAN interface
• Data type: Integer, in the range of 5 and 100 Mbps
