PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
98 of 126
4) Comment
• An optional comment regarding the selected table entry
• Data type: Display String
5) Active
• The status of the selected table entry, either active or inactive
5.3.2.3 Services > Firewall (MAP-3100 only)

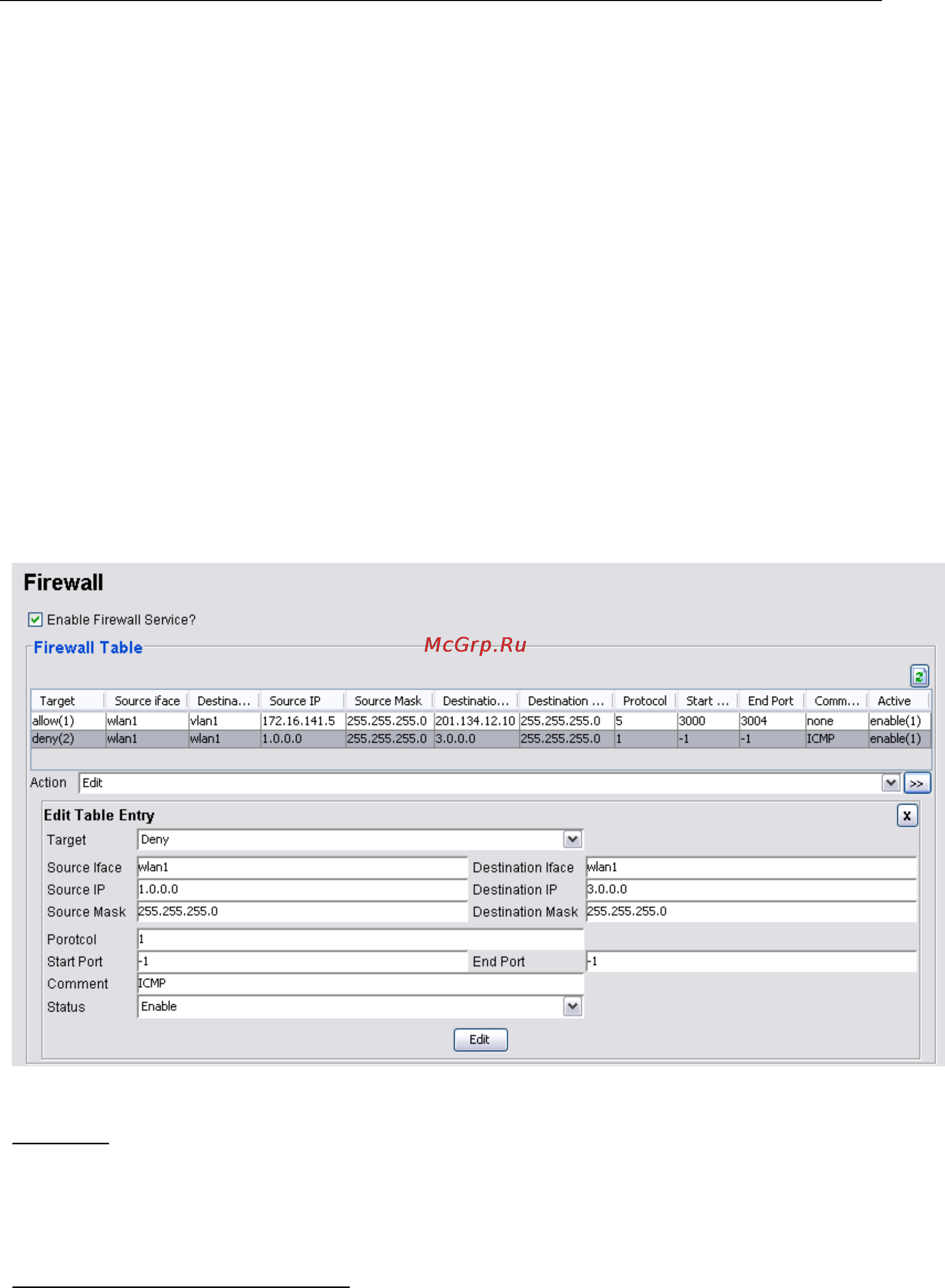

The Firewall service is the security feature that included in the Mesh AP to limit certain type of
traffic. User can define and add a firewall rule through this configuration page.
Parameter
1) Enable Firewall Service
• A checkbox to enable or disable the firewall service
Parameters (Firewall Table columns)
1) Target
• Define the type of the firewall rule, allow or deny the traffic
