PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
32 of 126

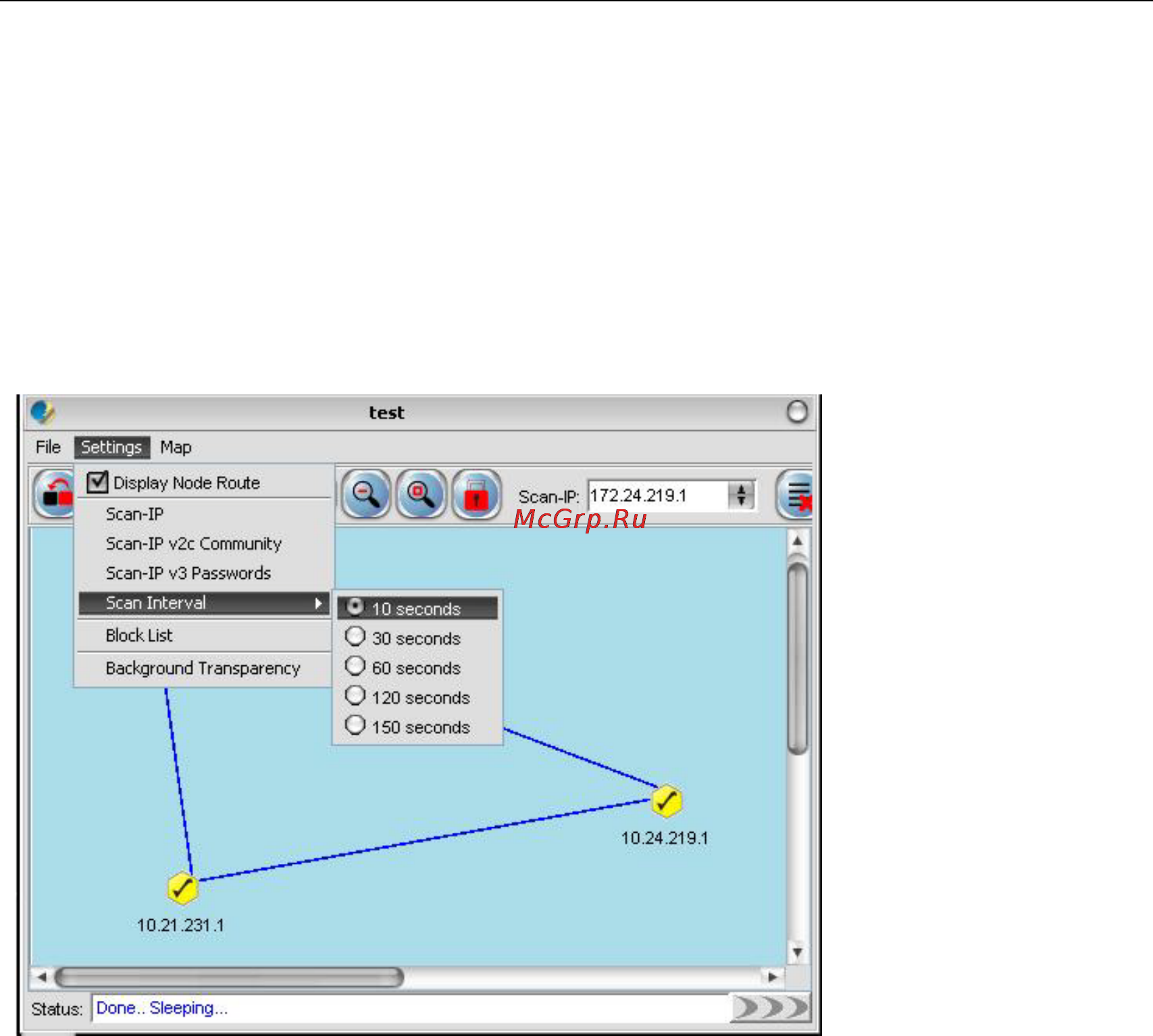

10 seconds
30 seconds
60 seconds
120 seconds
150 seconds
The changes will take effect immediately.
4.2.3.13 Import Background Image
User can change the background of the topology map by import any desired image file from
other resource. Click on the Import Background Image button, or select File > Import
Background from the map container’s menu bar. A file chooser window would appear, to
prompt user for the image file that wished to import.
