PLANET Mesh Network Manager Guide
PLANET Mesh Network Manager Guide
Page
8 of 126
3 Utility Installation and Un-installation
3.1 Installation
Insert the bundled CD into the CD-ROM drive to launch the auto run program. Once
completed, a menu screen will appear. Click the “PLANET Mesh Network Manager v_2.8.7”
hyperlink and select “Open” or “Run” to initiate the install wizard.

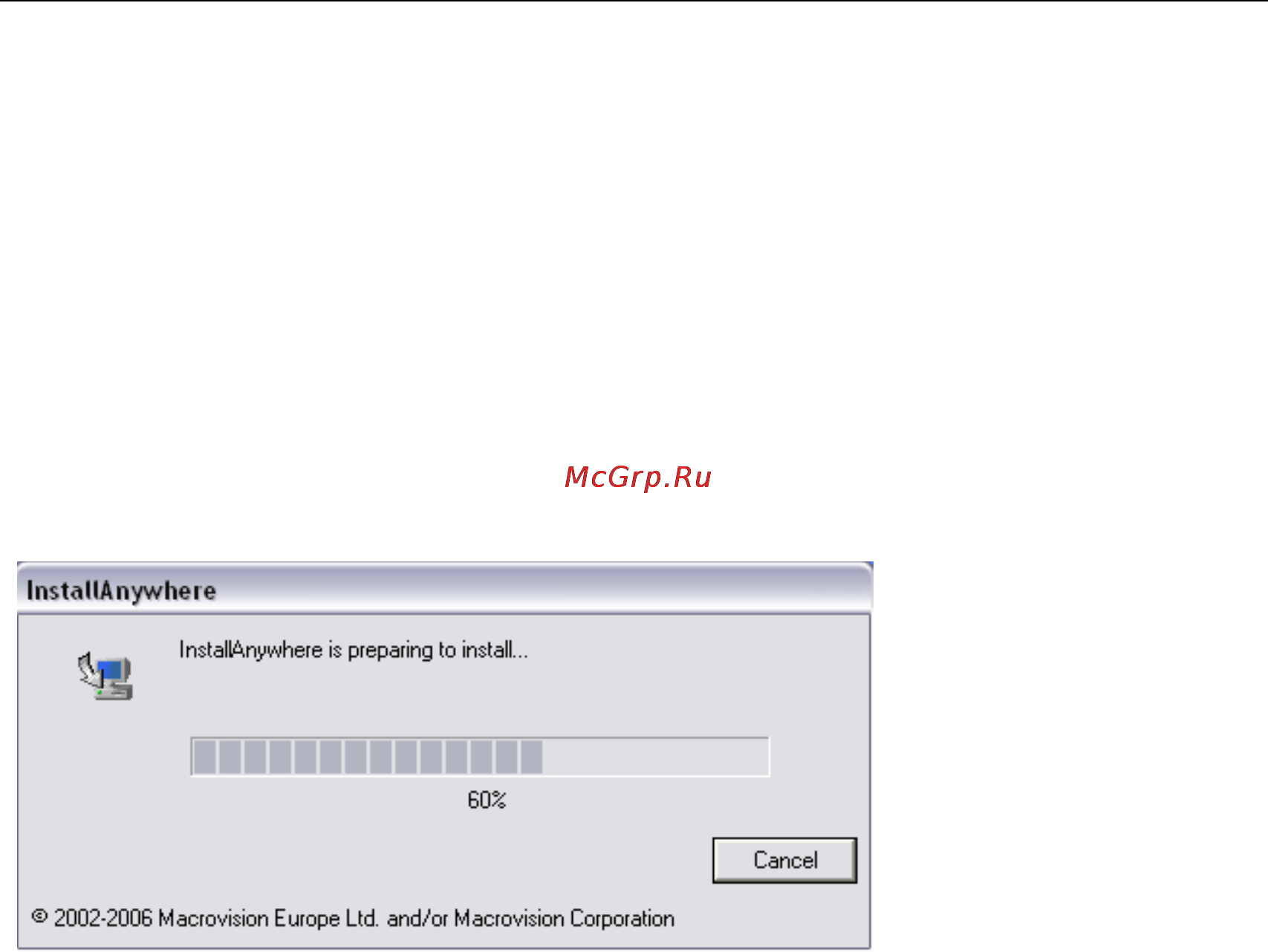

After the wizard completes preparation, follow the 6 easy steps directed by the wizard to
perform the installation.
